Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1986
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body & Chassis Wiring Circuit
Complete Body & Chassis Wiring Circuit

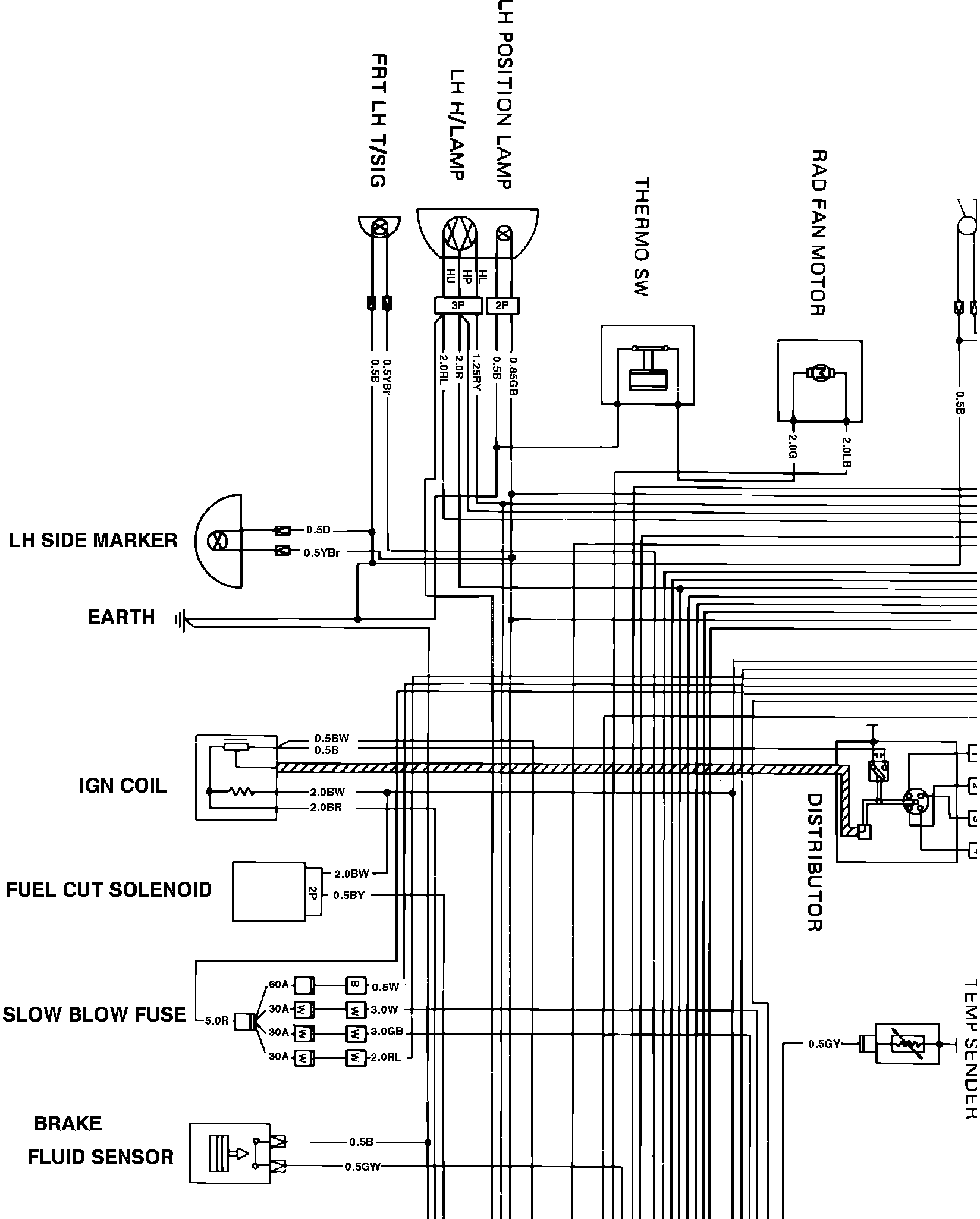

-�Ty��Ty:*UyV9Uy dUy7�Uy��UyFig. 2h Complete Body & Chassis Wiring Circuit. (Part 8 of 8):
