Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
Turn Signals

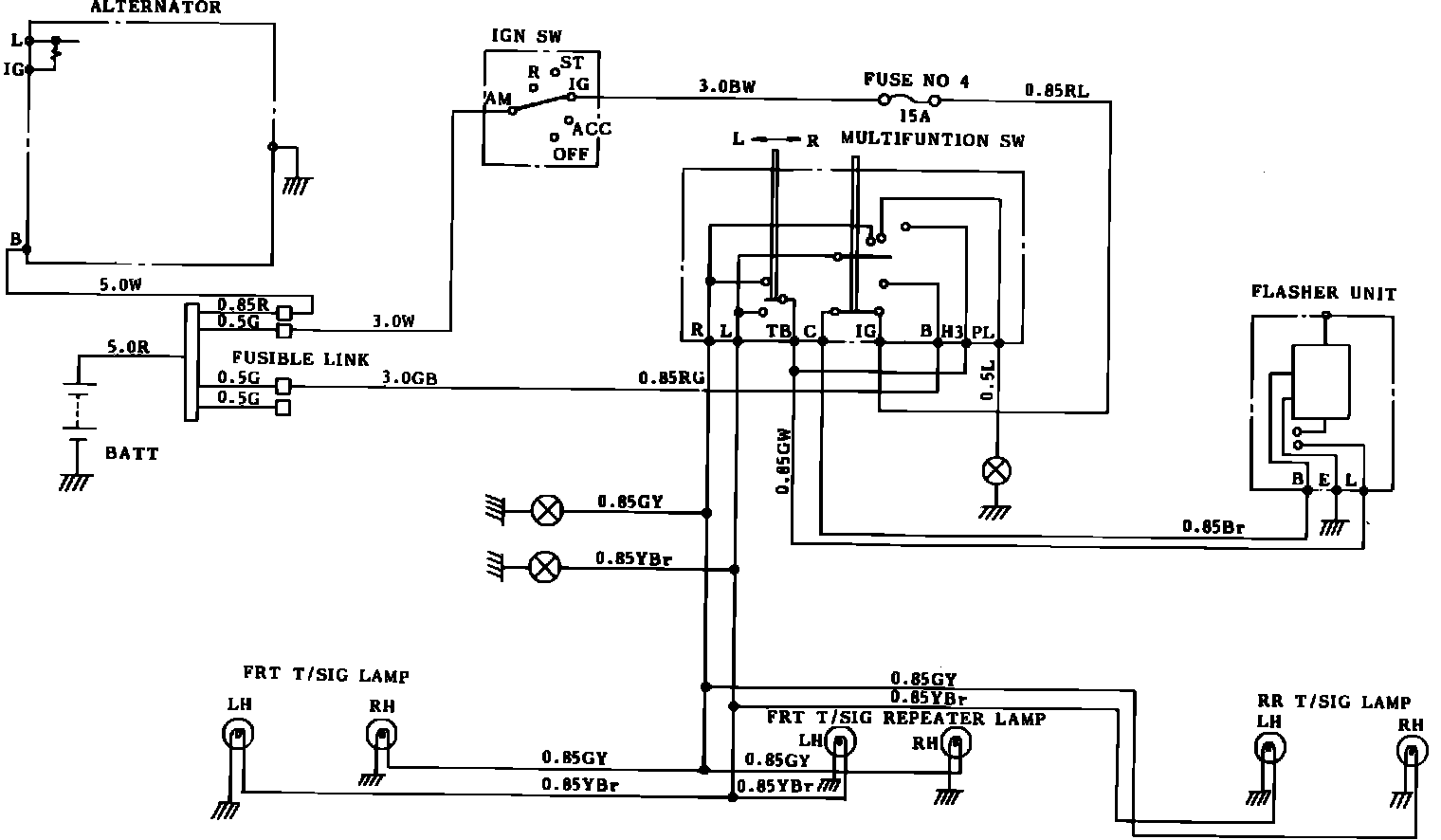

Turn Signal & Hazard Warning Systems Wiring Circuit:
