Side Marker Lamp - Seal Thickness Increased
86hyundai01Group: ELECTRICAL
Number: 006 REVISED
Date: SEPTEMBER, 1986
Model: EXCEL
SIDE MARKER LAMP SEAL
This bulletin revises Electrical 006; Date 8/86.

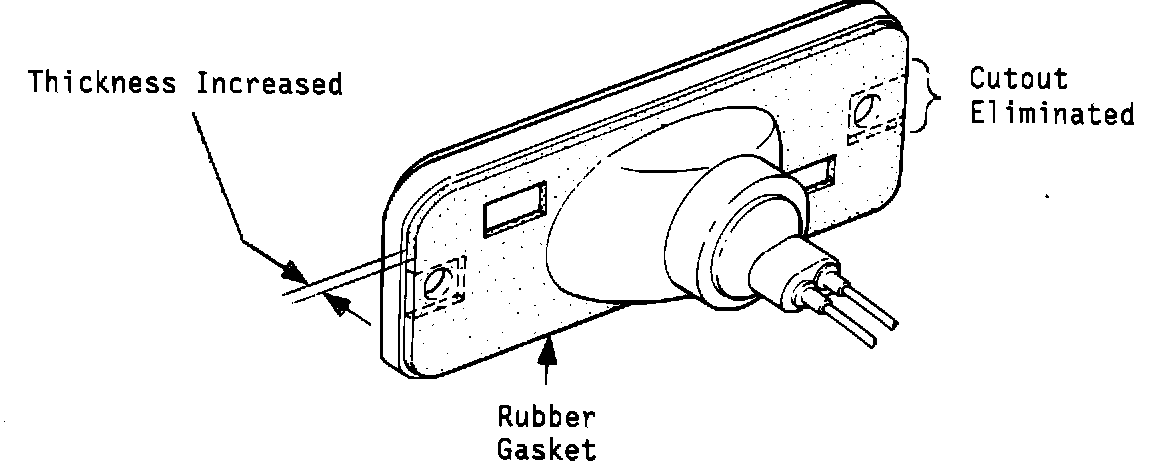

To improve its sealing effectiveness, the gasket thickness for the sidemarker lamp has been increased from 2 mm to 3 mm as illustrated below. Additionally, the attaching screw cutouts in the gasket have been eliminated.
Production Change Effective
Date VIN
5/19/86 KMHLAXXJXGU091609
5/19/86 KMHLDXXJXGU000848
5/19/86 KMHLFXXJXGU062546
Part Number Information
Part Name Old Part Number New Part Number
Lamp Assy Side Marker, LH 92307-21050 92307-21551
Lamp Assy Side Marker, RH 92308-21050 92308-21551
Interchangeability
Code A Old <--- New
