A/C - Auxiliary Wiring Harness Routing Diagram
86hyundai01Group: ELECTRICAL
Number: 009
Date: AUGUST 1986
Model: EXCEL
Subject
A/C WIRING HARNESS

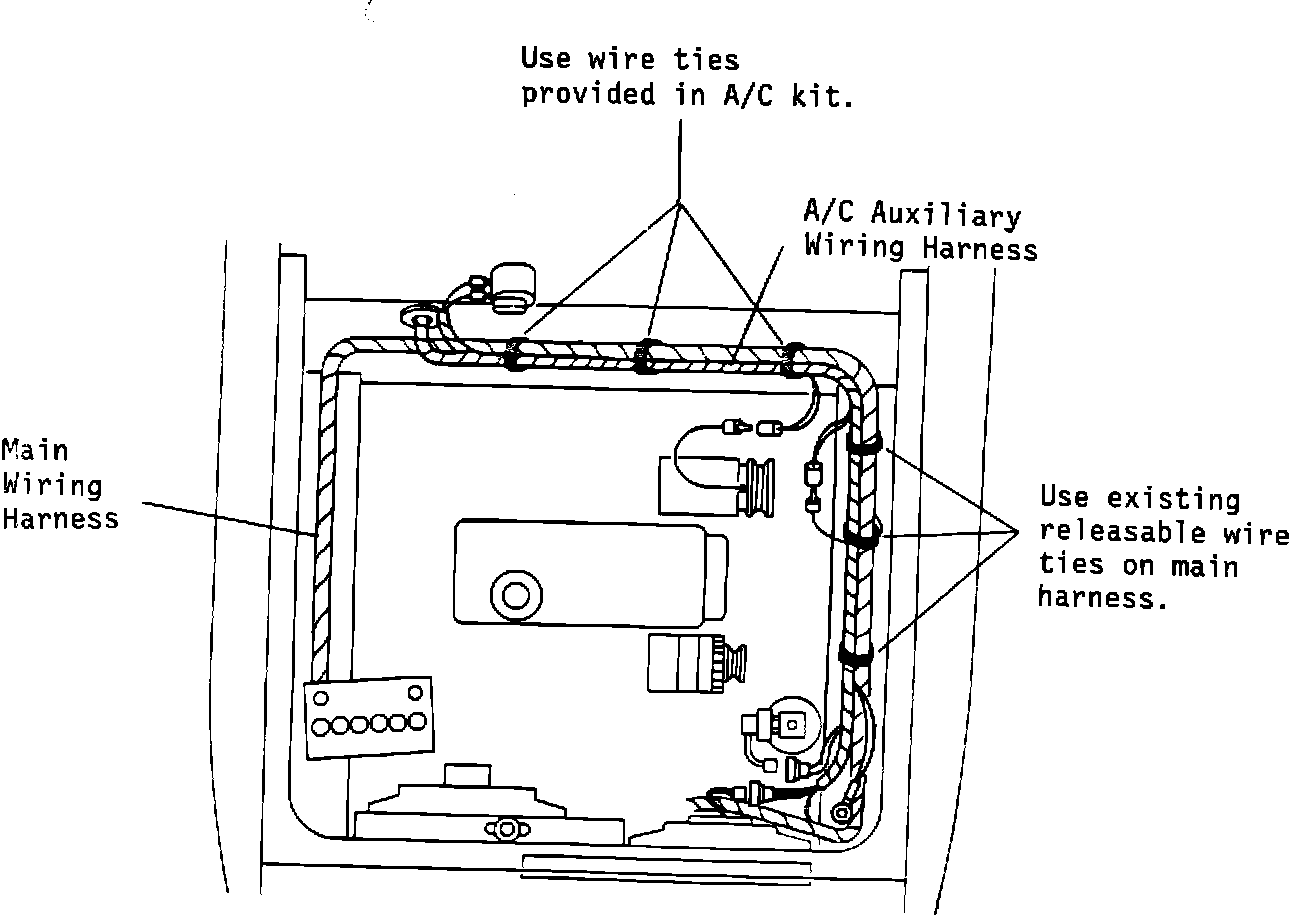

When installing the Excel air conditioning kit it is important to properly route and secure its auxiliary wiring harness. The attached diagram illustrates the recommended routing and tie down points. It is important to keep the harness away from any objects that may cause abrasion to its insulating covering as this can result in electrical shorts and serious damage to the air conditioning system and or the vehicle.
