Carburetor - Solenoid Valves Modified
86hyundai01Group: ENGINE
Number: 005
Date: OCTOBER, 1986
Model: EXCEL
Subject
CARBURETOR SOLENOID VALVES

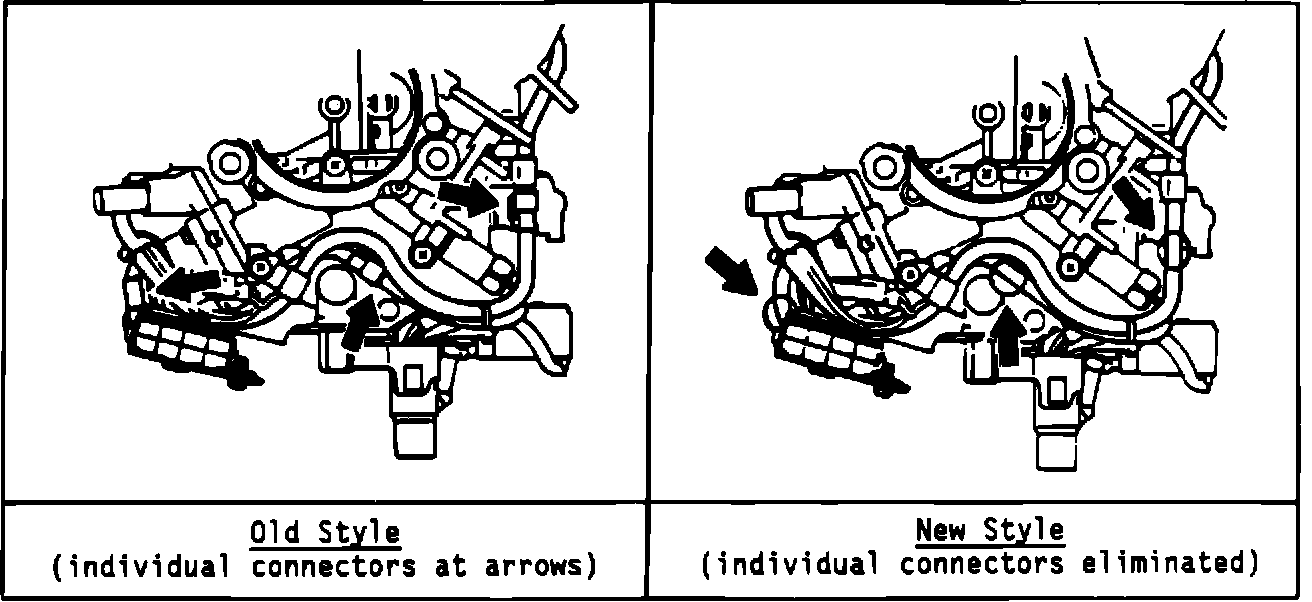

To improve durability and resistance to corrosion, the solenoid valves (DSV-ESV-JSV) have been modified. Previously, each solenoid valve had an individual connector which was connected to the leads from the main carburetor connector. With the new style solenoid valves, each valve is directly connected to the main carburetor connector.
Production Change Information
Date VIN
6/2/86 KMHLAXXJXGU096302
KMHLDXXJXGU004254 KMHLFXXJXGU069597
Part Number Information
Part Name Old Part Number New Part Number
DSV 32673-21300 32673-21301
ESV 32674-21300 32674-21301
JSV 32672-21300 32672-21301
Connector 32675-21300 32675-21301
Interchangeability
Code Y (as a set) Old <---> New
