Door Light Switch - Modification
86hyundai01Group: ELECTRICAL
Number: 002
Date: MAY 1986
Model: EXCEL
Subject
DOOR LIGHT SWITCH

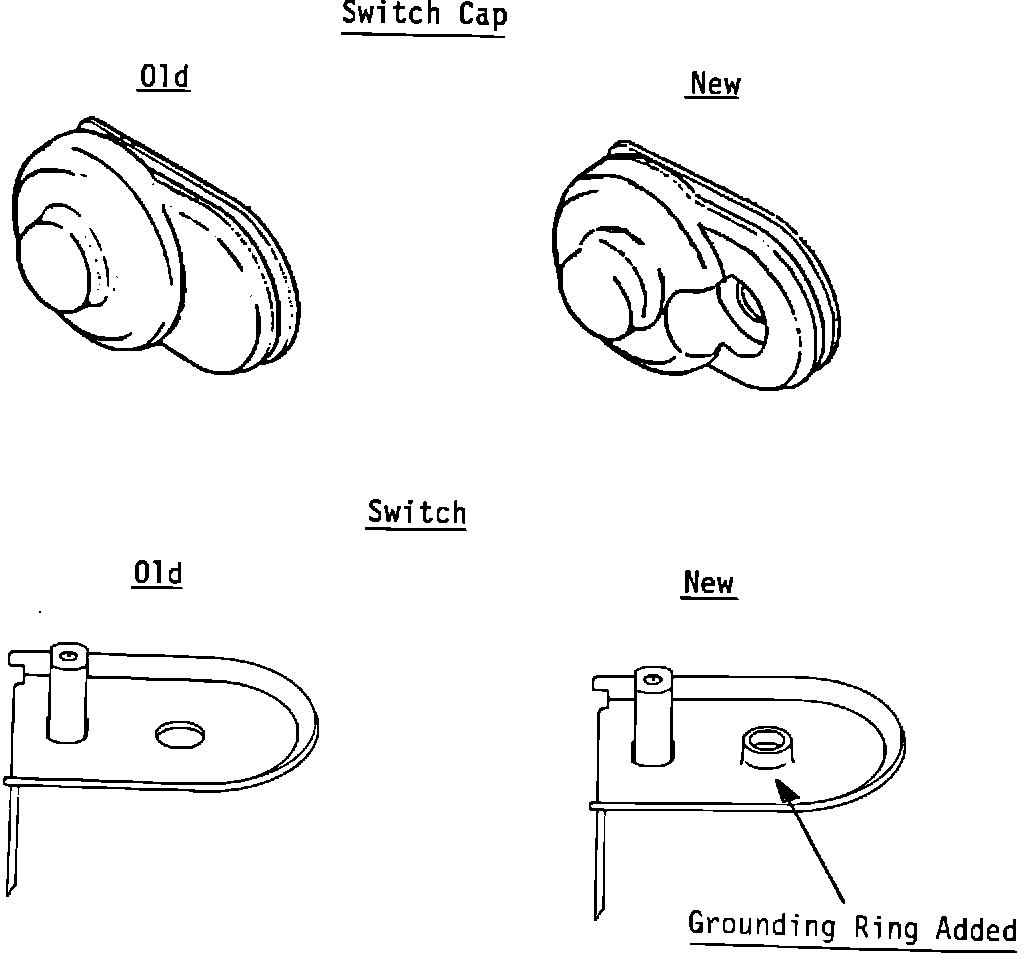

The door light switch and cap have been modified to provide improved retention of the switch cap. The switch retention screw is now used to provide a positive anchor for the switch cap.
Production Changes Effective
Date VIN
4/18/86 KMHLAXXJXGU082467 (5 door)
4/18/86 KMHLFXXJXGU048257 (4 door)
Part Number Information
Part Name Previous Part Number New Part Number
Switch Assembly, Door 93560-21000 Same
Interchangeability Cody A Old <--- New
Note:
The switch and cap must be replaced as an assembly as the new switch base provides a grounding contact for the retention screw when the new cap is used.
