Grounding Point - Locations

86hyundai01

Group: ELECTRICAL


Number: 014


Date: SEPTEMBER, 1986


Model: EXCEL
Subject


GROUNDING POINTS

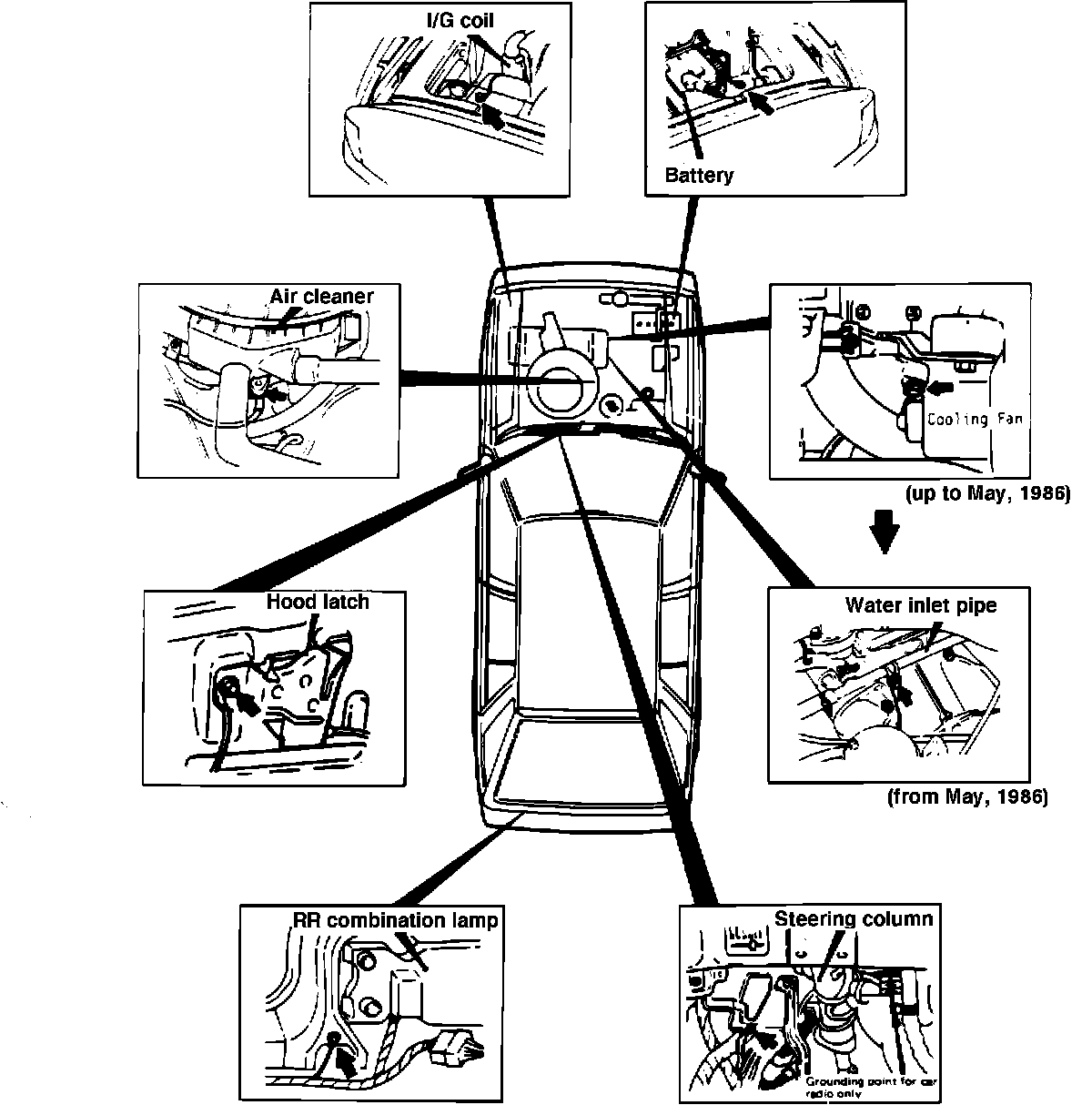

There are various grounding points within the Excel's electrical system. This bulletin is to inform you of their locations.
When diagnosing electrical problems and failures, we suggest that you confirm that a good ground exists for the component in question.
