Heel Pad - Separation

86hyundai01

Group: BODY


Number: 008 (REVISED)


Date: SEPTEMBER, 1986


Model: EXCEL
Subject

HEEL PAD SEPARATION

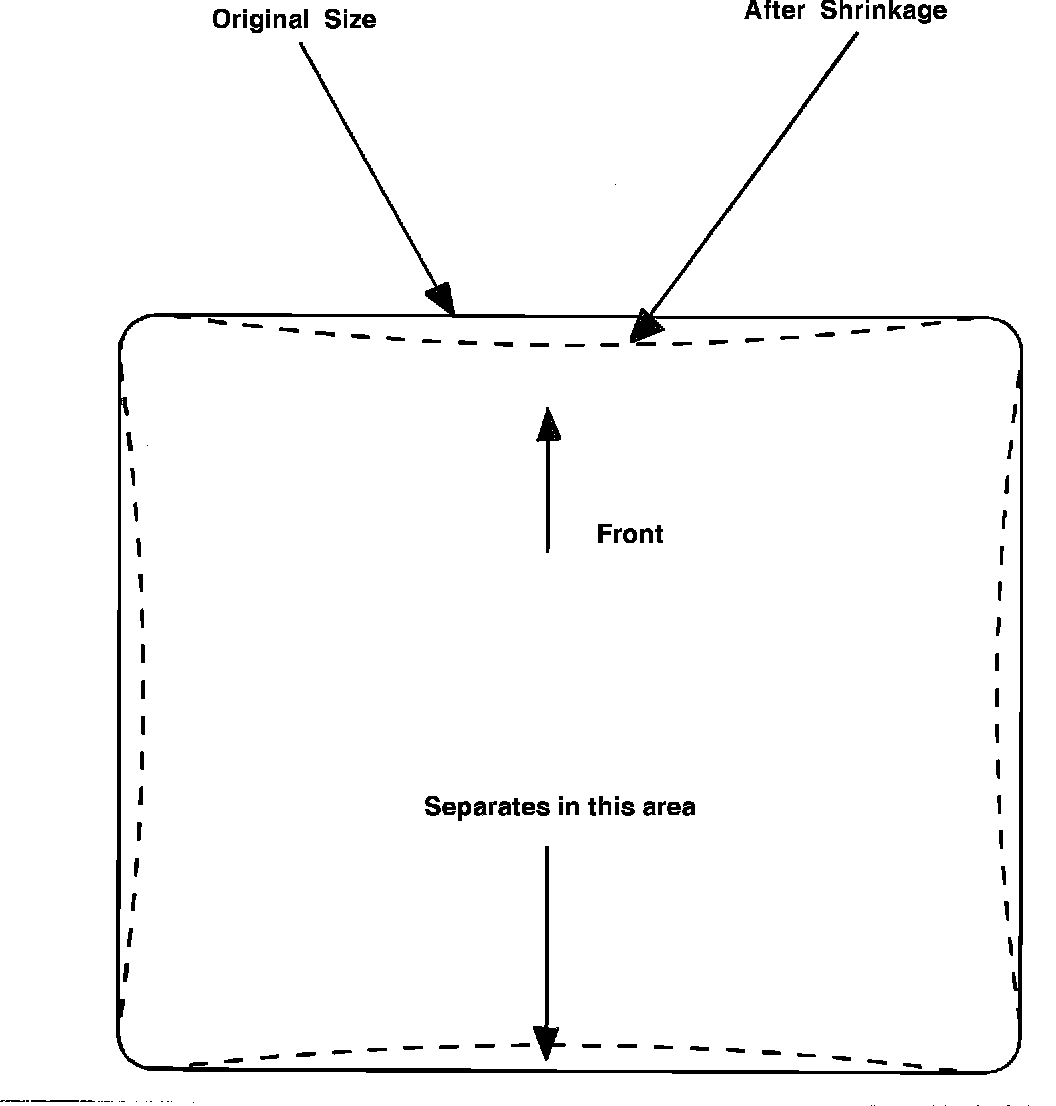

Our initial bulletin concerning heel pad separation recommended using an adhesive to re-secure the heel pad to the carpet. Additional durability testing reveals that the heel pad material may shrink in some atmospheric conditions, causing the pad to separate from the carpeting at the mid sections of the edges as shown below.

We will continue researching this condition to develop a suitable adhesive; however, until further notice, we recommend that the heel pad be sewn into place.
