Rear Shock Absorber - Upper Mounting Bolt Modified
86hyundai01Group: CHASSIS
Number: 001
Date: JULY, 1986
Model: EXCEL
Subject
REAR SHOCK ABSORBER UPPER MOUNTING BOLT

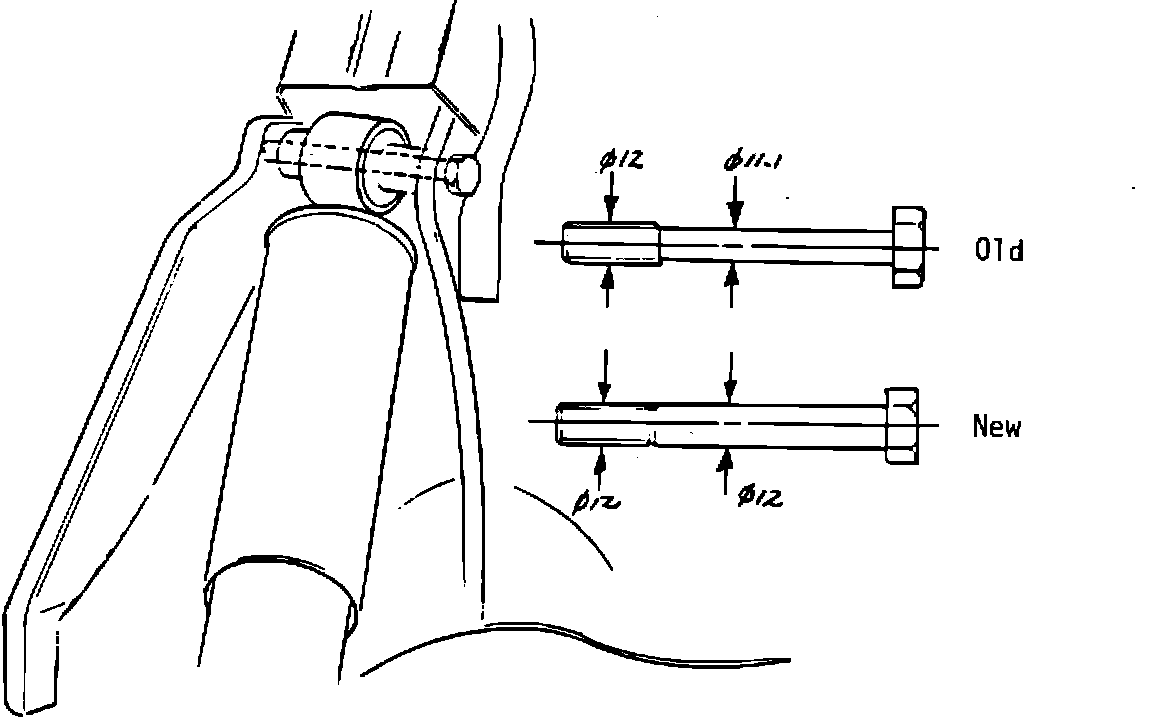

To reduce noise from the area of the rear shock absorbers the shank diameter of upper mounting bolt has been increased.
Production Changes Effective:
Date VIN
3/28/86 KMHLAXXJXGU075003 (5 DR)
3/28/86 KMHLFXXJXGU040140 (4 DR)
Part Number Information
Part Name Previous Part Number New Part Number
Bolt 11204-12801 11321-12801
Interchangeability
Code A Old <--- New
