Rear Suspension - Noise
86hyundai01Group: CHASSIS
Number: 002
Date: JUNE 1986
Model: EXCEL
Subject REAR SUSPENSION NOISE

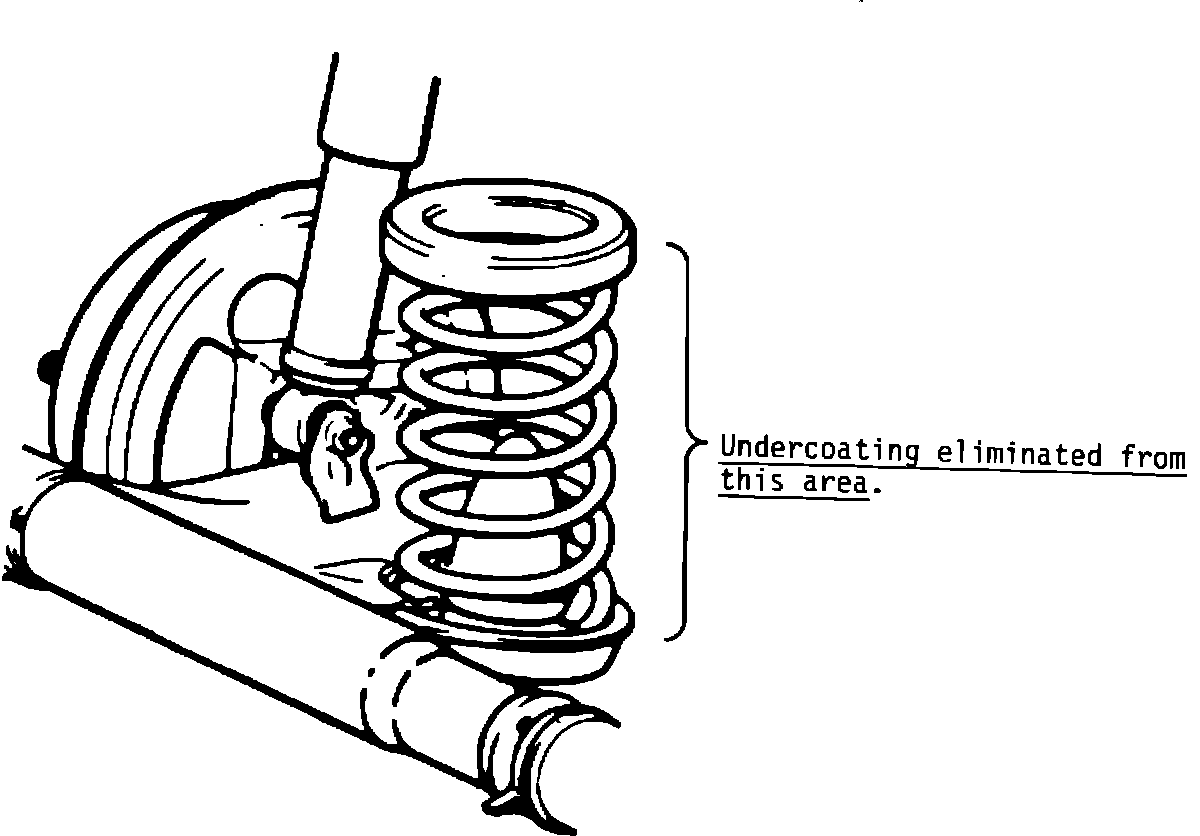

If the rear coil springs are heavily undercoated, a noise can result from the undercoating sticking together during spring jounce and rebound. When applying additional undercoating, take care to avoid applying undercoat material to the coil springs.
The factory is now masking off the rear springs to prevent undercoating application during production.
Production Changes Effective
Date VIN
4/16/86 KMHLFXXJXGU048862 (4 door)
4/16/86 KMHLAXXJXGU082664 (5 door)
