Trunk Lid - Counterbalancing Improvement

86hyundai01

Group: BODY


Number: 010


Date: SEPTEMBER, 1986


Model: EXCEL (4 DR)

Subject TRUNK LID COUNTERBALANCING (PRODUCTION CHANGE)

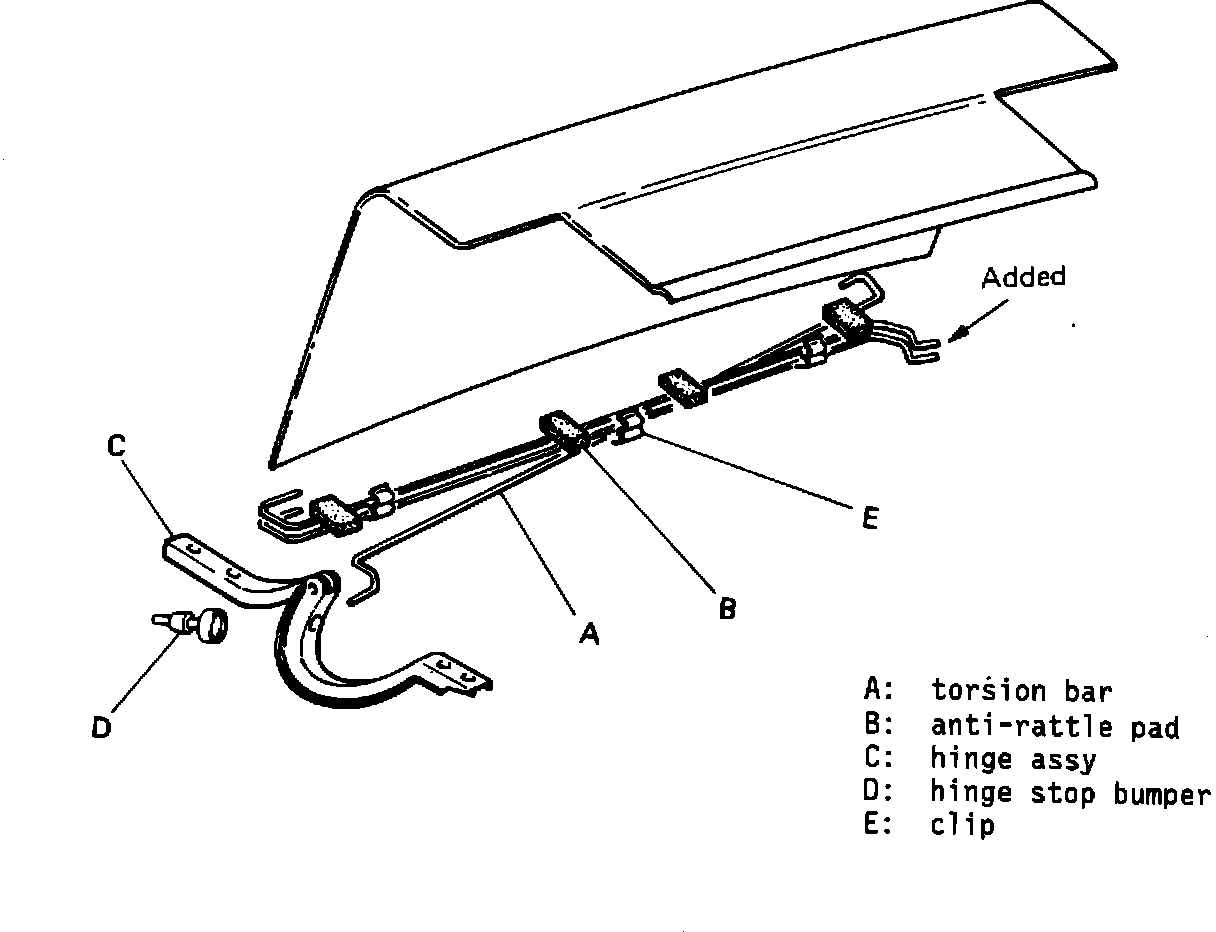

To improve counterbalancing of the trunk lid, a third torsion bar has been added to the torsion bar system as shown below.

Additionally, a number of other changes have been made to improve the torsion bar hold open performance.

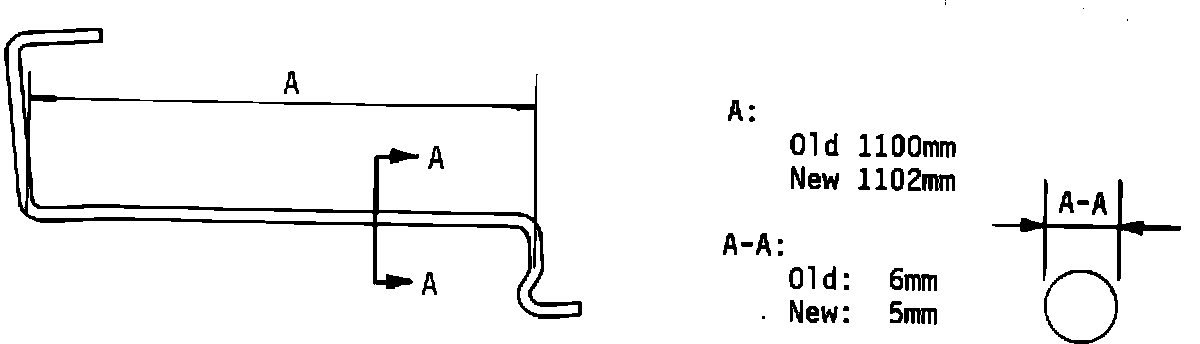

A. Torsion bar length and diameter modified.



B. Trunk lid overslam bumper modified

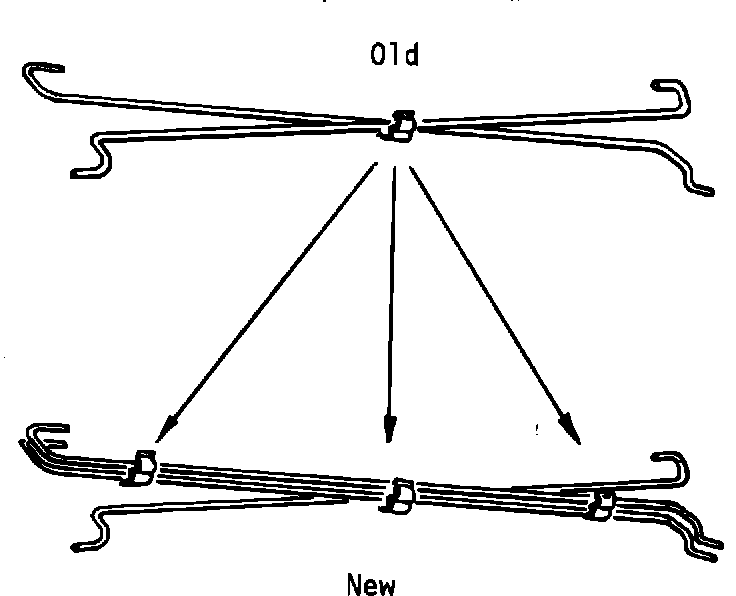

C. Additional torsion bar clips installed

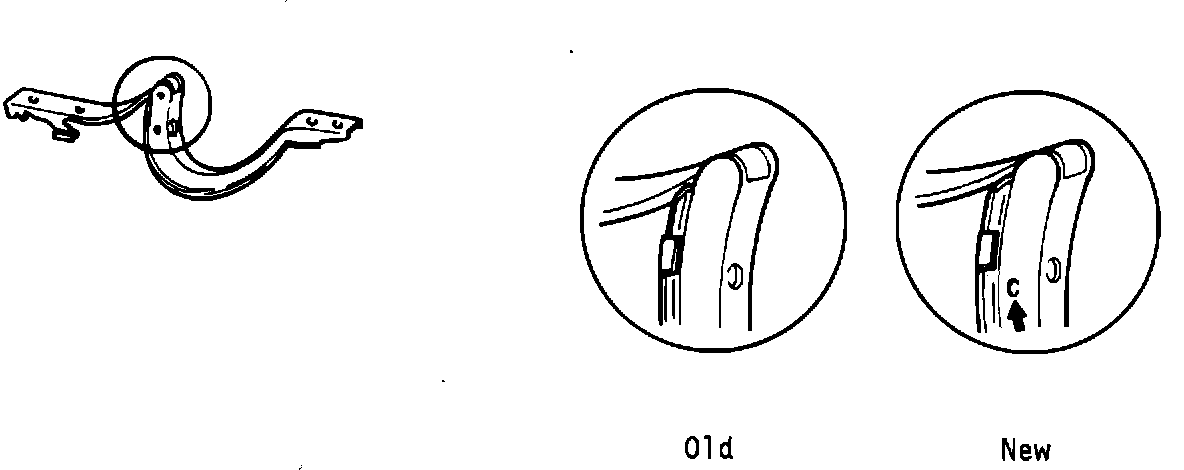

D. Right side hinge modified to accept additional torsion bar.
Production Changes Effective

Date VIN

6/3/86 KMHLFXXJXGU067160

Parts Number Information

Part Name Old Part Number New Part Number

Torsion bar, trunk lid LH 79273-21010 79273-21011 (2 req'd)

Torsion bar, trunk lid RH 79283-21010 79283-21011 (1 req'd)

Bumper, overslam 81738-15001 86421-21001

Clip, torsion bar 86426-21000

Hinge, trunk lid LH 79210-21010G 79210-21001

Hinge, trunk lid RH 79220-21000G 79220-21001

Interchangeability

Code N Old (not interchangeable with) New

* Note: Refer to Technical Service Bulletin, BODY 006 Trunk Lid Counterbalancing (Field Fix) for vehicles produced prior to this June 3, 1986 production change.
