Axle Shaft - Vibration Damper Added to Shaft

87hyundai01

Group: TRANSMISSION/DRIVELINE
Number: 005
Date: FEBRUARY, 1987

Model: EXCEL
Subject VIBRATION DAMPER

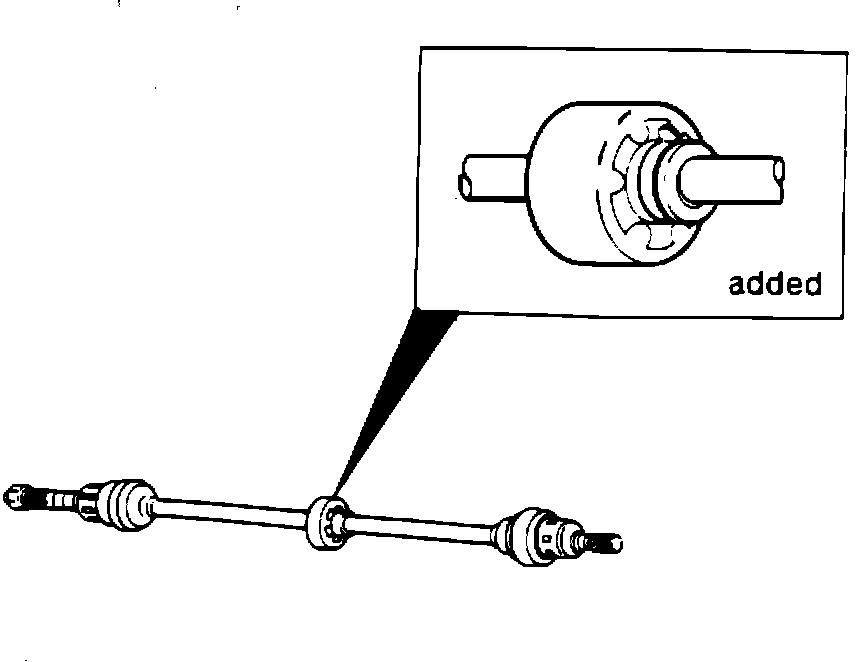

A dynamic vibration damper has been added to the left drive axle. The damper is not available separately and cannot be retrofitted to earlier production vehicles due to a modification of the axle.
Production Change Effective

10/28/86

Part Number Identification

Part Name Old Part Number New Part Number

B.J. & Shaft Kit LH 49507-21000 49507-21001

Interchangeability

Code A Old - New
