Body - Dimensions

87hyundai01

Group: BODY


Number: 013


Date: MARCH, 1987


Model: EXCEL
Subject

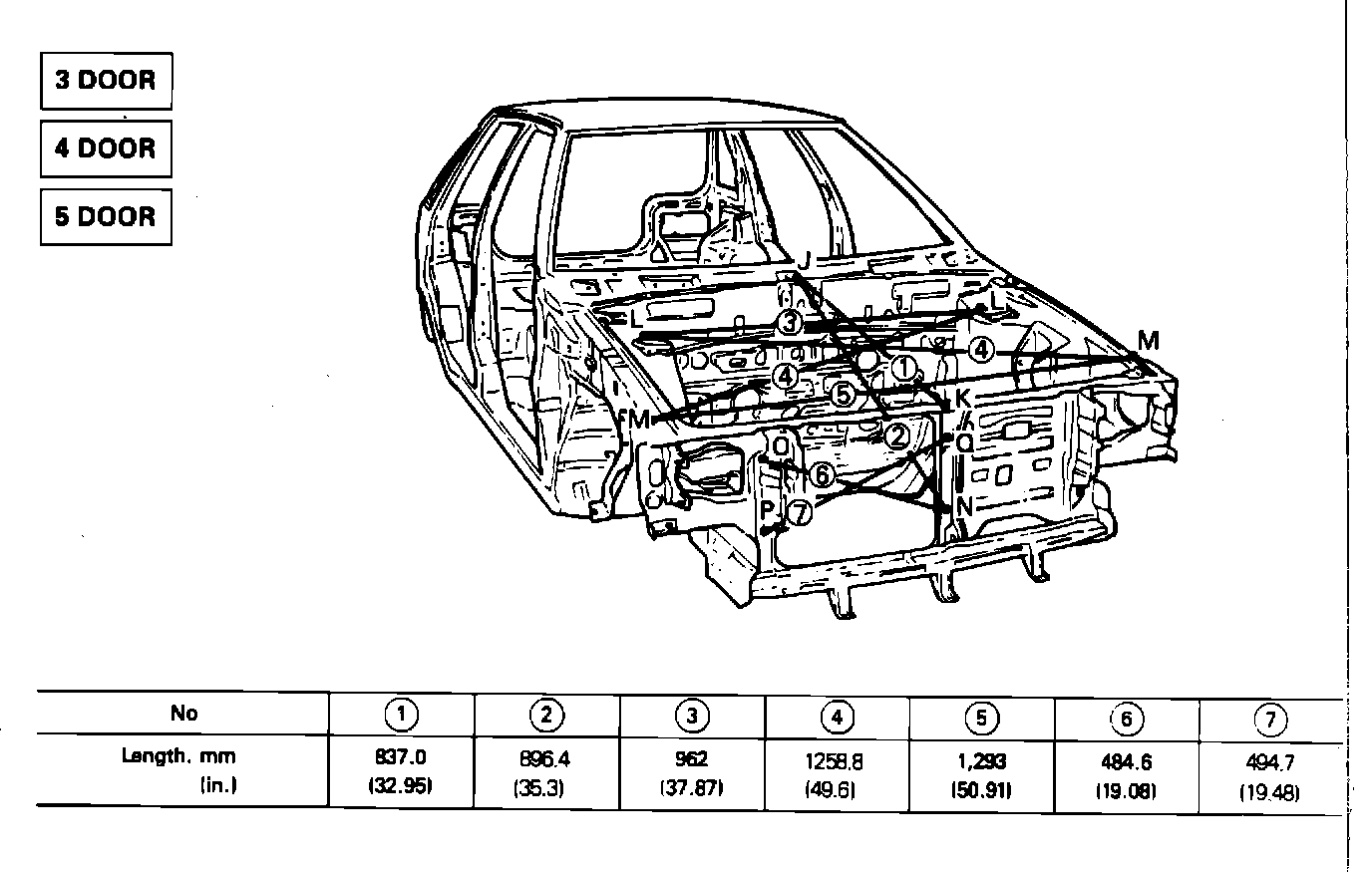

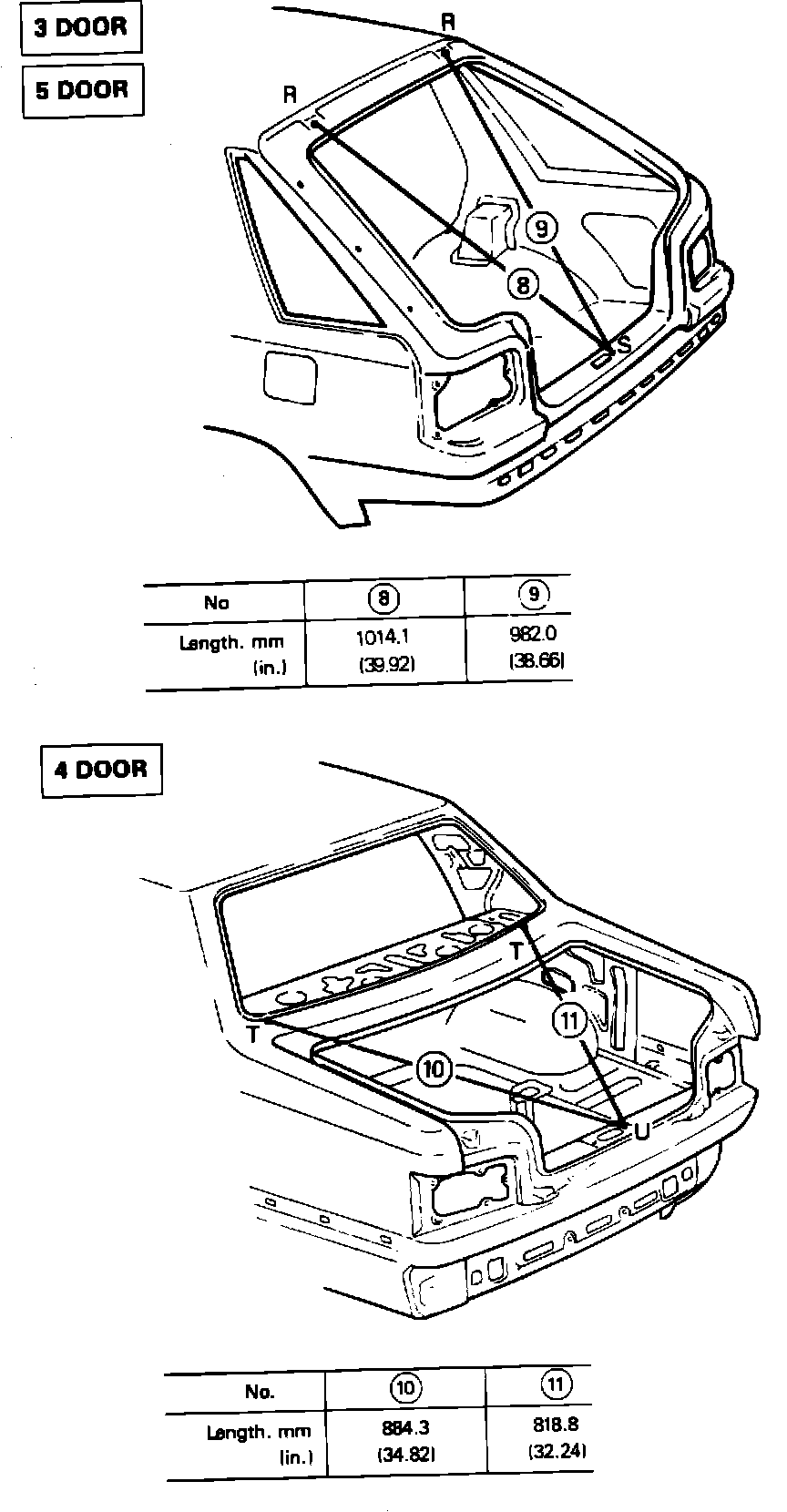

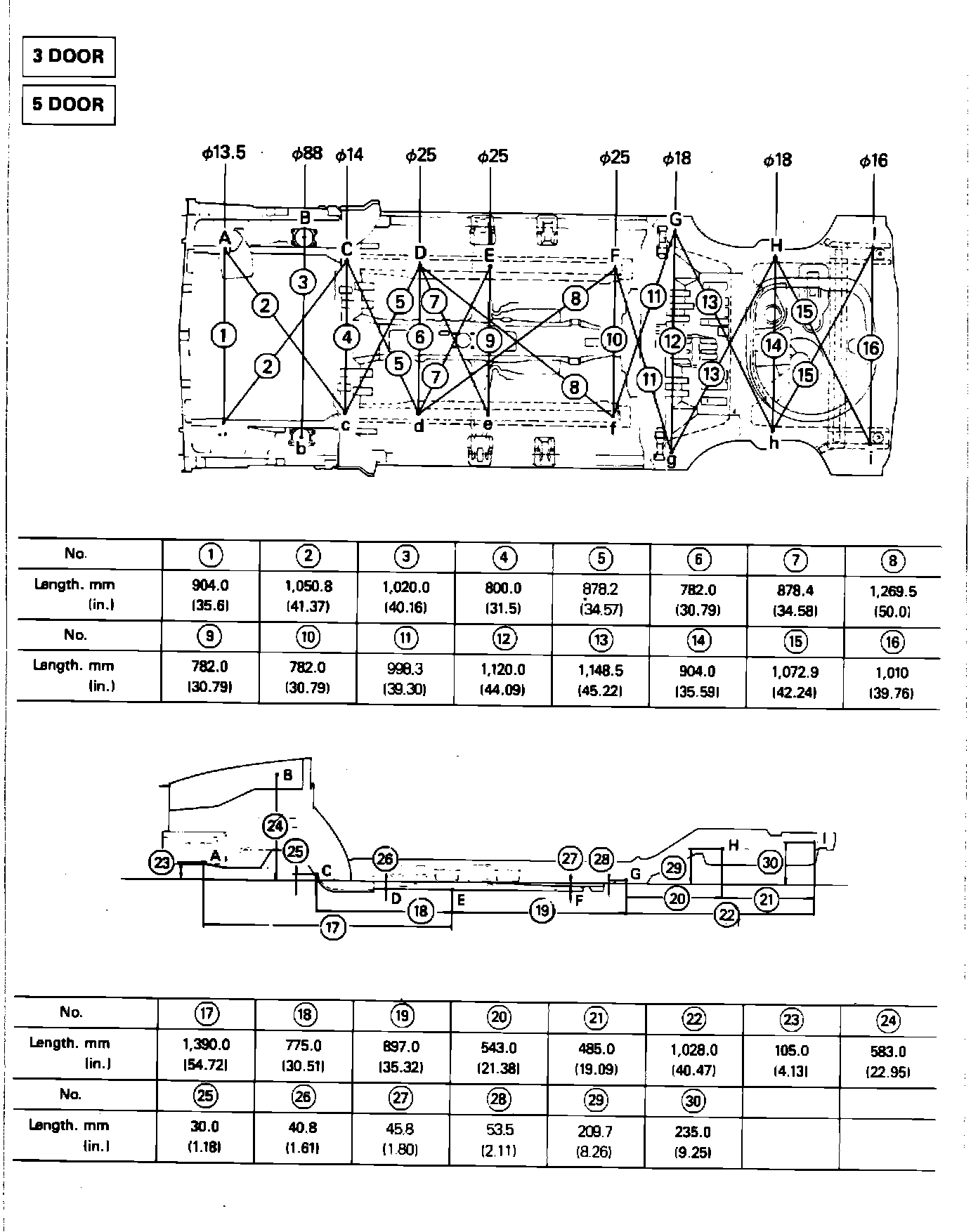

1987 BODY DIMENSIONS












These are the body dimensions for the 1987 model year Excel. This information also appears in the 1987 Repair Manual (SEAS 860804) on pages 600-9 through 600-13. If further information is needed refer to the Repair Manual.
