Door Glass - Does Not Operate Properly
87hyundai01Group: BODY
Number: 018
Date: JUNE, 1987
Model: EXCEL
Subject
DOOR GLASS GRIP REPAIR PROCEDURE
Condition: Door glass does not operate properly.
Cause: Door glass has come out of the glass grip.
Correction: Following the procedures outlined in the appropriate Excel Shop Manual, remove the door glass and glass grip from the door cavity.
Repair the broken bond between the door glass, glass grip seal strip, and glass grip using 3M's Channel Bonding Adhesive (#08640) or equivalent product. Follow the manufacturer's recommended procedures when applying the channel adhesive.

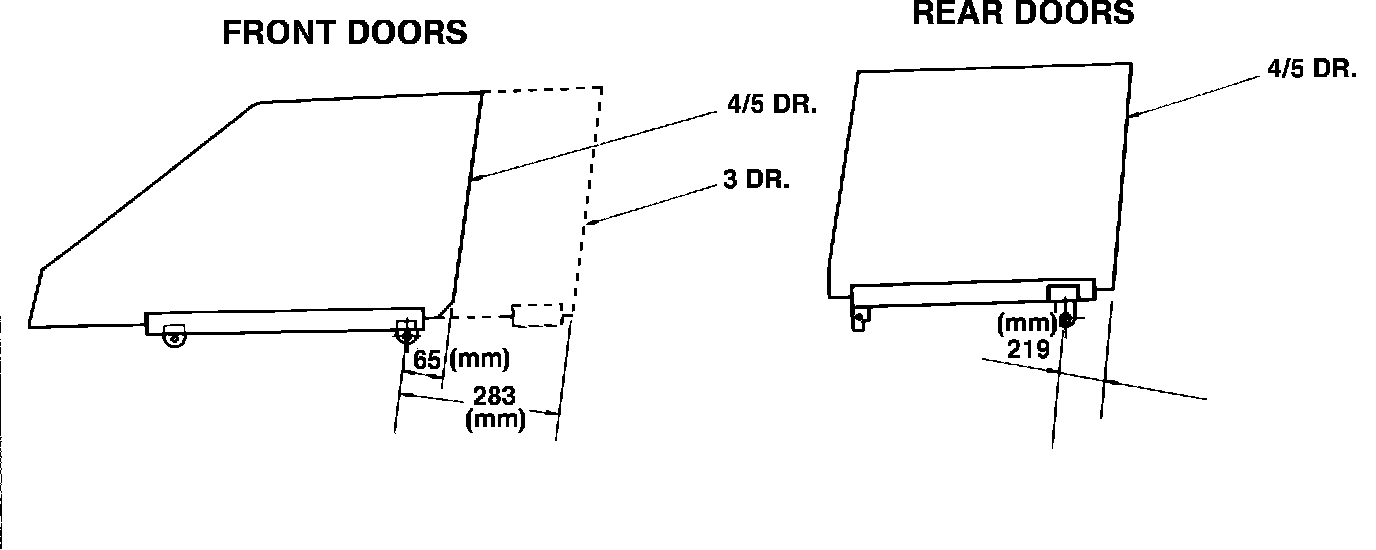

Caution: Make sure that the glass and glass grip are properly aligned (as shown below) to insure proper window operation after the repair is completed.
