Front Engine Support - Heat Shield Added

87hyundai02

Group: ENGINE


NUMBER: 014


DATE: AUGUST, 1987


MODEL: EXCEL
SUBJECT


HEAT SHIELD ADDED

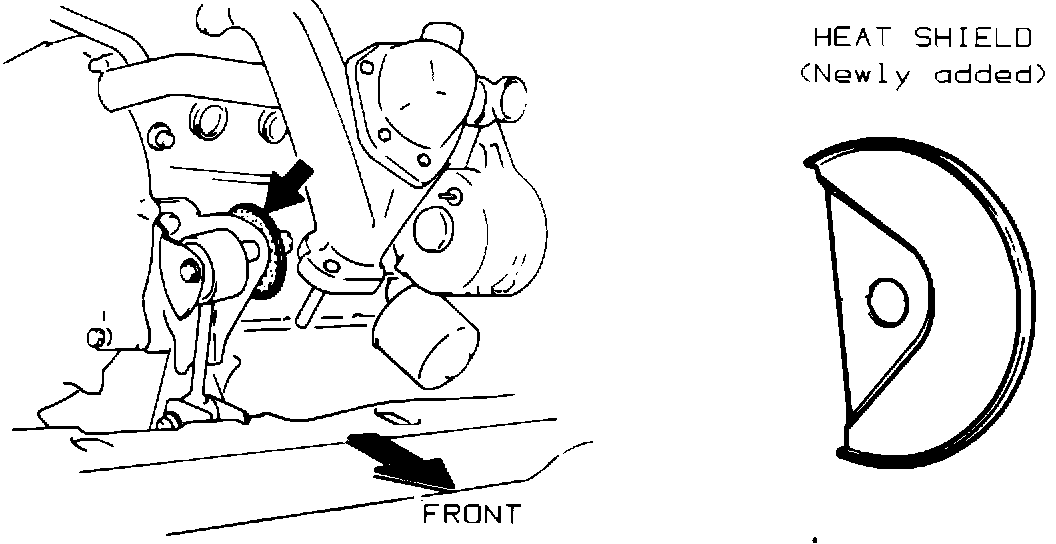

A heat shield has been added to the front engine support to protect the upper insulator from exhaust heat.

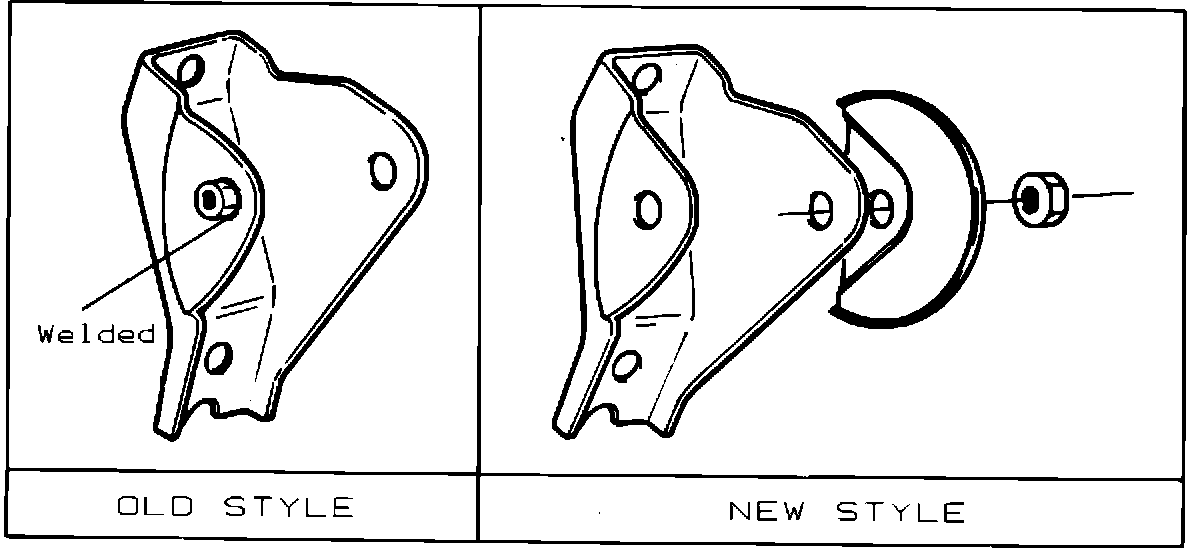

FRONT ENGINE SUPPORT BRACKET (Modified) & NUT (Newly added)
Production Changes Effective

Date

04-16-87 (A/T)

04-18-87 (M/T)


Part Number Information


Name Old Part Number New Part Number


Bracket, Front Engine Support (A/T) 21682-21710 21682-21711

Bracket, Front Engine Support (M/T) 21682-21010 21682-21011

Protector, Heat (A/T) NONE 21652-21700

Protector, Heat (M/T) NONE 21652-21000

Nut NONE 13104-10001

Bolt 11234-10901 Same


Interchangeability


Code

A Old <---> New
