M/T - Select Switch Circuit Diagram
87hyundai02Group: ELECTRICAL
Number: 020
Date: SEPTEMBER, 1987
Model: EXCEL
Subject 5 SPEED TRANSMISSION SELECT SWITCH CIRCUIT

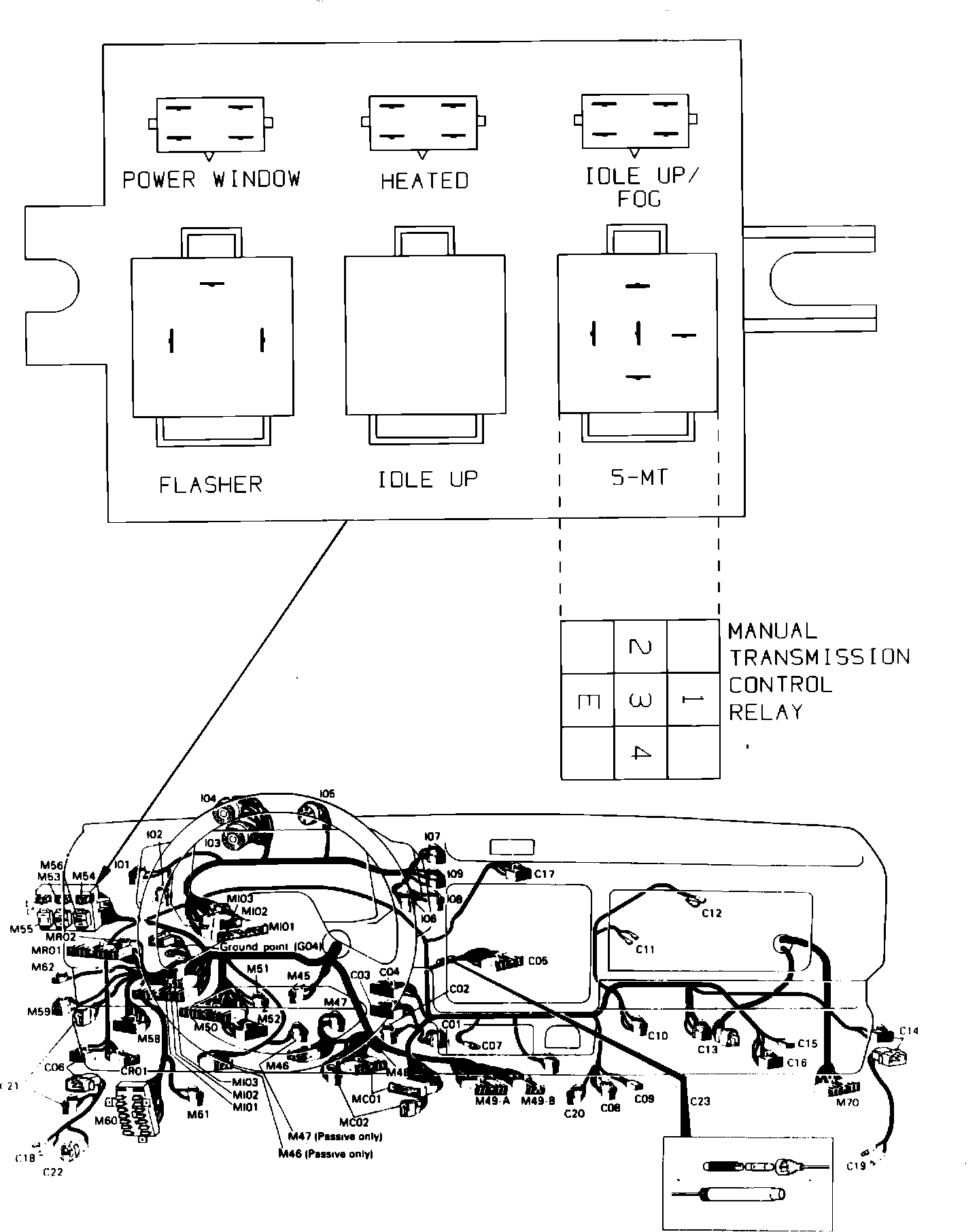

The 5 Speed Transmission Select Switch circuit does not appear in the Excel Shop Manuals. Please use the circuit diagram below when troubleshooting problems in this area. Additionally, a relay center diagram with pin location callouts for the 5th gear relay appears on page 2.
