Radiator - Upper Tank Seam Repair Due to Leakage
87hyundai01Group: ENGINE
Number: 006 (REVISED)
Date: FEBRUARY, 1987
Model: EXCEL
Subject
UPPER RADIATOR TANK SEAM REPAIR
Coolant leakage at the upper radiator tank seam may be the result of insufficient clearance between the upper radiator tank and the radiator support. When repairing vehicles with this condition, use the following procedure:
1. Remove radiator from vehicle.
2. Perform necessary repairs to radiator.

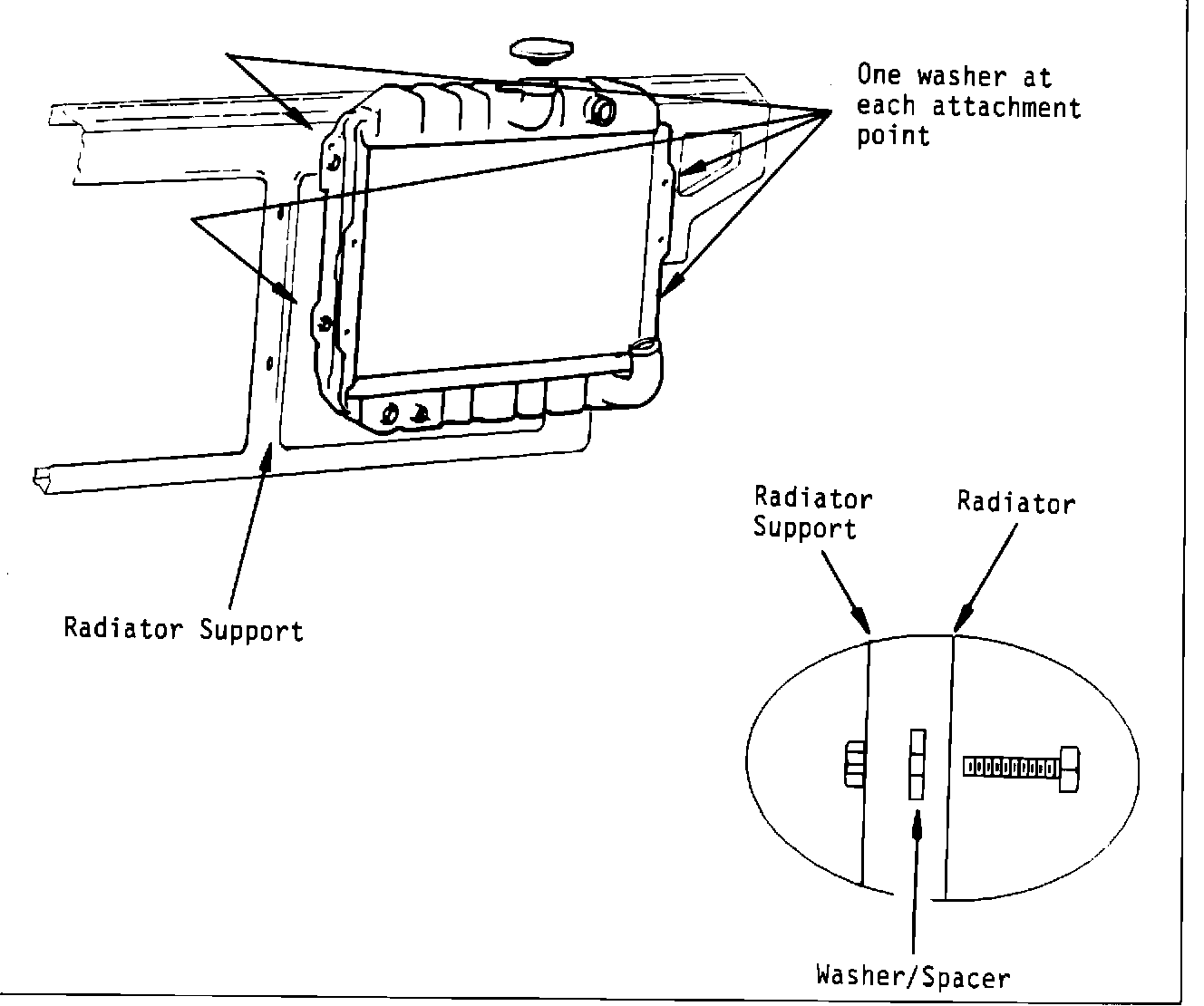

3. Reinstall radiator with one flat washer P/N 13510-08246 between the radiator and the radiator support at each attachment point.
