Radiator Grille - Removal and Installation Procedure
87hyundai01Group: BODY
Number: 016
Date: APRIL, 1987
Model: EXCEL
Subject RADIATOR GRILLE REMOVAL AND INSTALLATION PROCEDURE
The following procedure should be followed when removing and reinstalling the radiator grille on 1987 Excels.
Removal

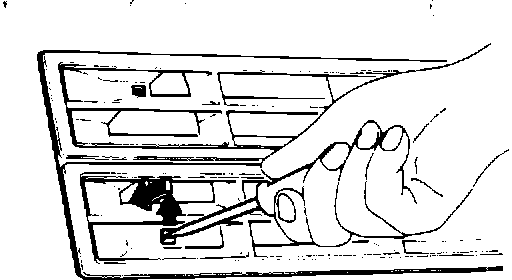

1. While gently pulling outward on the grille, spread the ends of each of the attachment clips as shown below.
Reinstallation
1. Remove the radiator grille attachment clips from the support brackets. This is easily done by rotating the clip in its slot.

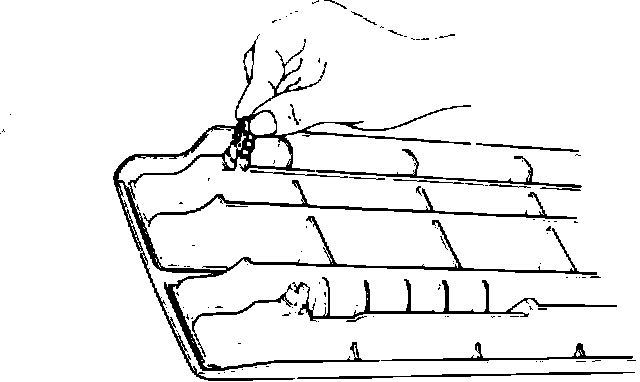

2. Install the attachment clips into the radiator grille by gently pushing them into position as shown below.
3. Align the grille assembly with the support brackets and push in until each of the attachment clips snaps into place.
