Radio - Service Tools and Removal Procedure
86hyundai02Group: SST
Number: 001
Date: OCTOBER, 1986
Model: EXCEL
Subject
1987 EXCEL RADIO REMOVAL PROCEDURE
The radios used in the 1987 Excels require the use of special tools during the removal procedure. These tools (PN 00376-21001) have been shipped with most 1987 model vehicles in the glove compartment; however, some initial units did not include the Radio Removal SST Kit.
The Radio Removal SST Kit includes two pair of wire hooks as shown below.
Removal Procedure
Step 1:

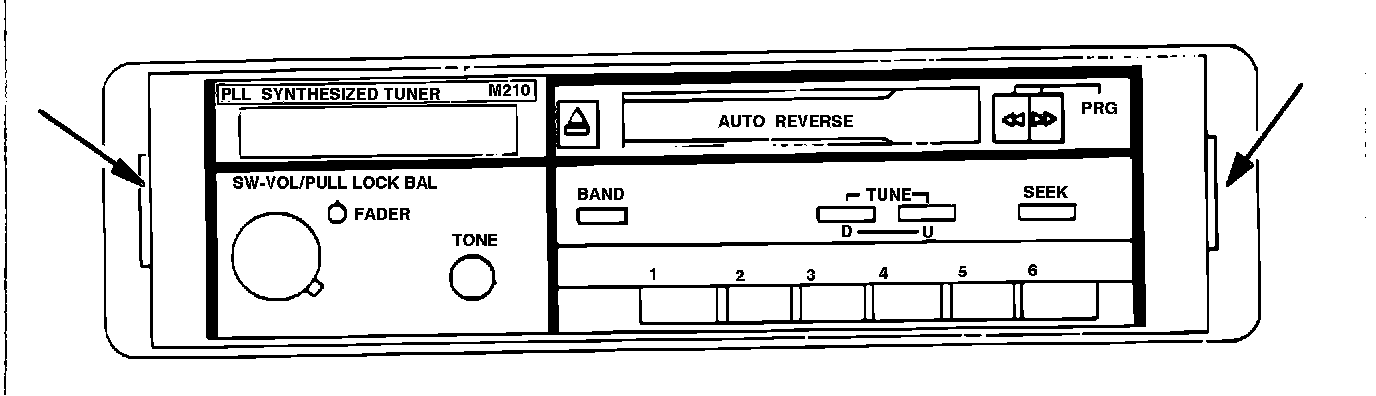

Insert the bezel removal hooks (Hook A) into the bezel at the locations indicated below. Pull straight out on the hooks to remove the bezel.
Step 2:

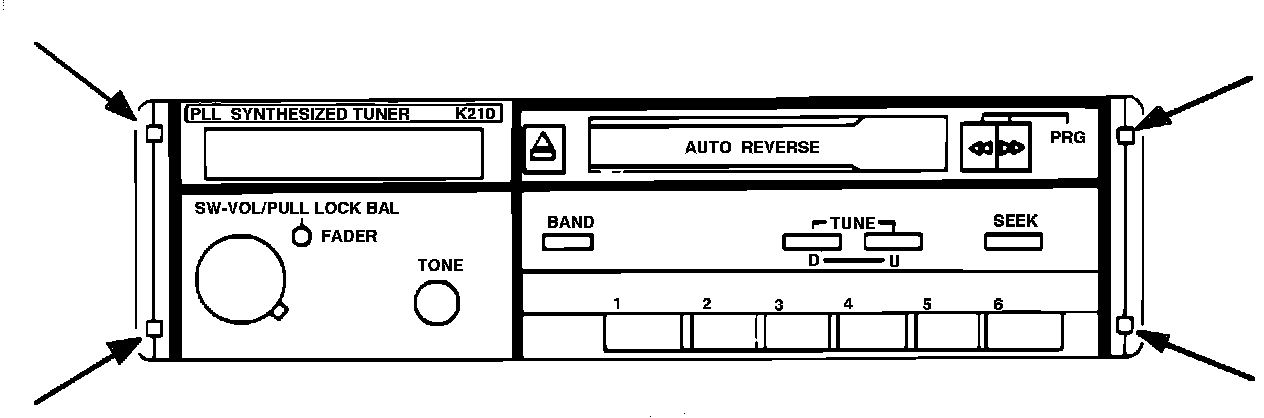

Insert the radio chassis removal tools (Hook B) into the radio chassis in the locations indicated below. Push the tools in firmly until they stop. Pull straight out on the hooks to remove the radio chassis.
NOTE:
If a chassis hook pulls out of the chassis prematurely, reinstall it in the chassis using a little firmer push to engage it in the chassis removal locking mechanism.
Step 3:
Disconnect all electrical connections (same as 1986 models).
Part Number Information
Part Number Part Name
00376-21001 Radio Removal Tool - Panasonic
