Wheel Nut - Torque Specifications
89hyundai07Group: GENERAL
Number: 006
Date: SEPTEMBER, 1989
Model: SONATA/EXCEL
Subject
WHEEL NUT TORQUE
It is important to properly torque the wheel lug nuts on all Hyundai vehicles. Improper torque may result in warpage and distortion of the wheel and/or hub. Do not use an impact wrench to tighten wheel lug nuts.

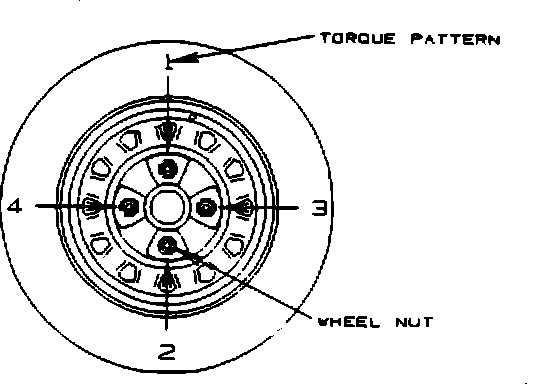

Follow the torque pattern as shown.
The following torque specs apply to all Hyundai steel and aluminum alloy wheels.

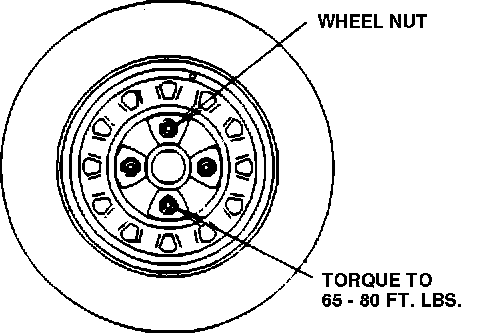

Torque Specs
65 - 80 ft. lbs.

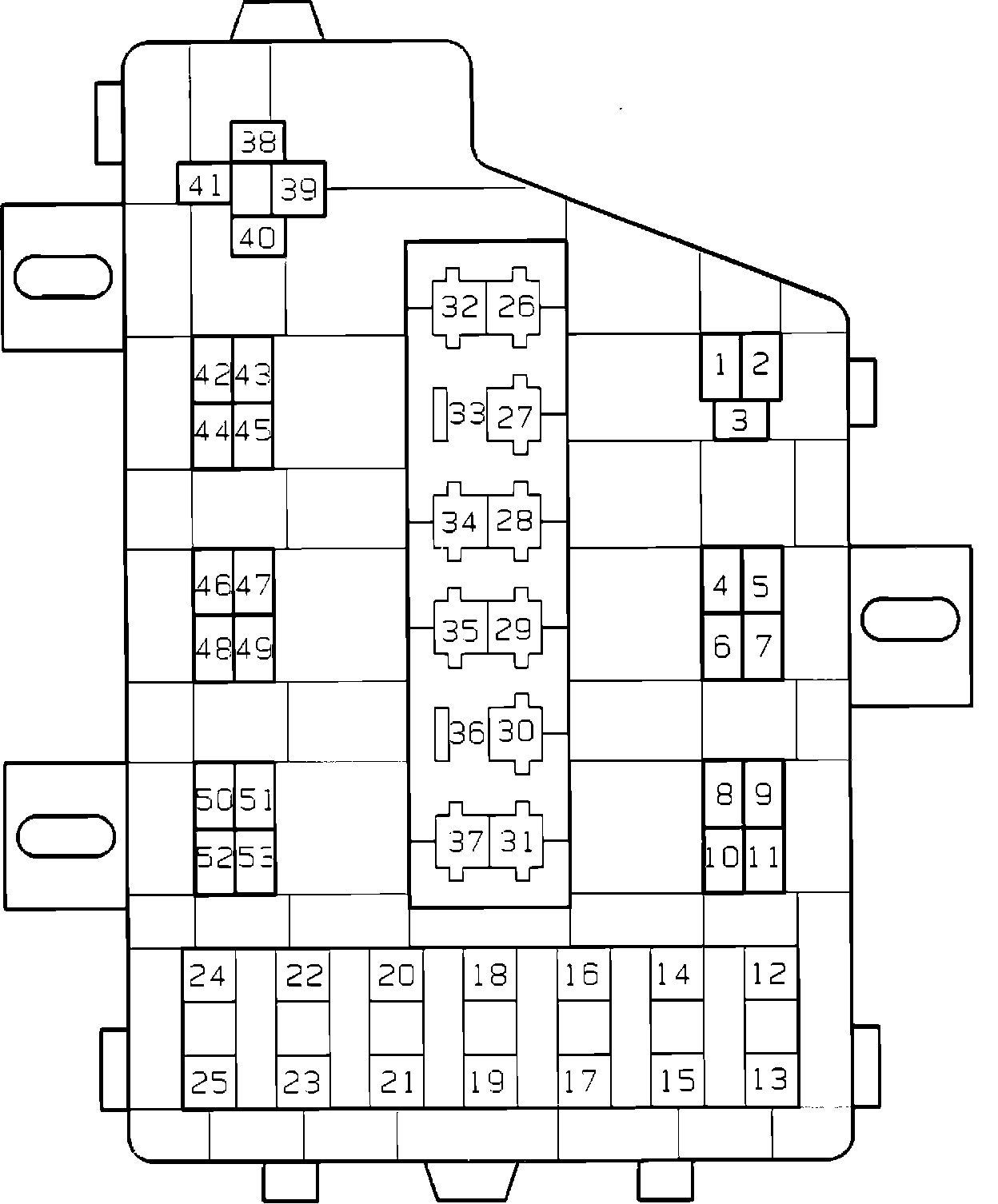

Relay and Fuse Box Diagram
Use the diagram below to note wire positions if servicing of the box is necessary.
