Windshield - Defrosting/Defogging

87hyundai01

Group: CLIMATE CONTROL


Number: 004


Date: MAY, 1987


Model: EXCEL
Subject


WINDSHIELD DEFROSTING/DEFOGGING
Condition:

Slow defrosting/defogging of windshield.

Cause:

Incorrect setting of ventilation system.



Correction:

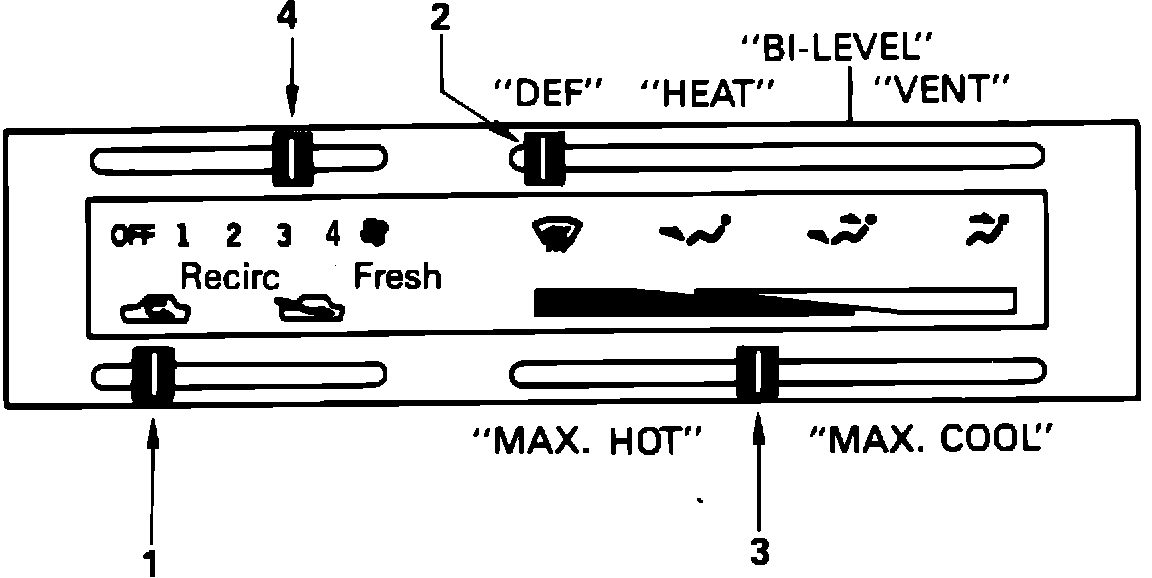

^ Set the air intake control (1) to the "Fresh" position.

^ Set the air distribution control (2) to the "Def" position.

^ Set the temperature control (3) to a comfortably warm position.

^ Set the fan speed control (4) to position 3 or 4.

^ If vehicle is so equipped, turn on the A/C for increased defogging action.

Note: In high humidity areas the A/C can be used with the air intake in the "Recirc" position for increased defogging action.
