Home >> Hyundai >> 1988 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

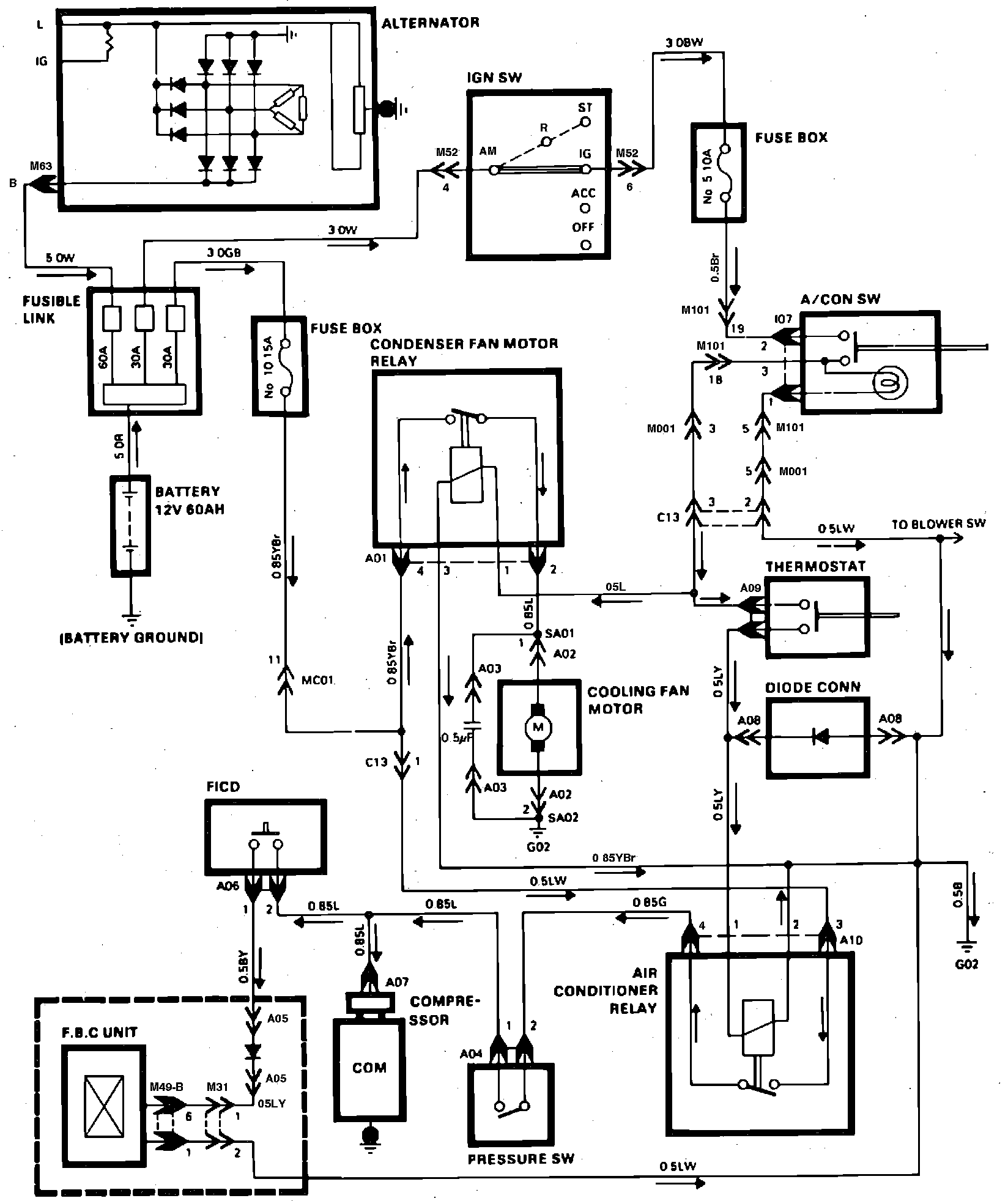

Fig. 3 Air Conditioner Wiring Diagram:



Fig. 14 Heater Wiring Diagram:
