Parking Brake Warning Lamp

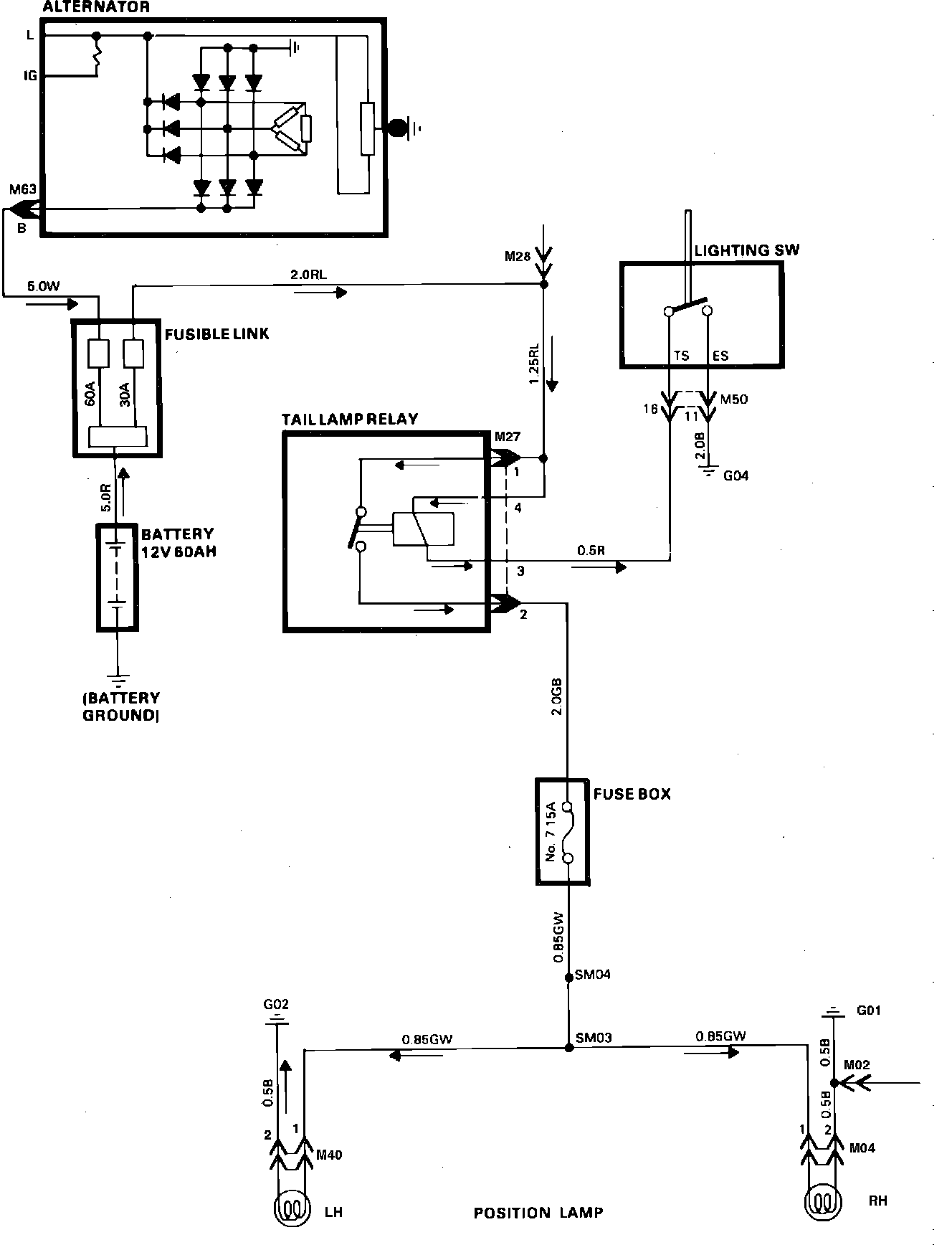

Fig. 19 Parking Lamp (front) Wiring Diagram:

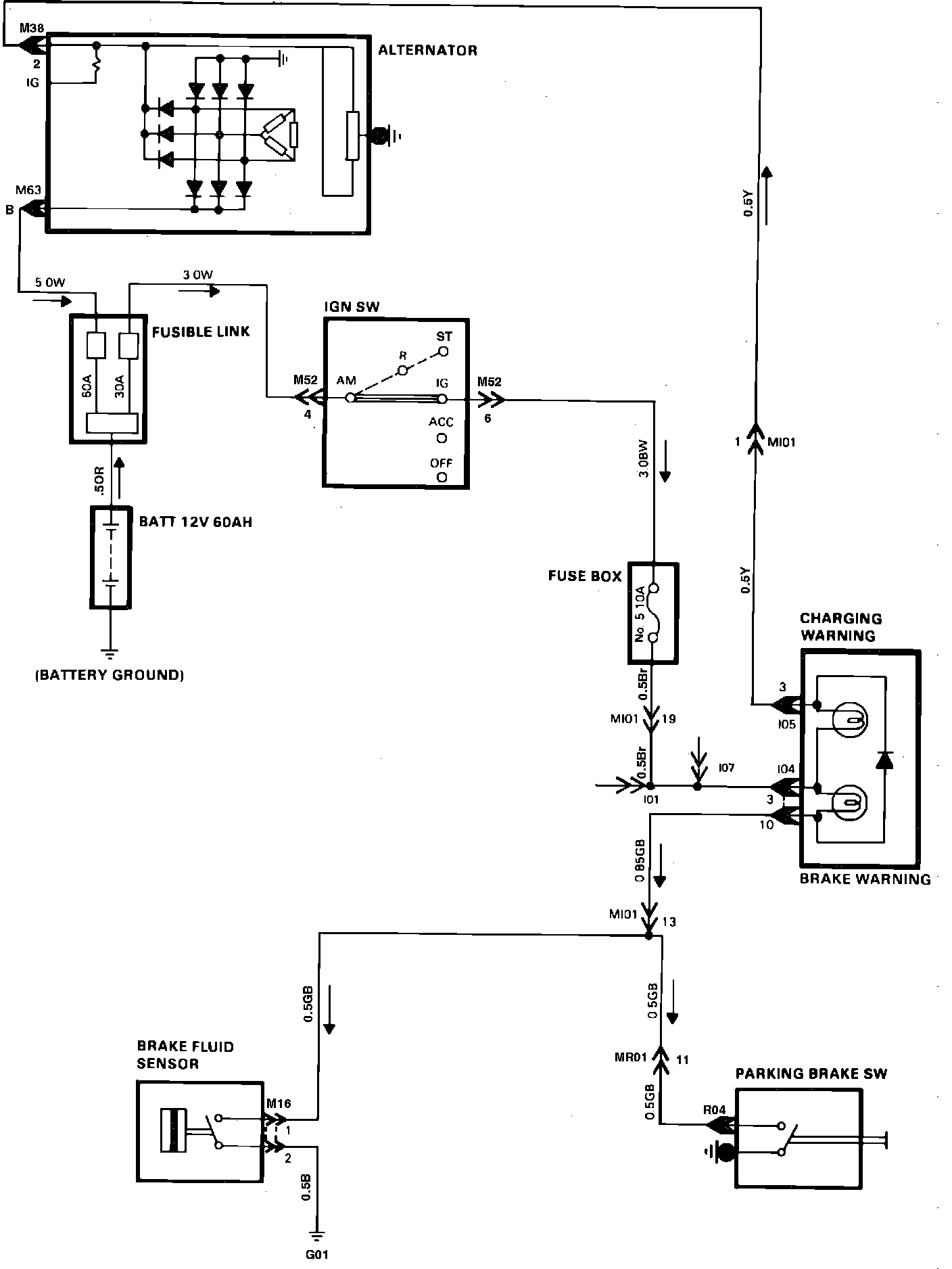

Fig. 18 Parking Brake Wiring Diagram:
