A/C Relay - Diesel Kiki/Mando Application
88hyundai01Group: ELECTRICAL
Number: 029
Date: AUGUST, 1988
Model: EXCEL
Subject
A/C RELAY
From November 1, 1987 production, all 3 door model Excels with factory installed Air Conditioning (A/C) use Mando and not Diesel Kiki A/C systems.

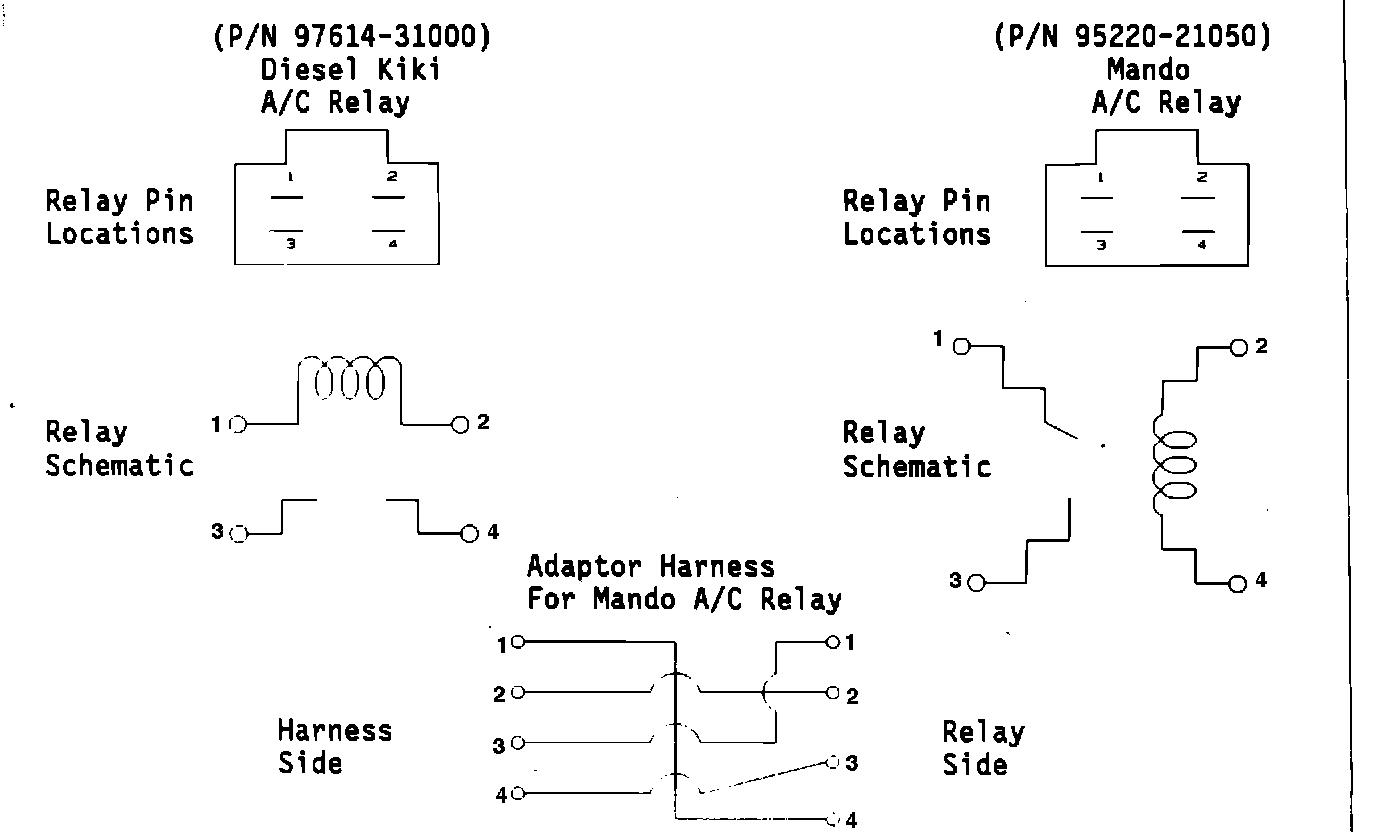

The Diesel Kiki A/C system relay (P/N 97614-31000) is wired differently than the Mando A/C relay (P/N 95220-21050) and they are not interchangeable. However, the A/C wire harness for both systems is identical. To compensate, Mando adds a small harness (P/N 91675-21300) to adapt their relay to the system. (see below)
Note: This information also applies to dealer installed A/C kits that contain Mando manufactured components. A Mando A/C system can be identified by the type of compressor used. Mando systems use Sanden compressors.
Caution:
Never use the Mando relay without the small adaptor harness in place or the A/C system will not operate and damage to the ECU may occur.
It is recommended that these relays be used only with their respective A/C systems.
