A/T Transfer/Idler Shaft - End Play Correction
Group: TRANSAXLENumber: 93-40-008
Date: JULY, 1993
Model: ALL
Subject:
TRANSFER SHAFT END PLAY AND TRANSFER IDLER SHAFT PRE-LOAD SPECIFICATIONS FOR AUTOMATIC TRANSAXLES-KM171, KM175 & KM176
This bulletin supercedes Technical Service Bulletin 2-40-021 Issued December, 1990.
This bulletin provides transfer shaft end play and transfer idler shaft pre-load specifications for the assembly of the KM171, KM175 and KM176 automatic transaxles.
Please review the following information and make the appropriate corrections to your Shop Manuals. Additionally, you may write the Technical Service Bulletin No. in the T.S.B. Revision Block located on the bottom of the page in your 1992 Excel and Scoupe Shop Manuals for future reference.
KM171 (3-SPEED) TRANSAXLE:
TRANSFER SHAFT END PLAY 0.10 - 0.15 mm (0.004 - 0.006 in.)

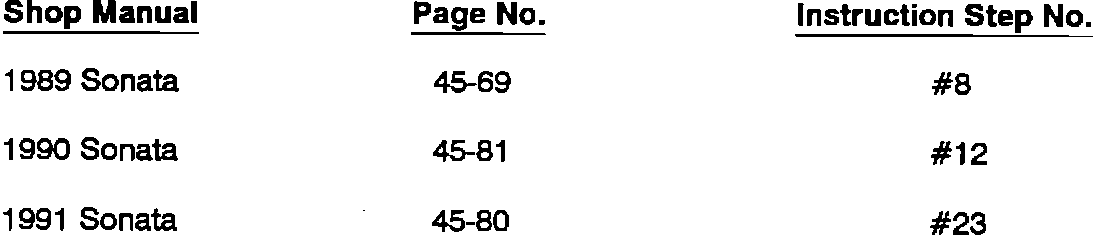

Please correct (see illustration).
KMI75 (4-SPEED) TRANSAXLE:
TRANSFER IDLER SHAFT PRE-LOAD: 0.8 N-m (0.6 lb.ft.)

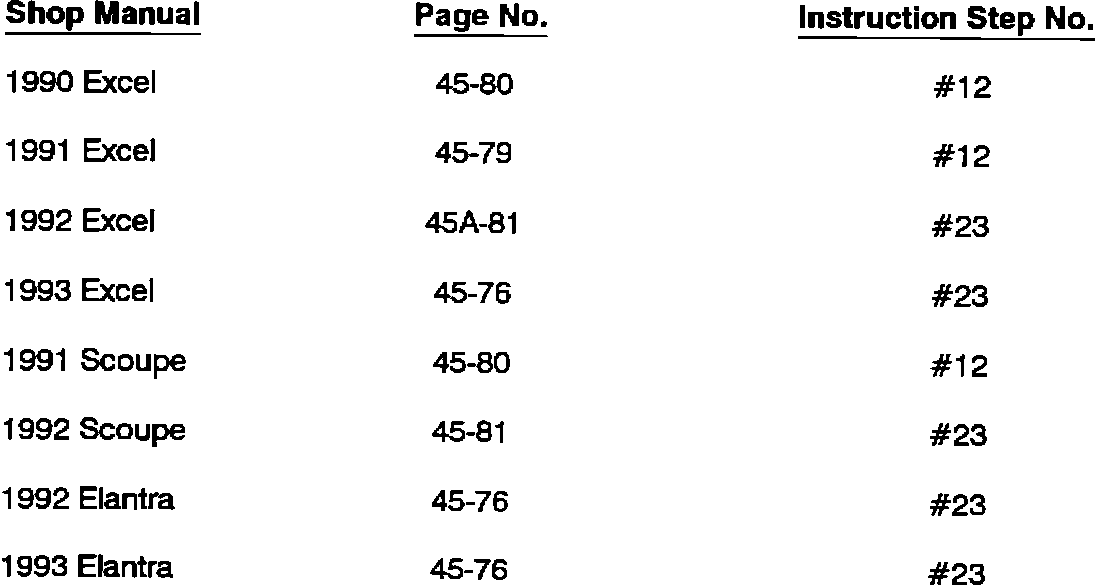

Please correct (see illustration).
TRANSFER SHAFT END PLAY: 0 - 0.025 mm (0 - 0.001 in.)
Please correct the following:
Shop Manual Page No. Instruction Step No.
1989 Sonata 45-82 # 68
KM176 (4-SPEED) TRANSAXLE:
TRANSFER IDLER SHAFT PRE-LOAD: 0.8 N-m (0.6 lb.ft.)
Please correct (see illustration).
