Carburetor JSV/ESV/DSV - Torque Specifications
88hyundai01Group: FUEL SYSTEM
Number: 003
Date: JANUARY 1988
Model: EXCEL
Subject TORQUE SPECIFICATIONS

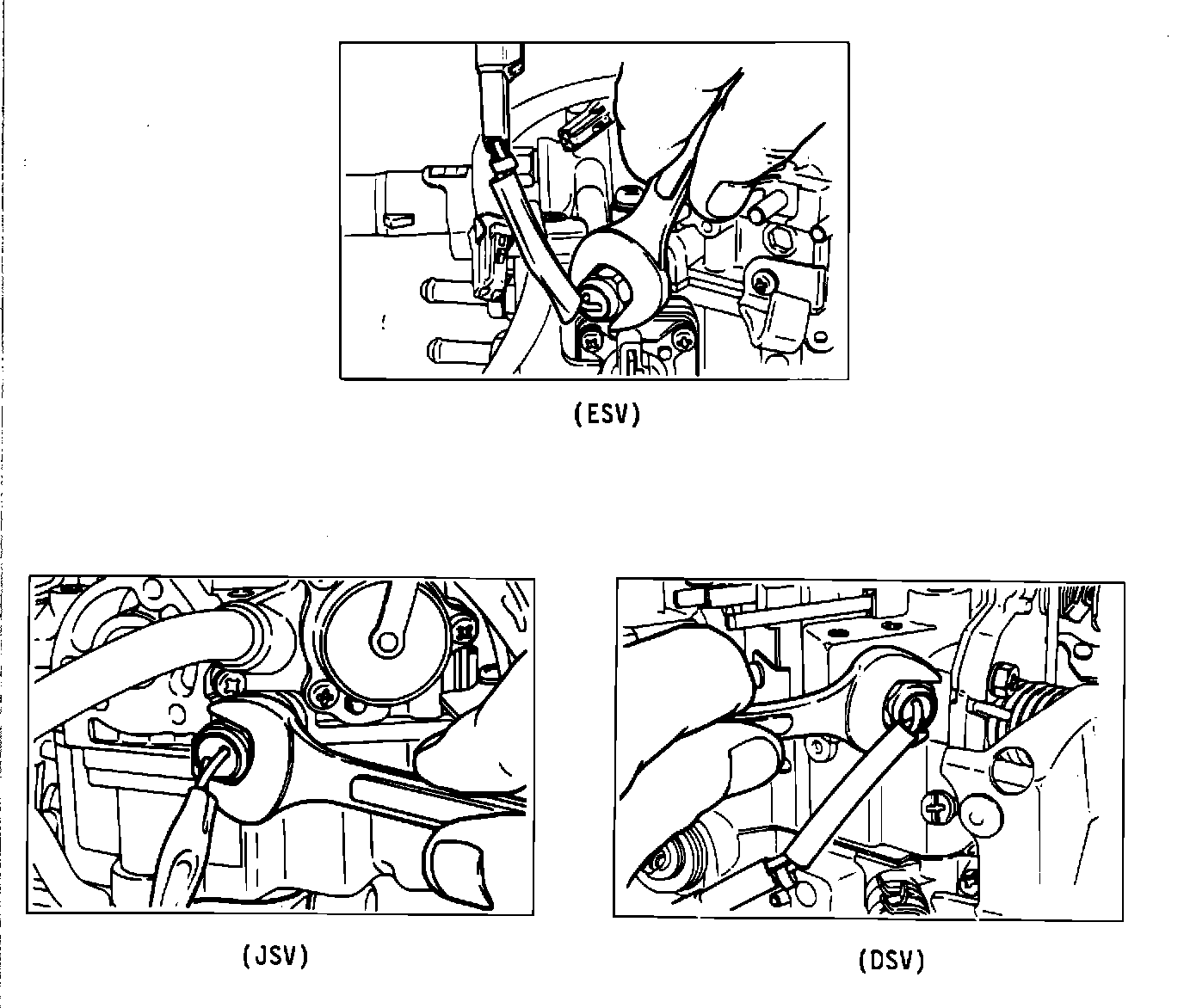

JET SOLENOID VALVE (JSV) ENRICHMENT SOLENOID VALVE (ESV) DECELERATION SOLENOID VALVE (DSV)
When reassembling 3 Solenoid Carburetors or installing new Carburetor Control Solenoids, please use the following torque specification which does not appear in the Excel Repair Manual.
Carburetor Control Solenoid torque specification 22-30 In. Lbs.
