Hot Weather Cooling Kits - Availability

88hyundai01

Group: ENGINE

Number: 017


Date: APRIL, 1988


Model: EXCEL
Subject


HOT WEATHER COOLING KITS



There are now 3 individual hot weather cooling kits available. To select the appropriate kit refer to the information below:

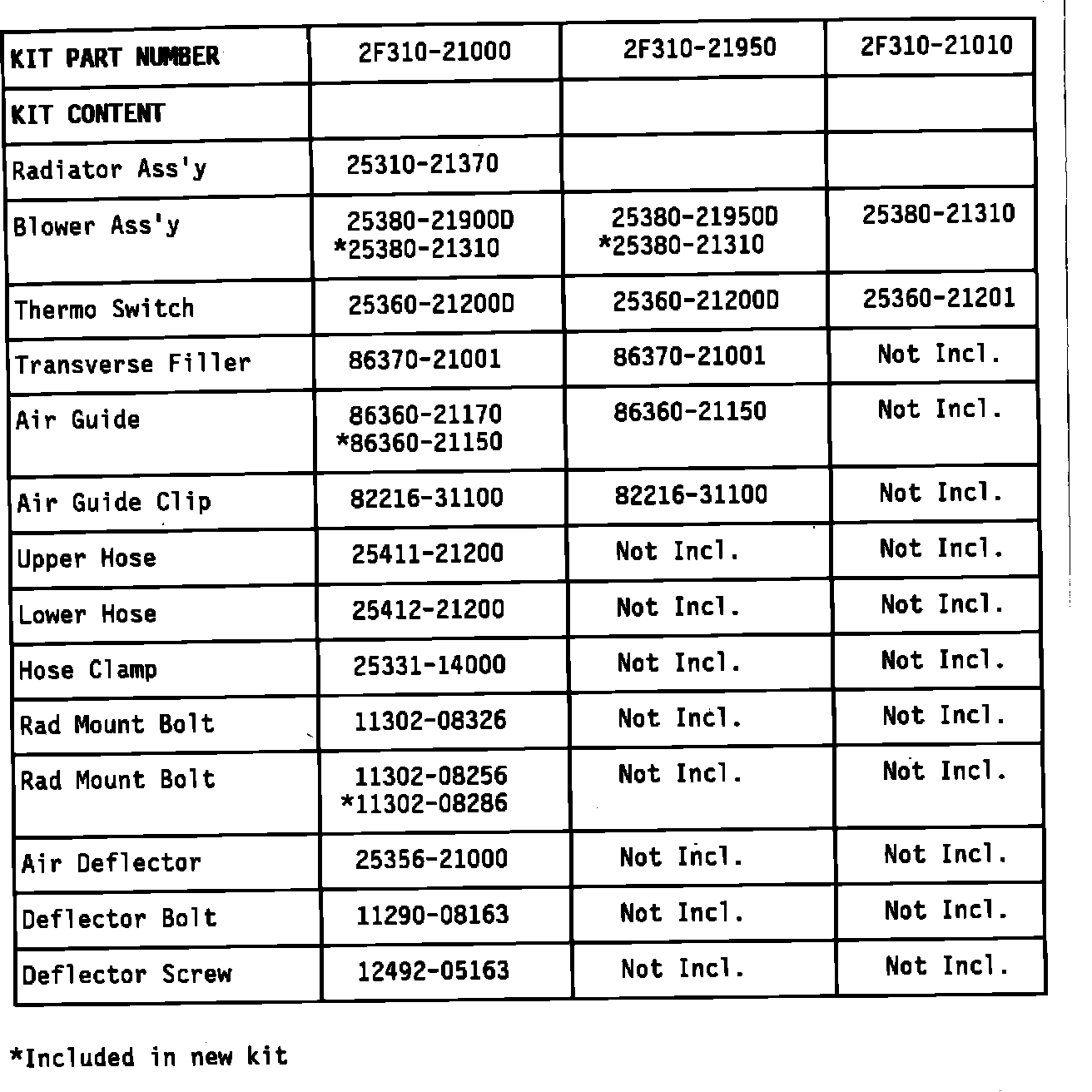

See Page 2 for Kit Contents.
Hot Weather Cooling Kit Production Application


Transmission Model Year and Production Date Kit P/N

Automatic 1987 model and 1988 model to 8/10/87 2F310-21000
1988 model from 8/11/87 to 12/10/87 2F310-21010

Manual 1987 model and 1988 model to 11/03/87 2F310-21950
1988 model to 11/03/87 2F310-21010


For correct diagnostic procedures, please refer to the following TSB's:

ENGINE 012 ENGINE 015
