Passive Restraint System - Wiring Diagrams
88hyundai01Group: ELECTRICAL
Number: 024
Date: JANUARY 1988
Model: EXCEL
Subject
PASSIVE RESTRAINT WIRING DIAGRAMS

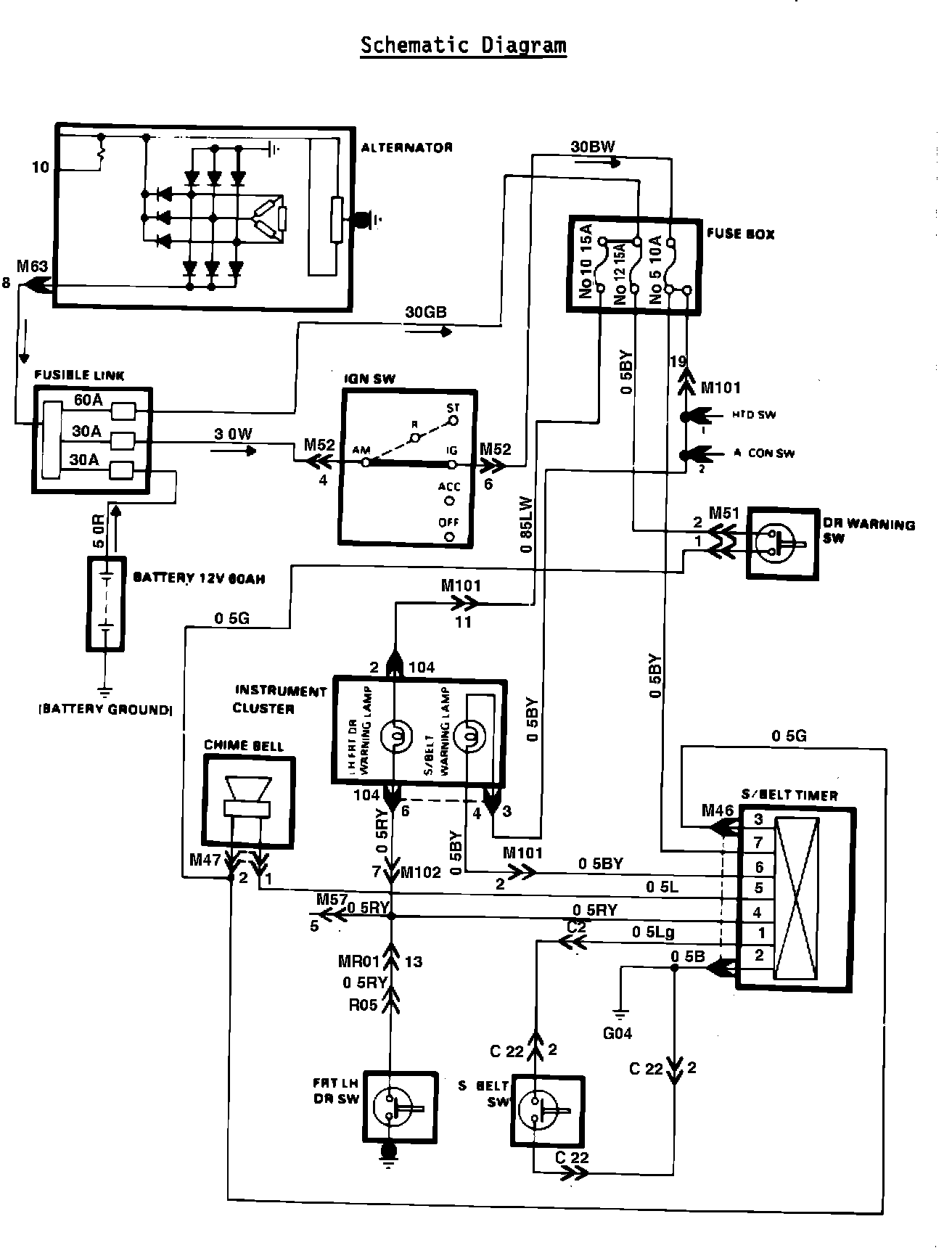

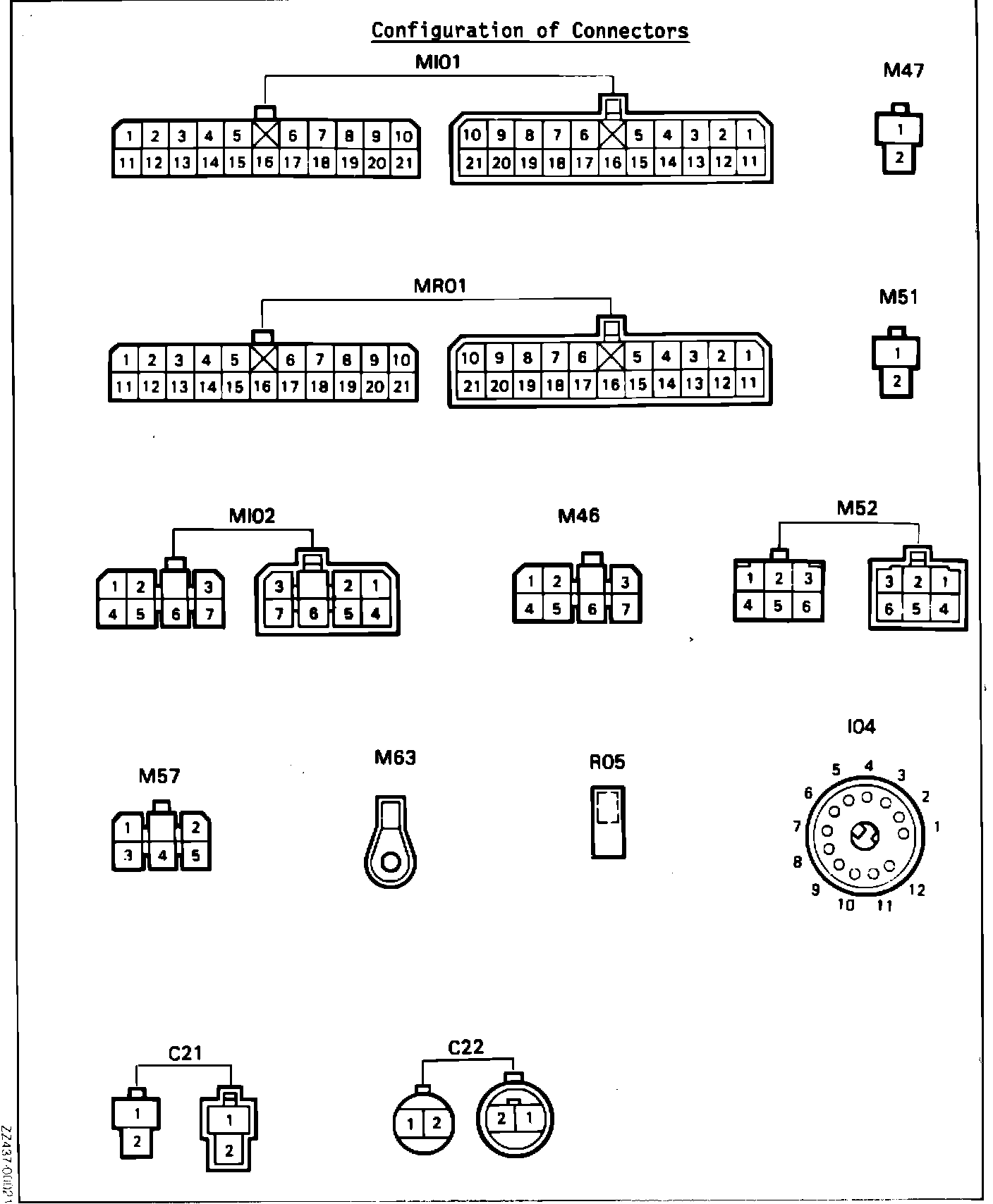

The 1988 Excel Shop Manual does not contain complete wiring diagrams for vehicles equipped with passive restraint seat belts. Please refer to the following wiring diagrams and illustrations when working on the passive restraint electrical system:
