Slow Blow Fuse - Locations

88hyundai01

Group: ELECTRICAL
Number: 025

Date: JANUARY, 1988

Model: EXCEL
Subject


SLOW BLOW FUSE LOCATIONS

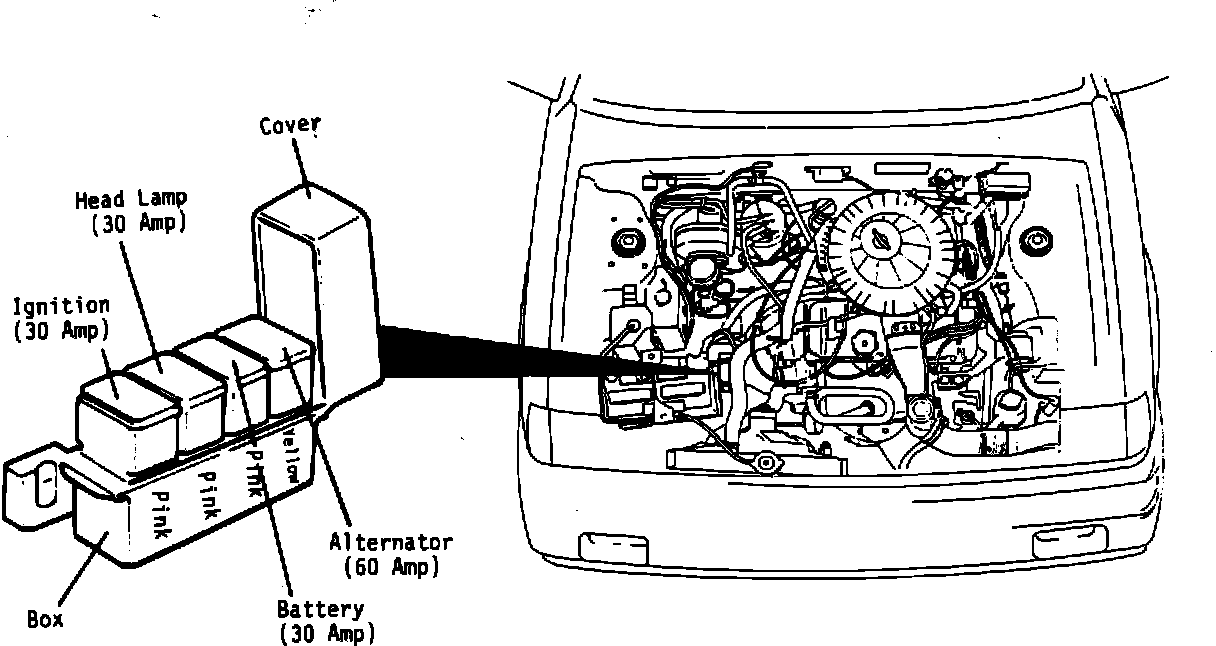

There are four slow blow fuses located in the fuse box shown below. It is extremely important that the proper value fuse be used in each location. Never attempt to rectify any electrical problems by installing higher capacity fuses to reduce vehicle's susceptibility to blowing fuses. This short cut method can lead to serious vehicle damage.
