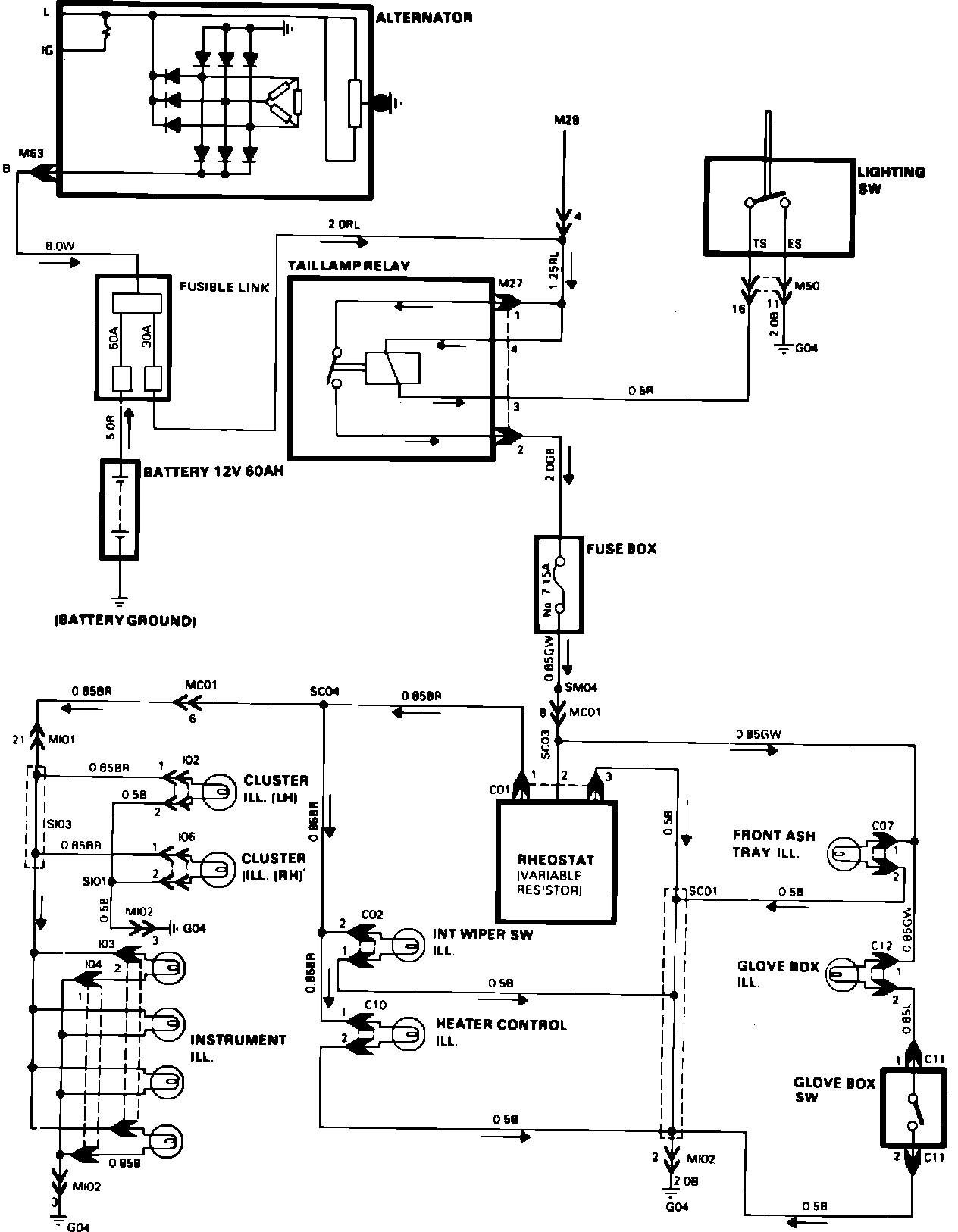

Instrument Cluster / Carrier
Instrument Cluster / Carrier
Instrument Panel Light:
Instrument Panel Illumination:
