Operation CHARM: Car repair manuals for everyone.
Home >> Hyundai >> 1989 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

Tail Lamp

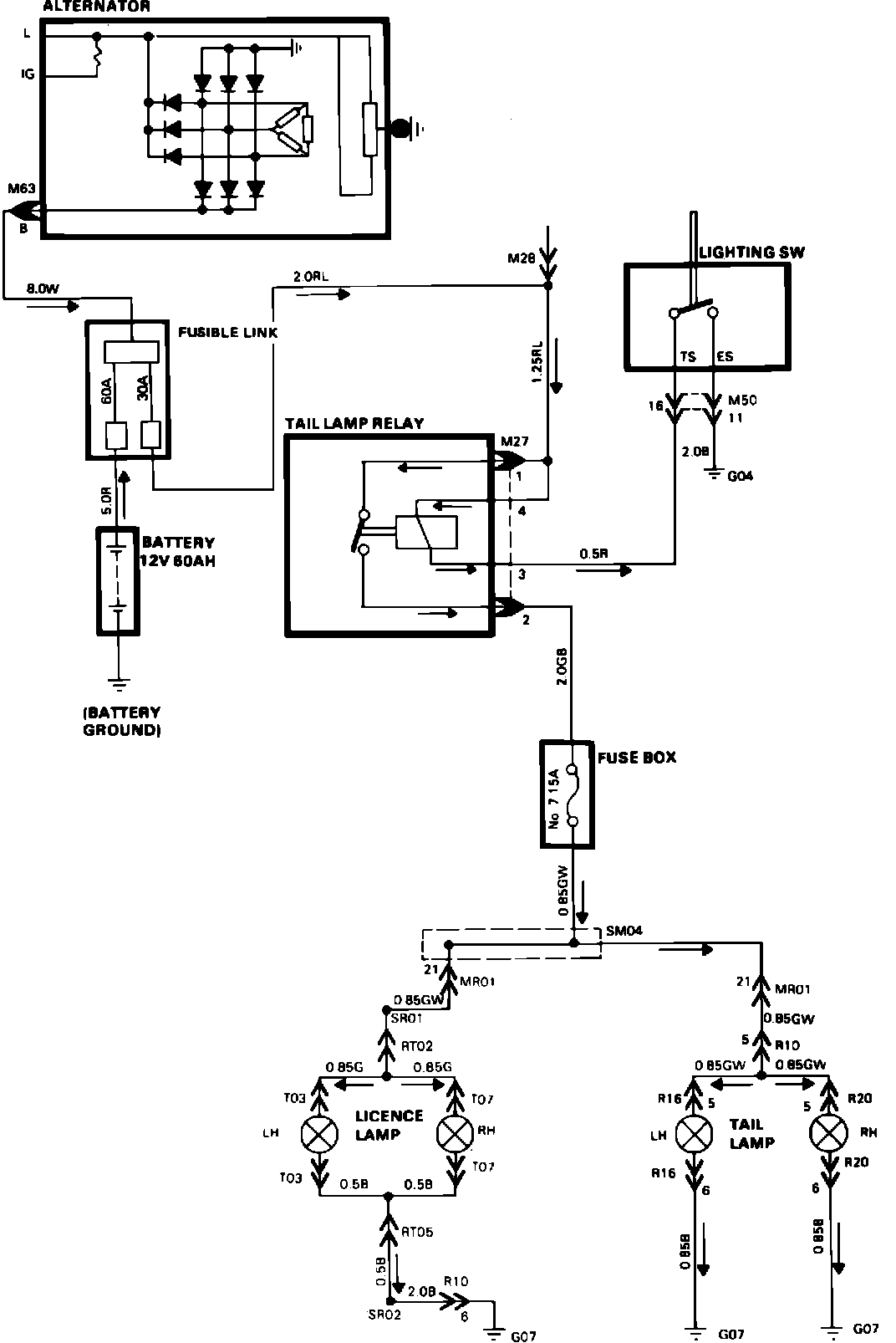

License Plate & Tail Lights:
