Home >> Hyundai >> 1989 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Locations

Condenser Fan Motor Relay: Locations

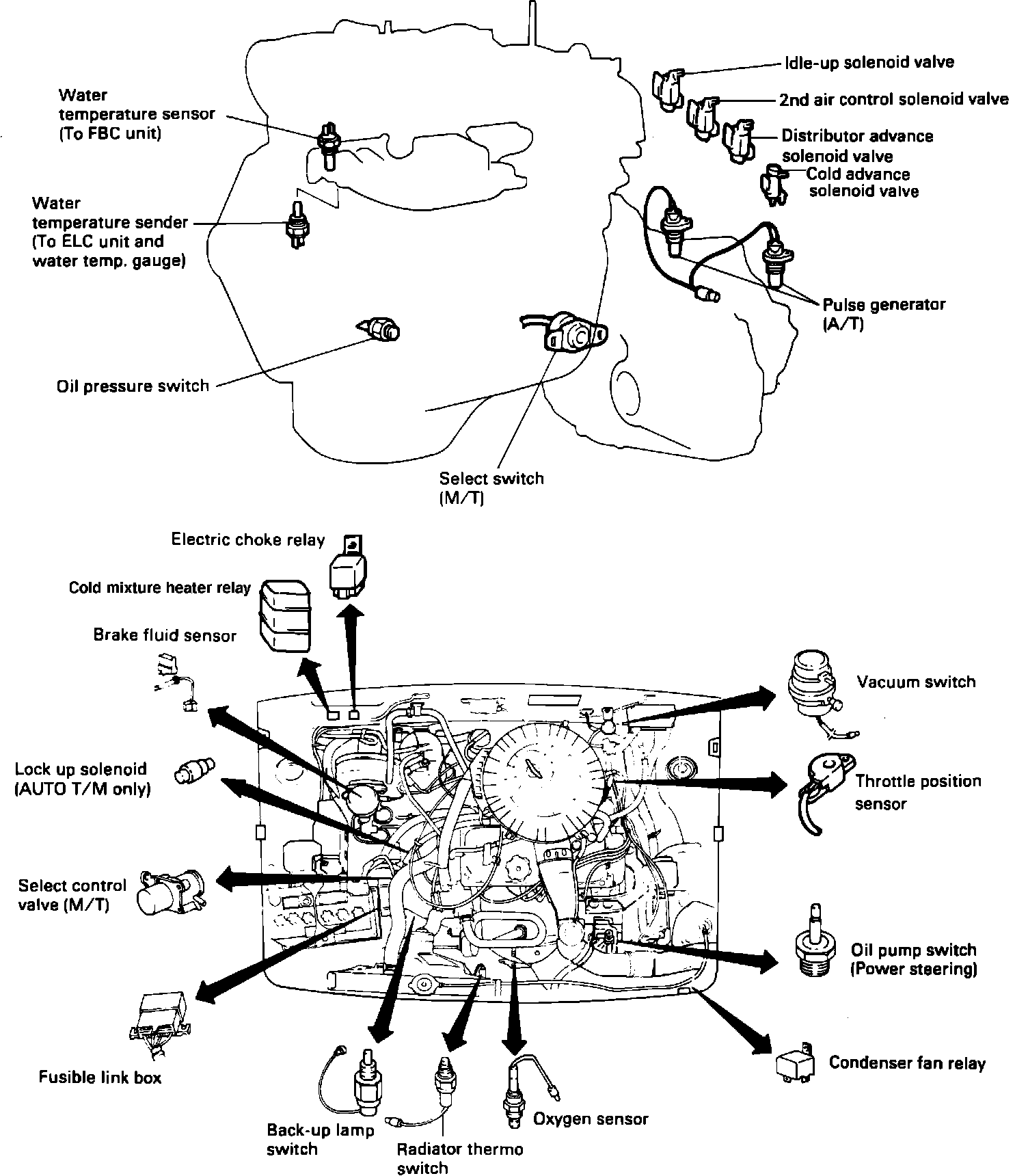

Switch, Relay And CEC Engine Component Locations:
