Recall - High Altitude Emissions
Group: CAMPAIGN BULLETINNumber: 93-01-003
Date: SEPTEMBER, 1993
Model: 1989 EXCEL (HIGH ALTITUDE)
Subject
1989 EXCEL HIGH ALTITUDE EMISSIONS CAMPAIGN
INSPECTION AND REPAIR PROCEDURES
Getting Started
1. To begin, open the hood and install fender covers on both fenders.
2. Disconnect the intake air temperature sensor and vacuum hoses, and remove the air cleaner assembly.
Enlarging the Secondary Air Port

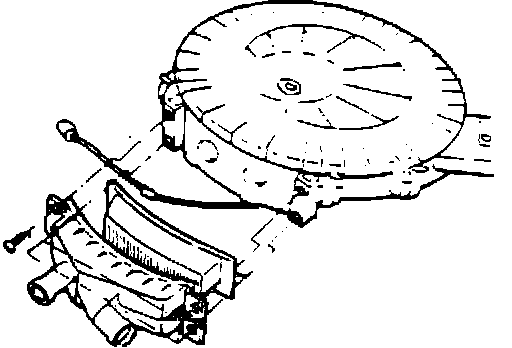

3. Disassemble the secondary air filter case from the air cleaner assembly and remove the filter from the case.

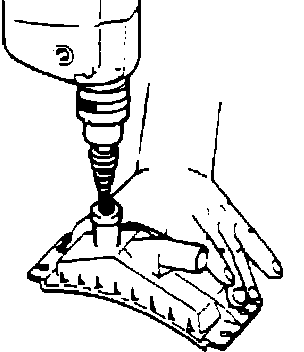

4. Enlarge the straight secondary air port in the filter case to 15mm with the step drill provided. If necessary, remove any burrs with a file after drilling.
5. Clean the filter case with compressed air, install the filter into the case and reassemble the case onto the air cleaner assembly.
CAUTION:
Always wear safety goggles when drilling and using compressed air to prevent any foreign matter from getting into your eyes.
Enlarging the Carburetor Secondary High Altitude Air Bleed Tube Orifice

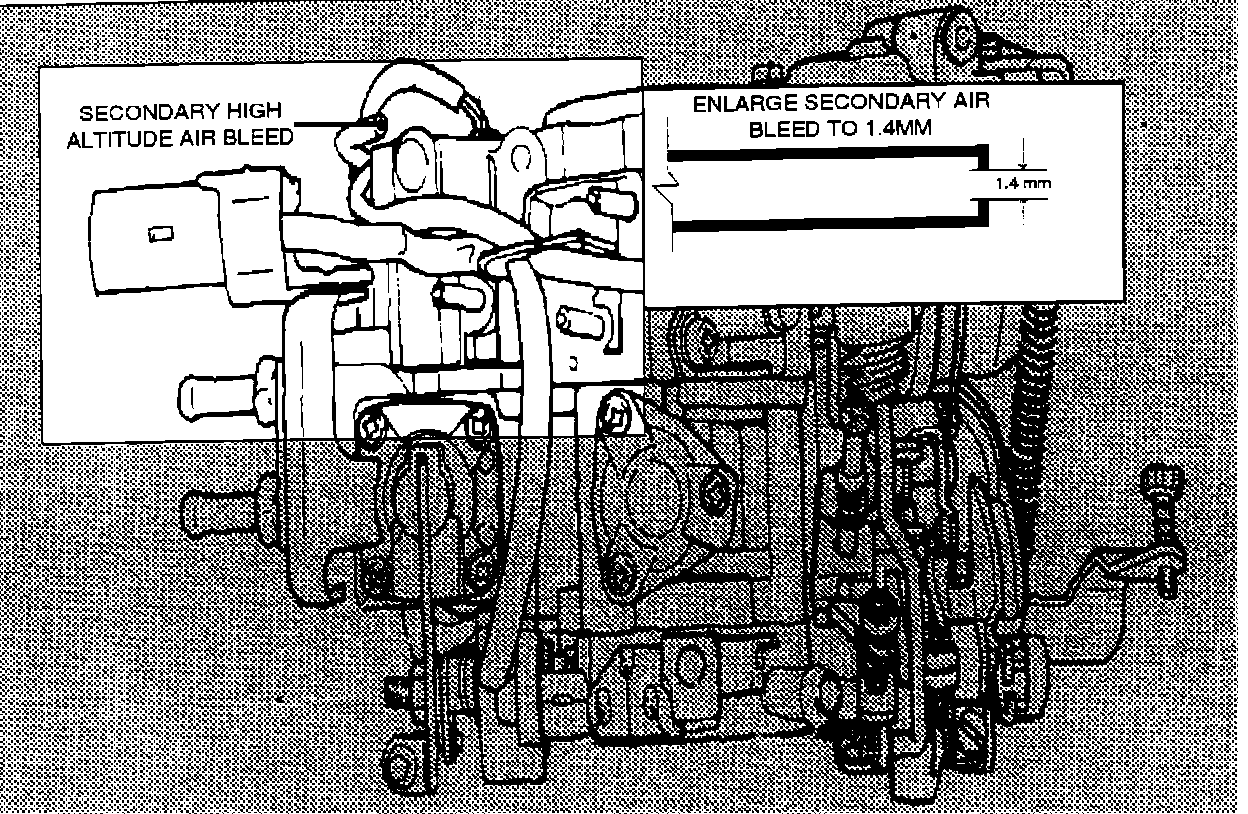

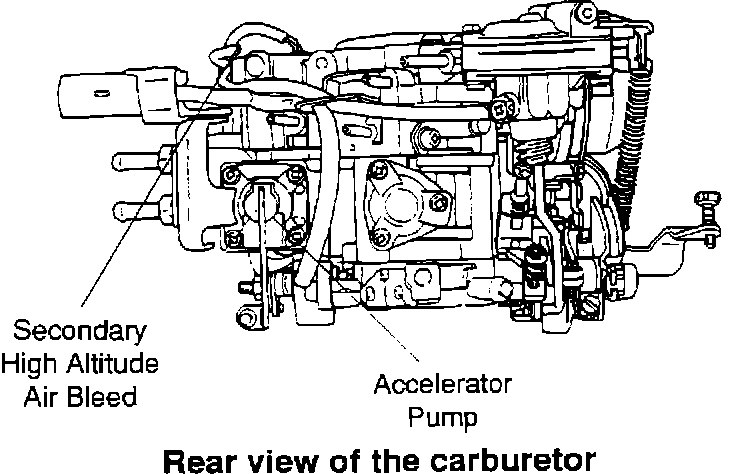

6. Locate the secondary high altitude air bleed tube.
7. Using a clean shop rag, cover both bores of the carburetor.

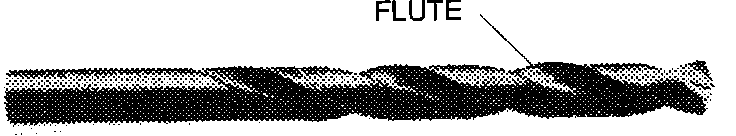

8. Insert the 1.4mm drill into the pin vise. Using a multi-purpose grease, pack the flutes of the drill.
9. Using the 1 .4mm drill and pin vise, slowly drill out the 9mm secondary high altitude air bleed tube orifice to the secondary high altitude air bleed tube's new diameter.
10. Wipe away any grease that remains from drilling. Using caution, blow away all of the debris remaining from the drilling.
11. Remove shop rag from carburetor.
12. Re-connect the intake air temperature sensor and vacuum hoses, and reinstall the air cleaner assembly.
Completing the Procedures

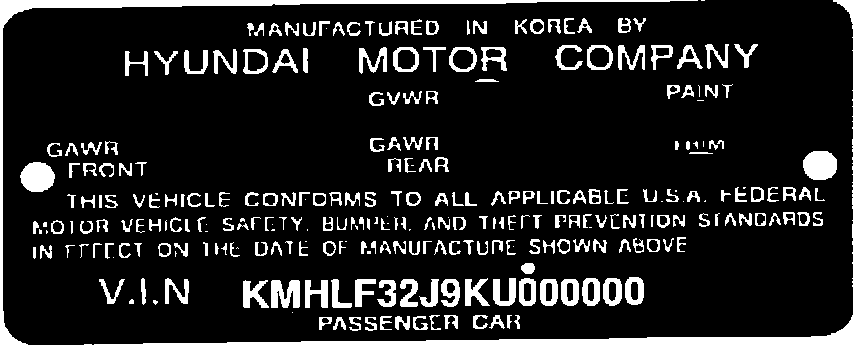

13. Before closing the hood, place a punch mark over the 12th character on the firewall identification plate. This will indicate that the campaign procedures have been completed.
14. An Authorized Modifications Label will need to be applied to the underside of the hood. Wipe the surface clean before applying the new label.
15. On the Authorized Modifications Label, you will need to write in the following information:
CHANGE AUTHORITY: 013
DEALER CODE: Your Dealer Code
REPAIR DATE: The date of the repair
Remove the backing from the clear adhesive on the front of the label, and press down on the label.
WARRANTY INFORMATION
Note:

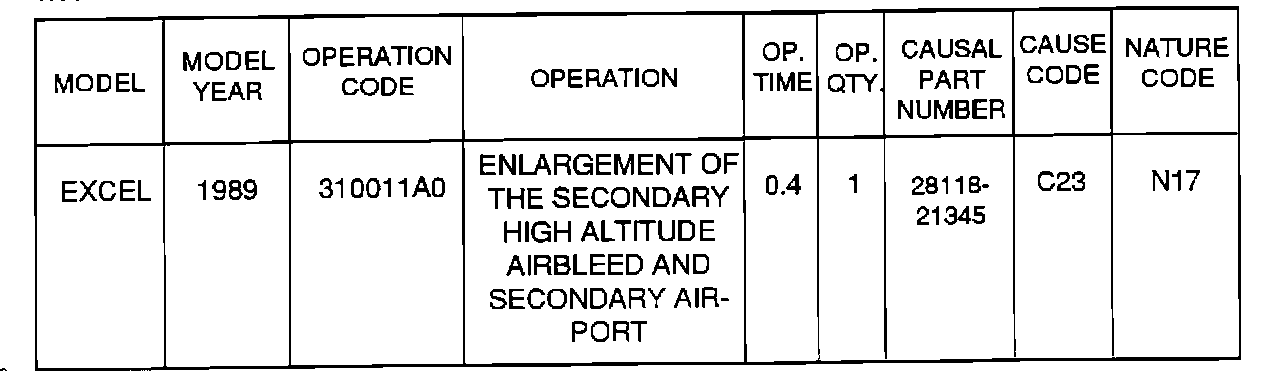

Submit all claims using the CAMPAIGN/VALUE CARE MAINTENANCE CLAIM SCREEN.
