Automatic Transmission/Transaxle: Testing and Inspection

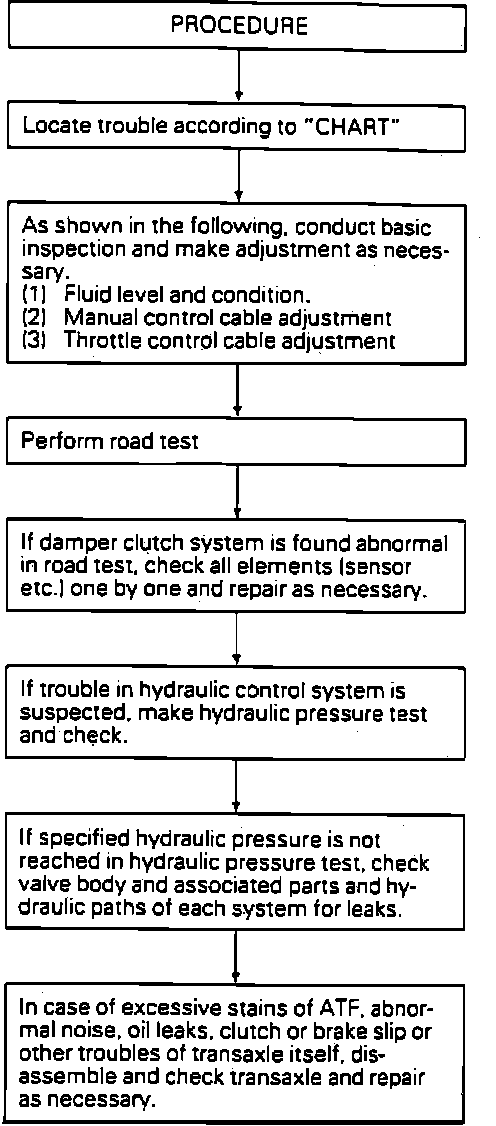

Fig. 3 Troubleshooting Flow Chart:

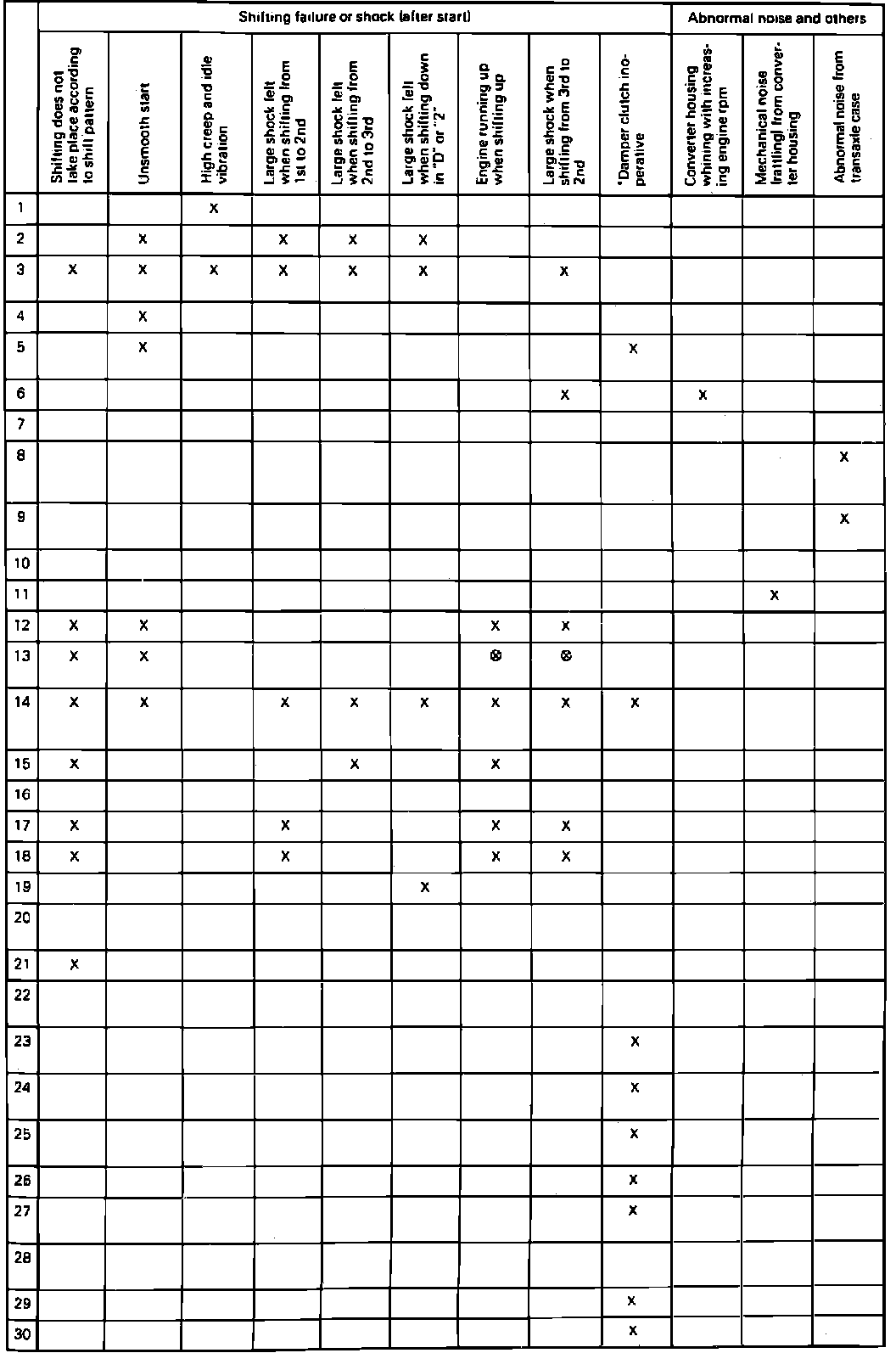

Fig. 4 Transaxle Troubleshooting Chart (Part 1 Of 2):



Fig. 4 Transaxle Troubleshooting Chart (Part 2 Of 2):
