Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1989
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
>>
Seat Belt Warning and Chime

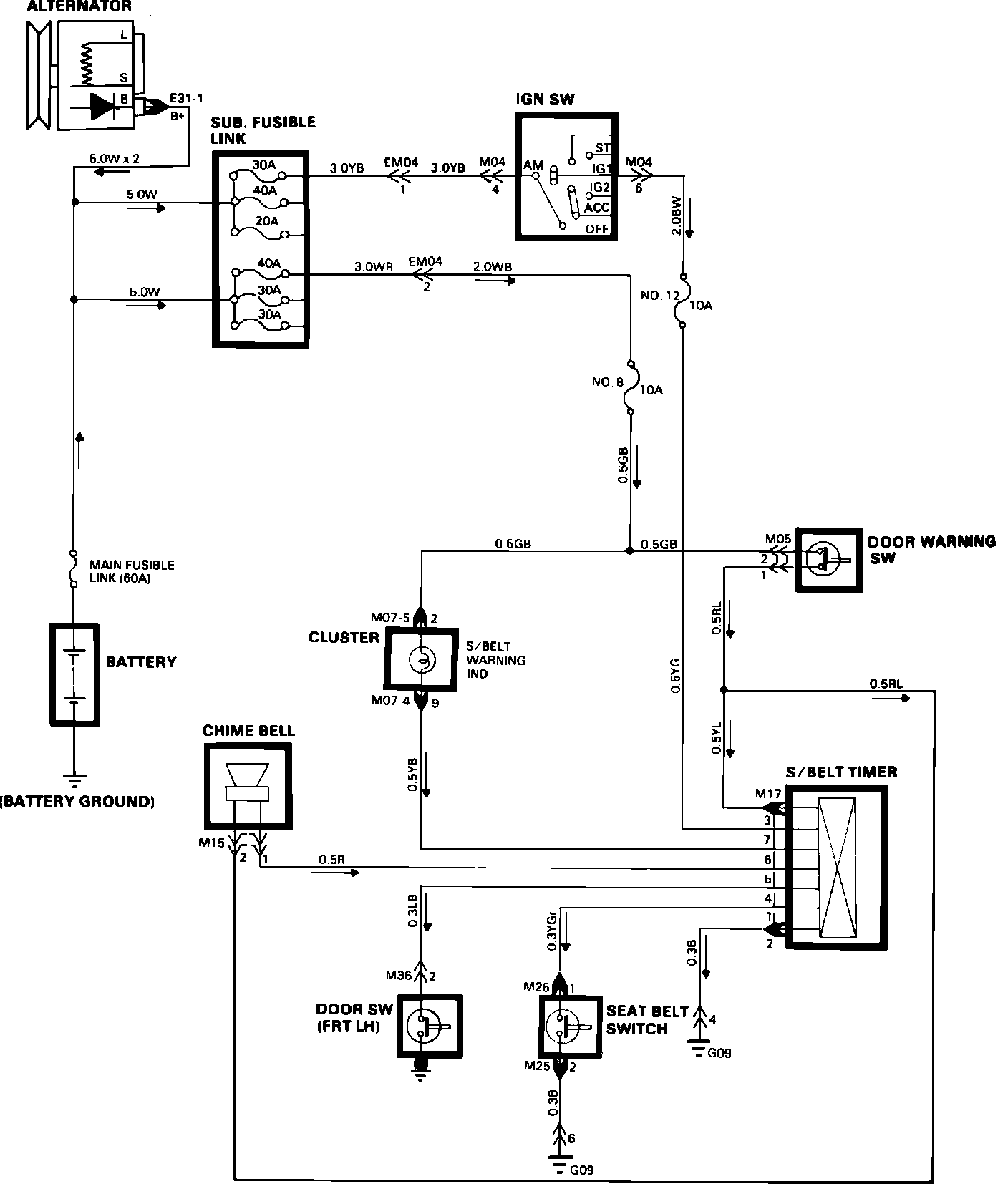

Seat Belt Warning and Chime
Seat Belt Warning (Less Passive):
