Home >> Hyundai >> 1990 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Testing and Inspection

Drive Axles, Bearings and Joints: Testing and Inspection

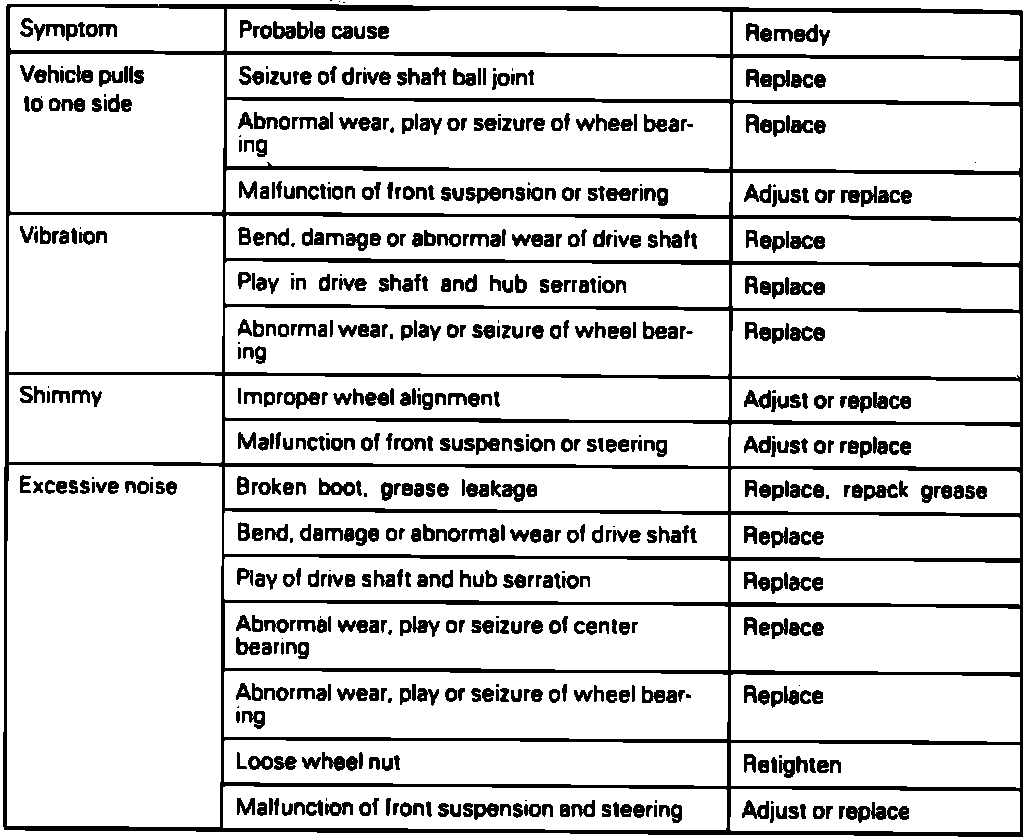

Fig. 1 Troubleshooting:



Troubleshooting Front Wheel Drive:
