Electrical Diagrams

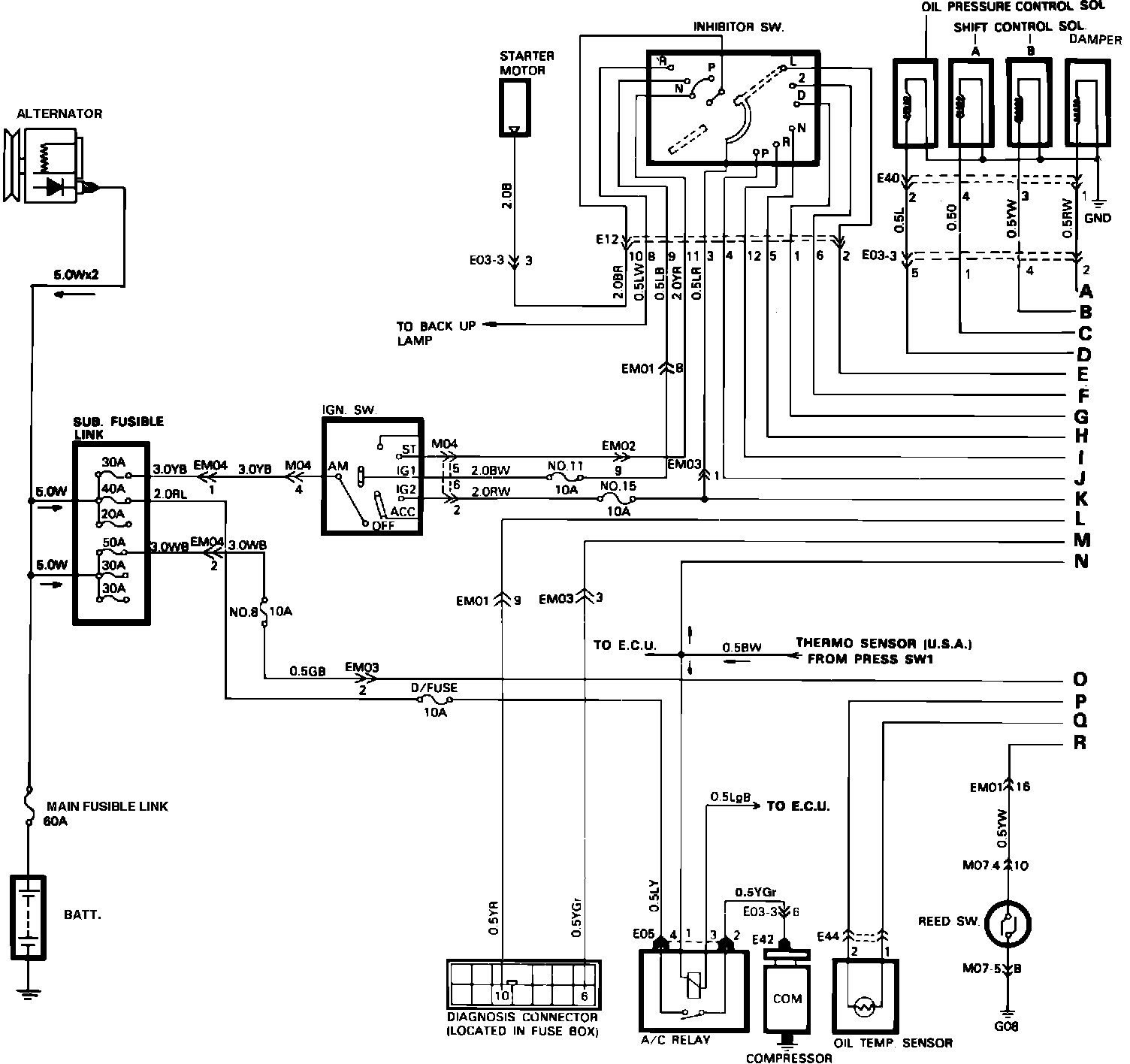

Automatic Transaxle Shift Lock System:



Automatic Transaxle Shift Lock System:
