Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

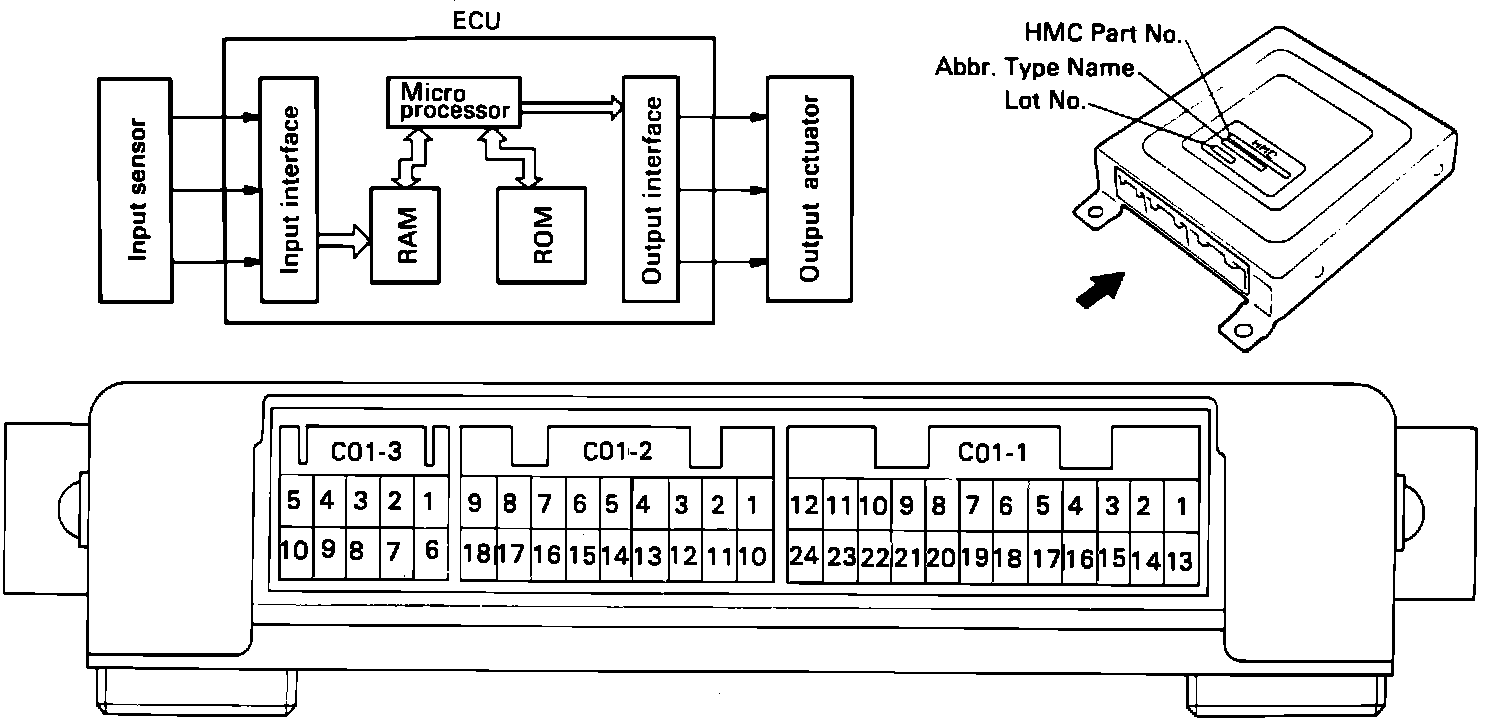

ECU Terminal Layout:
