System Diagram

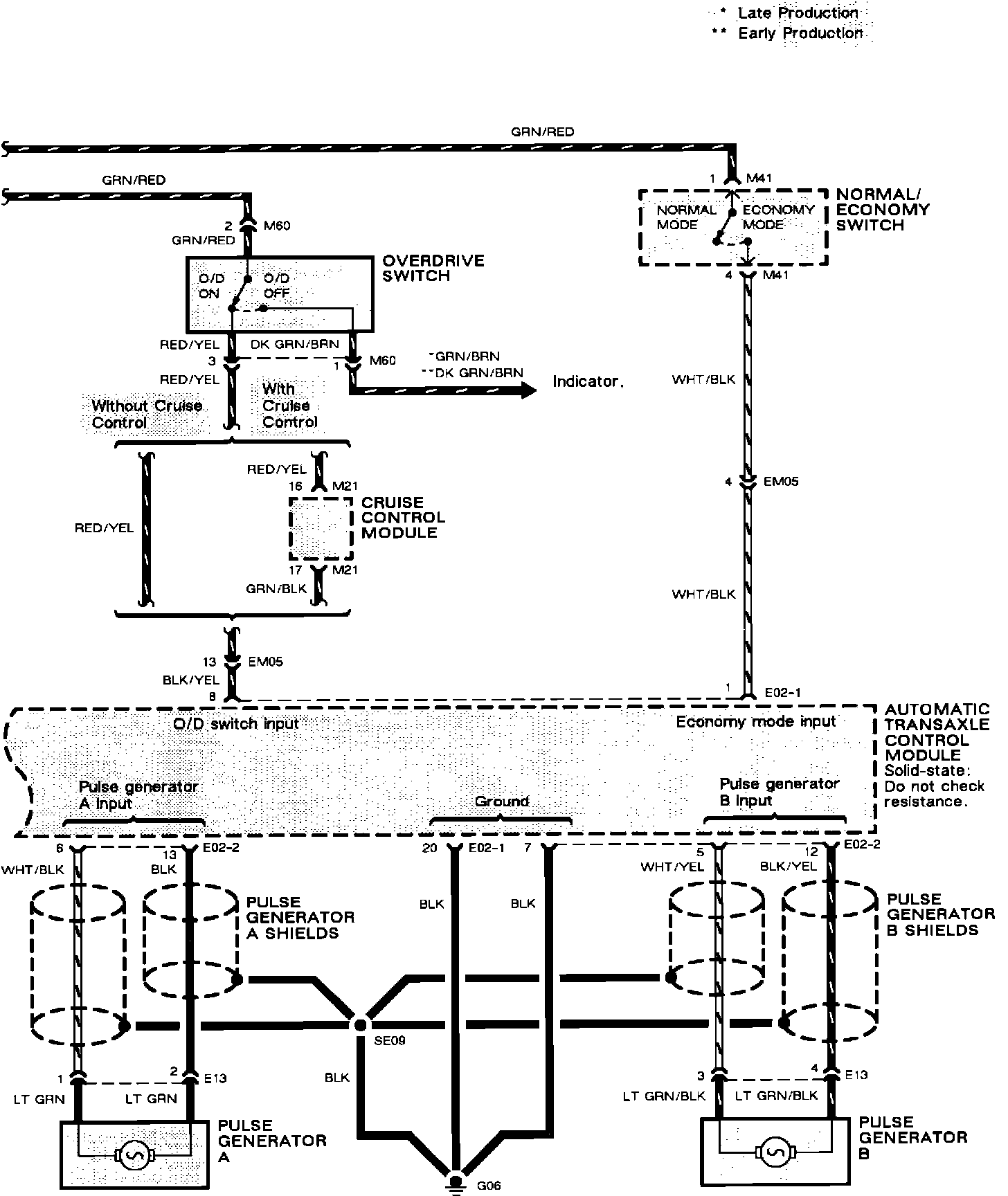

Automatic Transaxle:

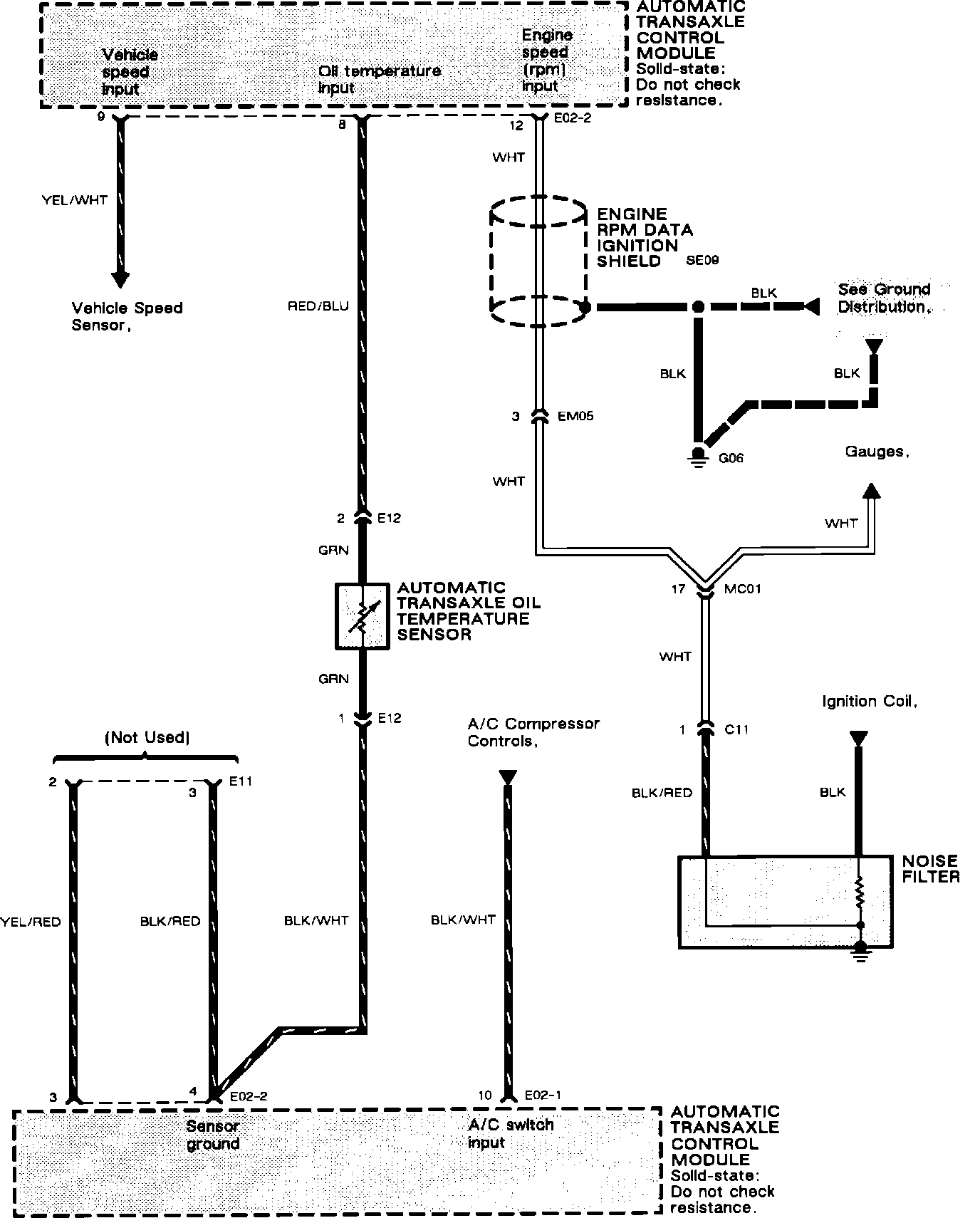

Automatic Transaxle:



Automatic Transaxle:



Automatic Transaxle:
