Home >> Hyundai >> 1992 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan Motor >> Without A/C

Without A/C

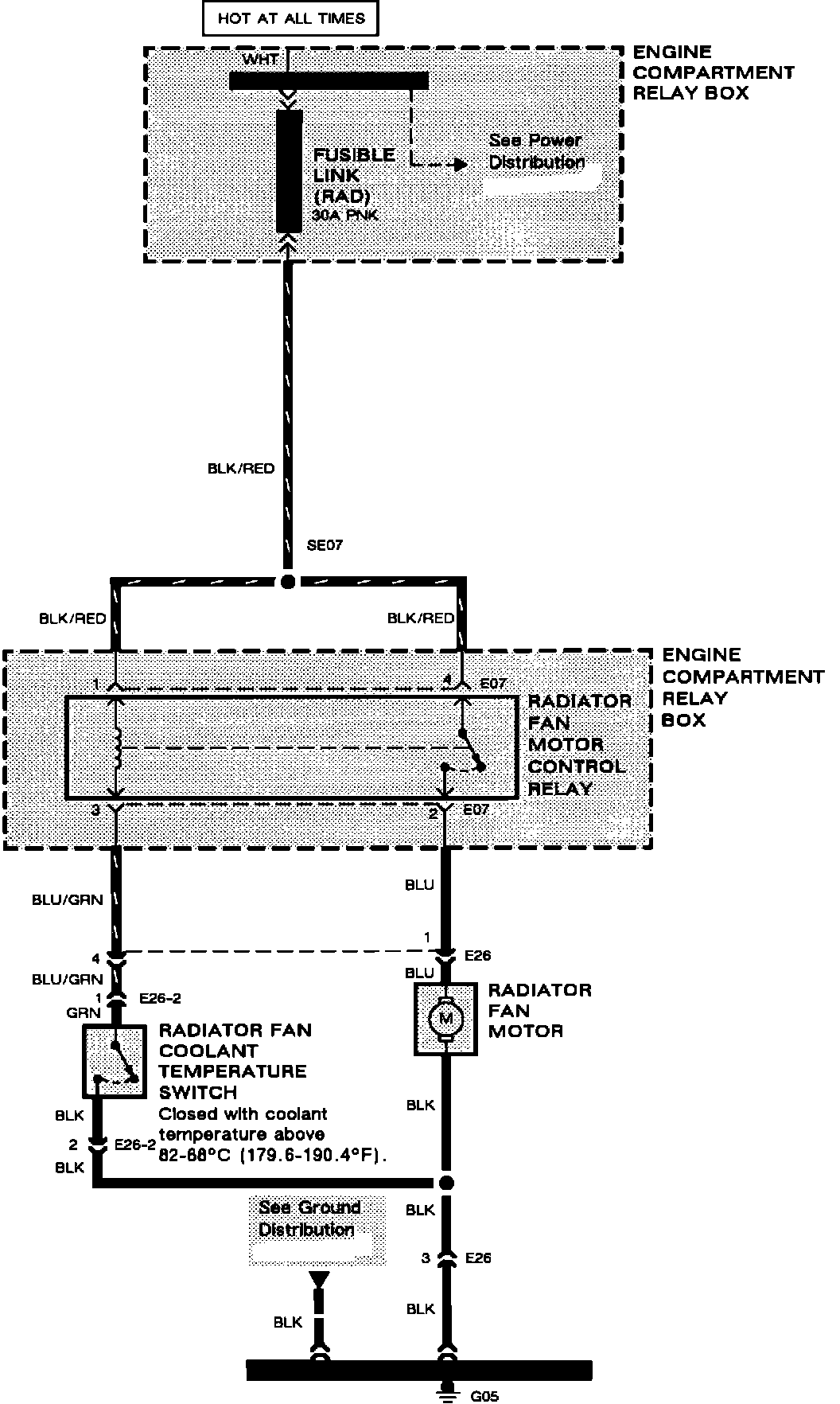

Cooling Fan: Engine (Without A/C):
