Home >> Hyundai >> 1992 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

Tail Lamp

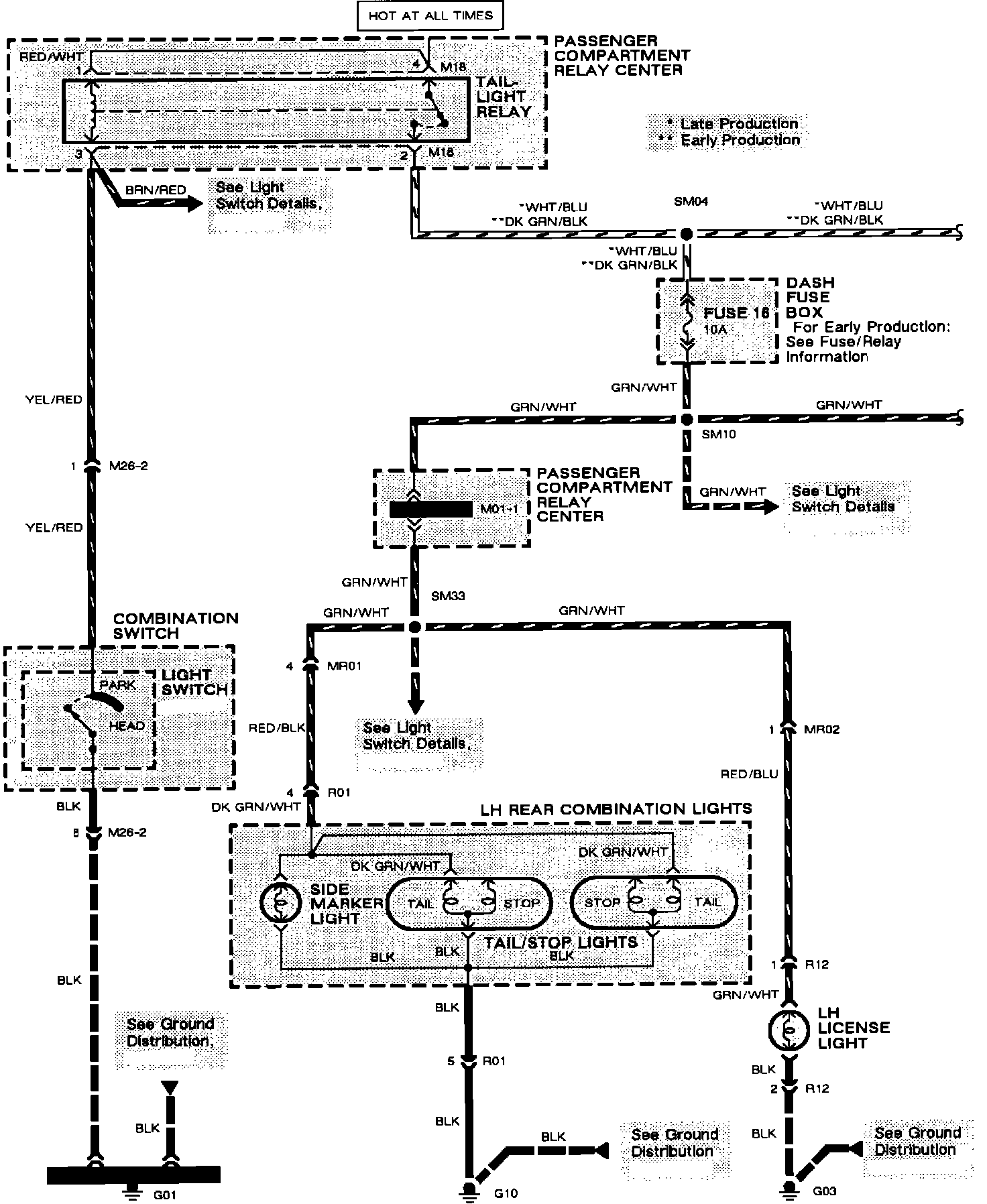

Front/Rear Side Markers, License Plate And Tail Lamps:



Front/Rear Side Markers, License Plate And Tail Lamps:
