Hyundai
>>
1992
>>
Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Main Harness
Main Harness

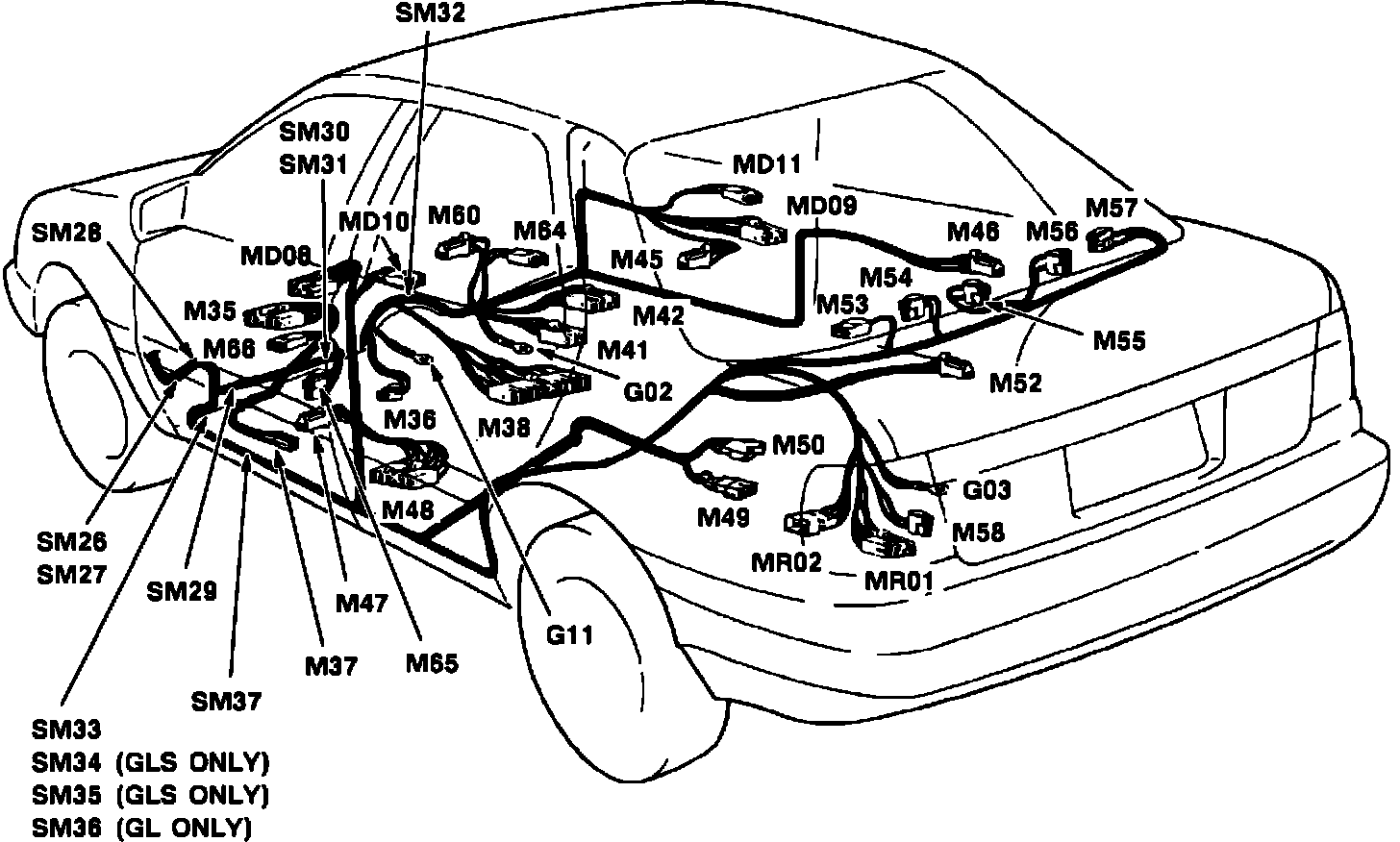

Harness Routing: Main Harness:

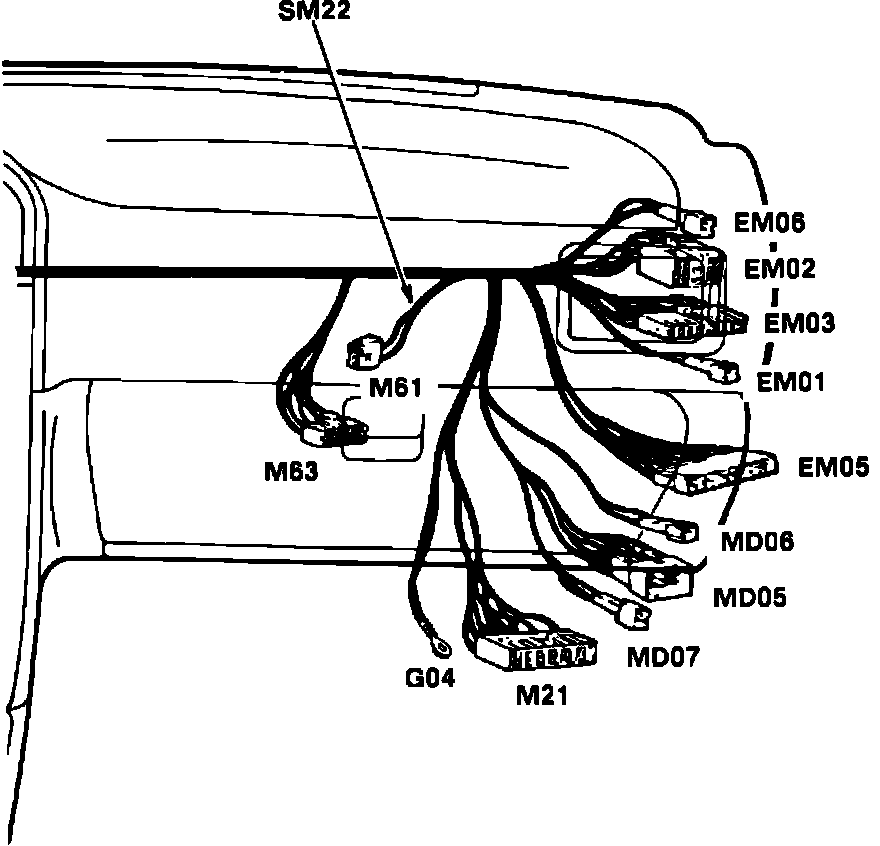

Harness Routing: Main Harness:

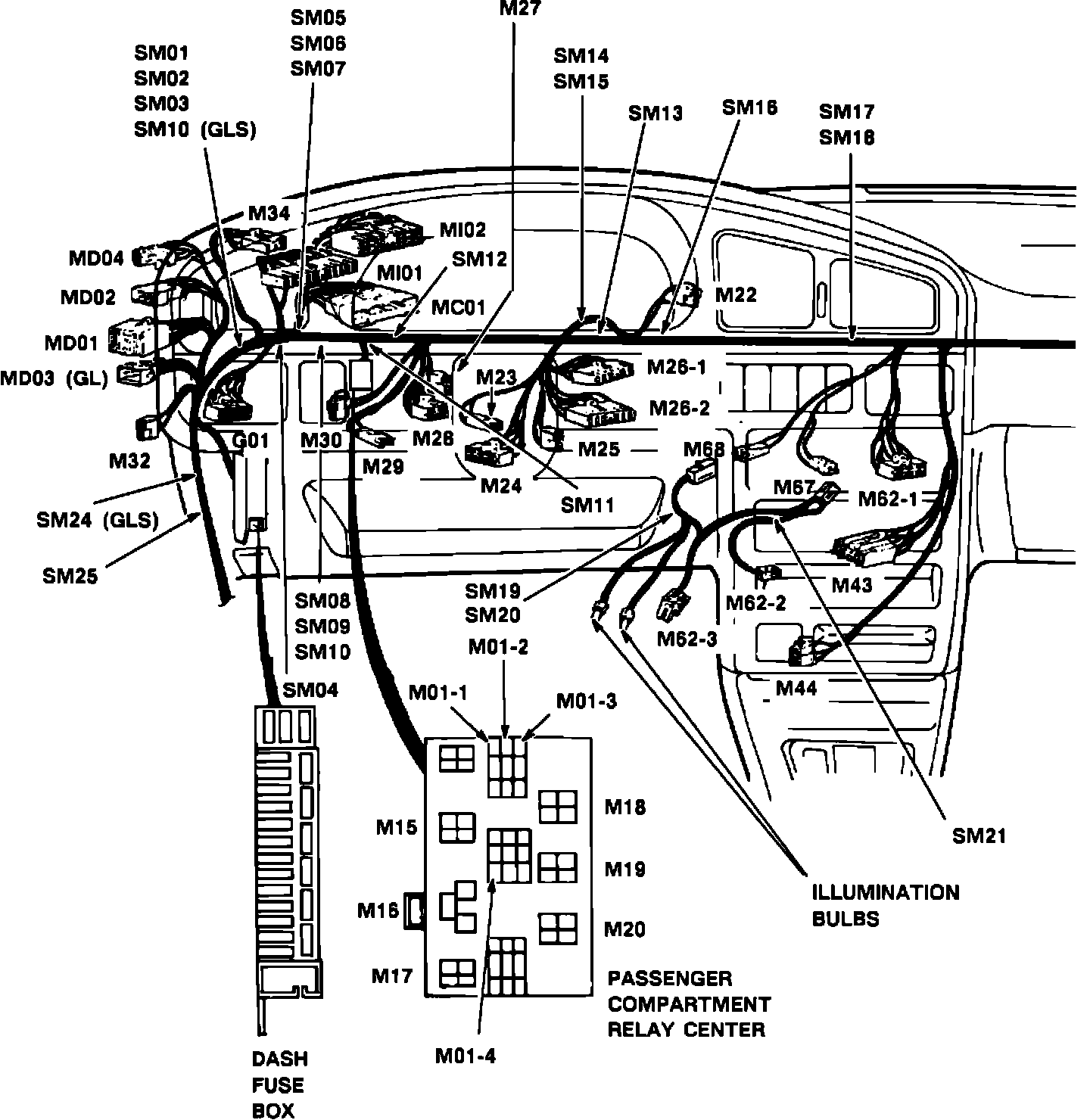

Harness Routing: Main Harness:
