Electrical Diagrams

NOTE: References to late production applies to vehicles produced after June 1991. Early production applies prior to July 1991.

PART 1 OF 8

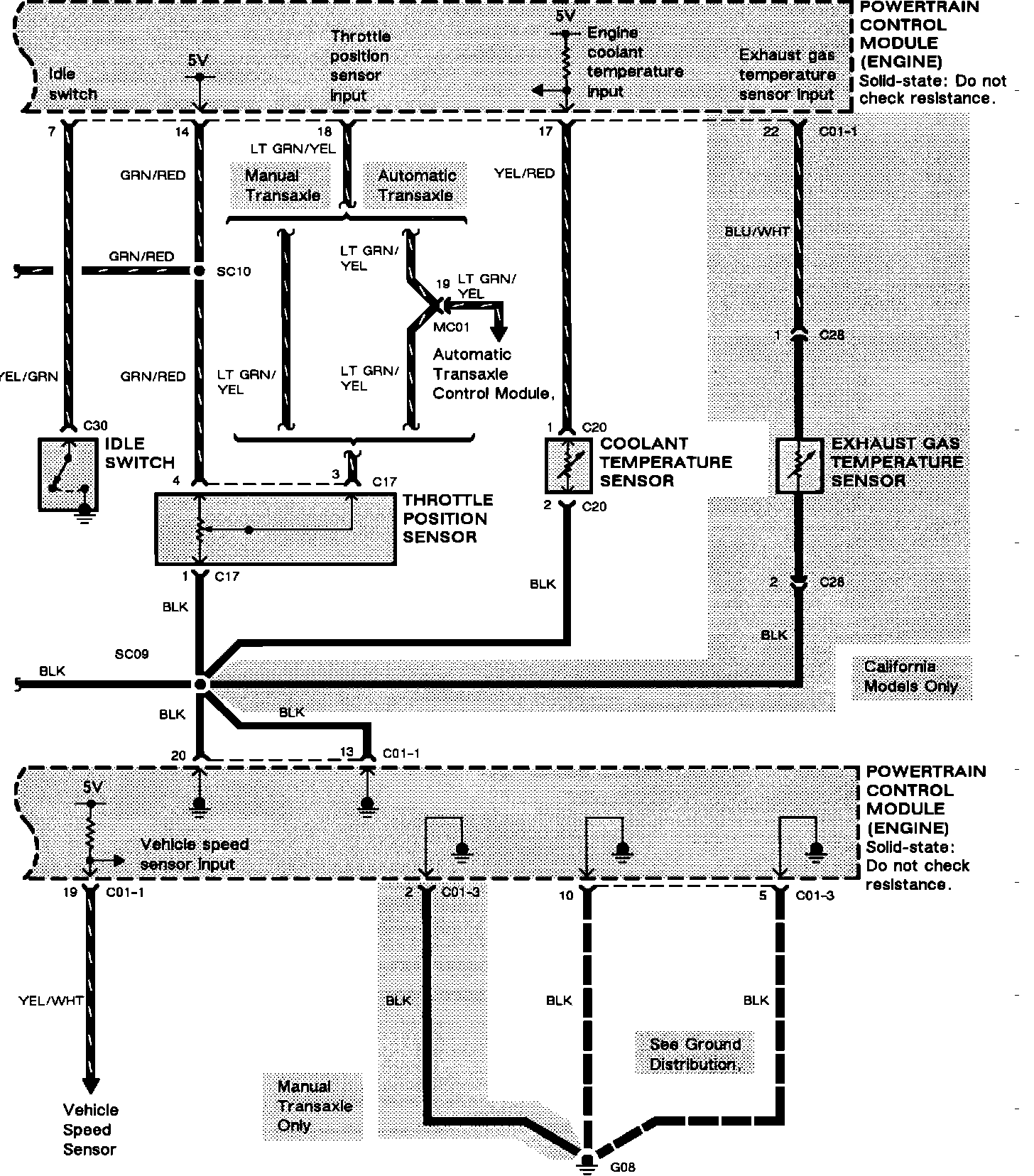

Multi-port Injection:

PART 2 OF 8

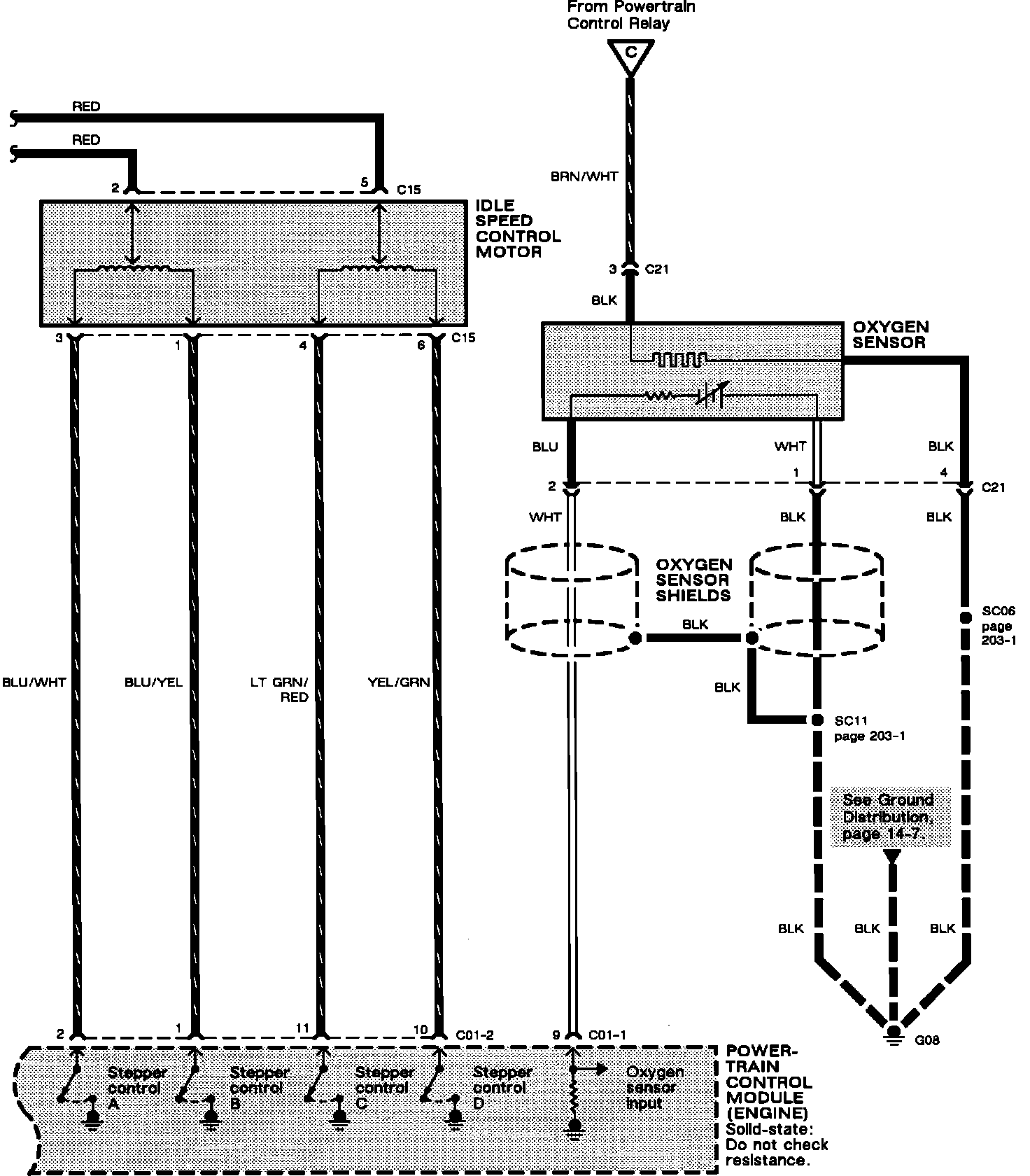

Multi-port Fuel Injection:

PART 3 OF 8

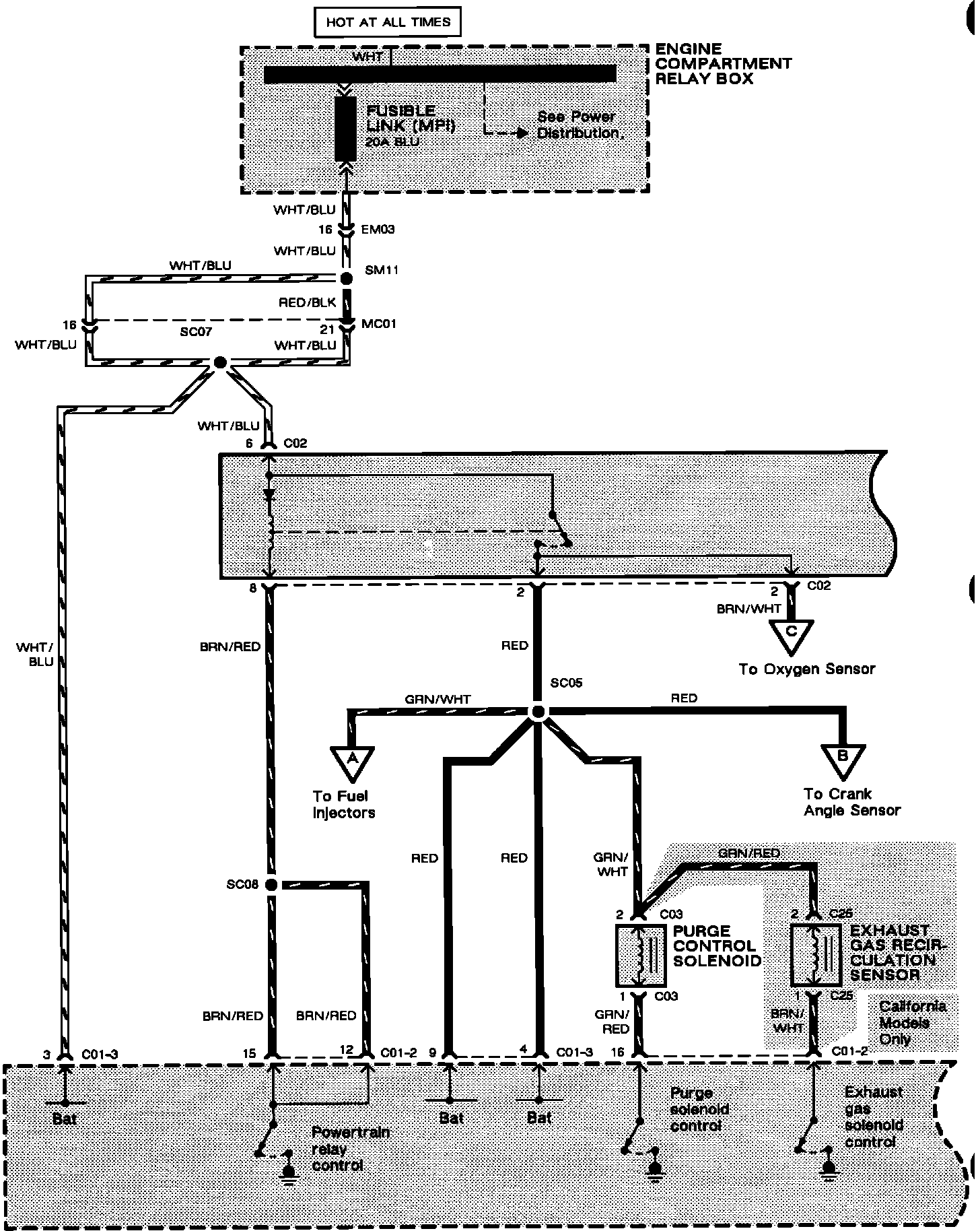

Multi-port Fuel Injection:

PART 4 OF 8

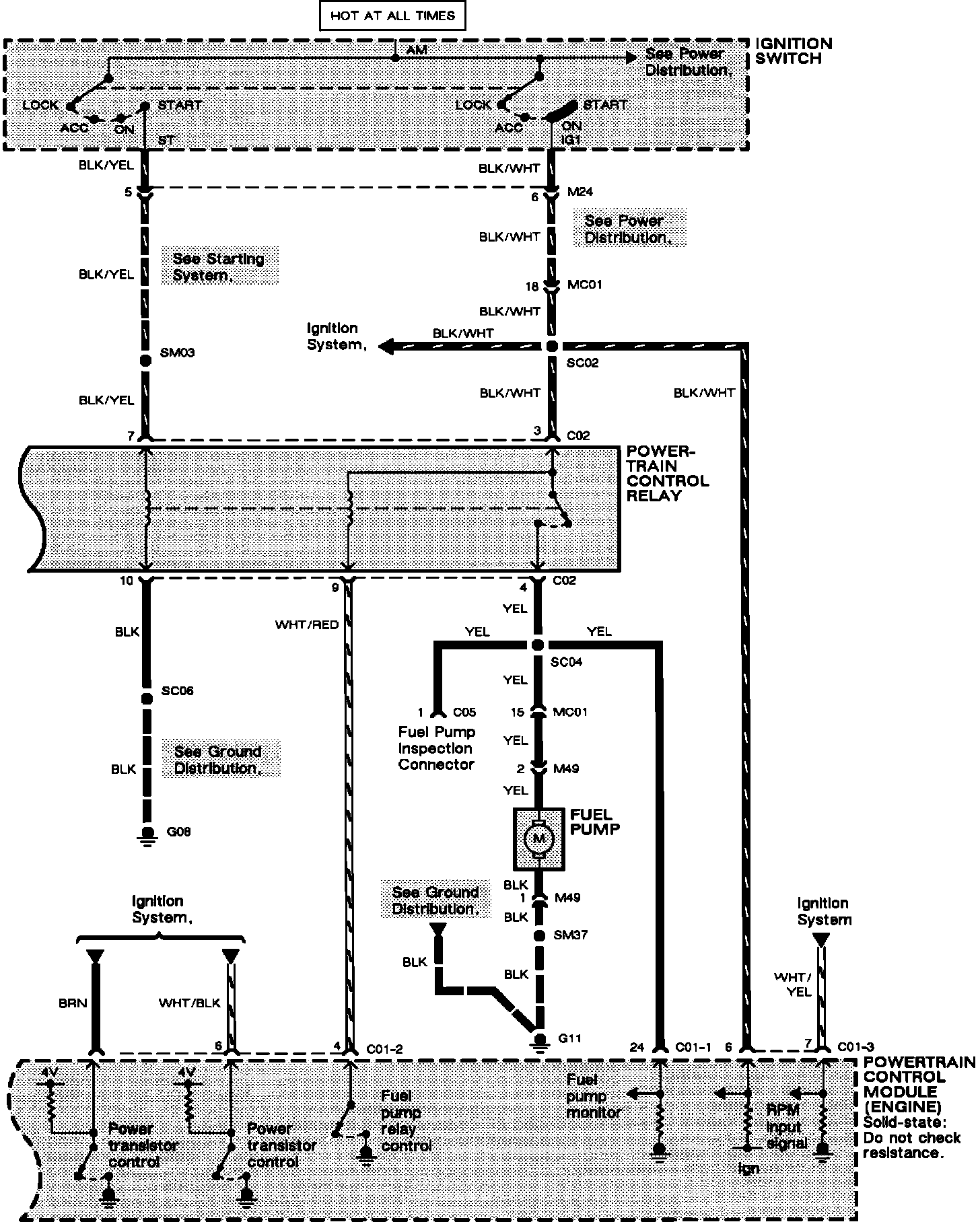

Multi-port Fuel Injection:

PART 5 OF 8

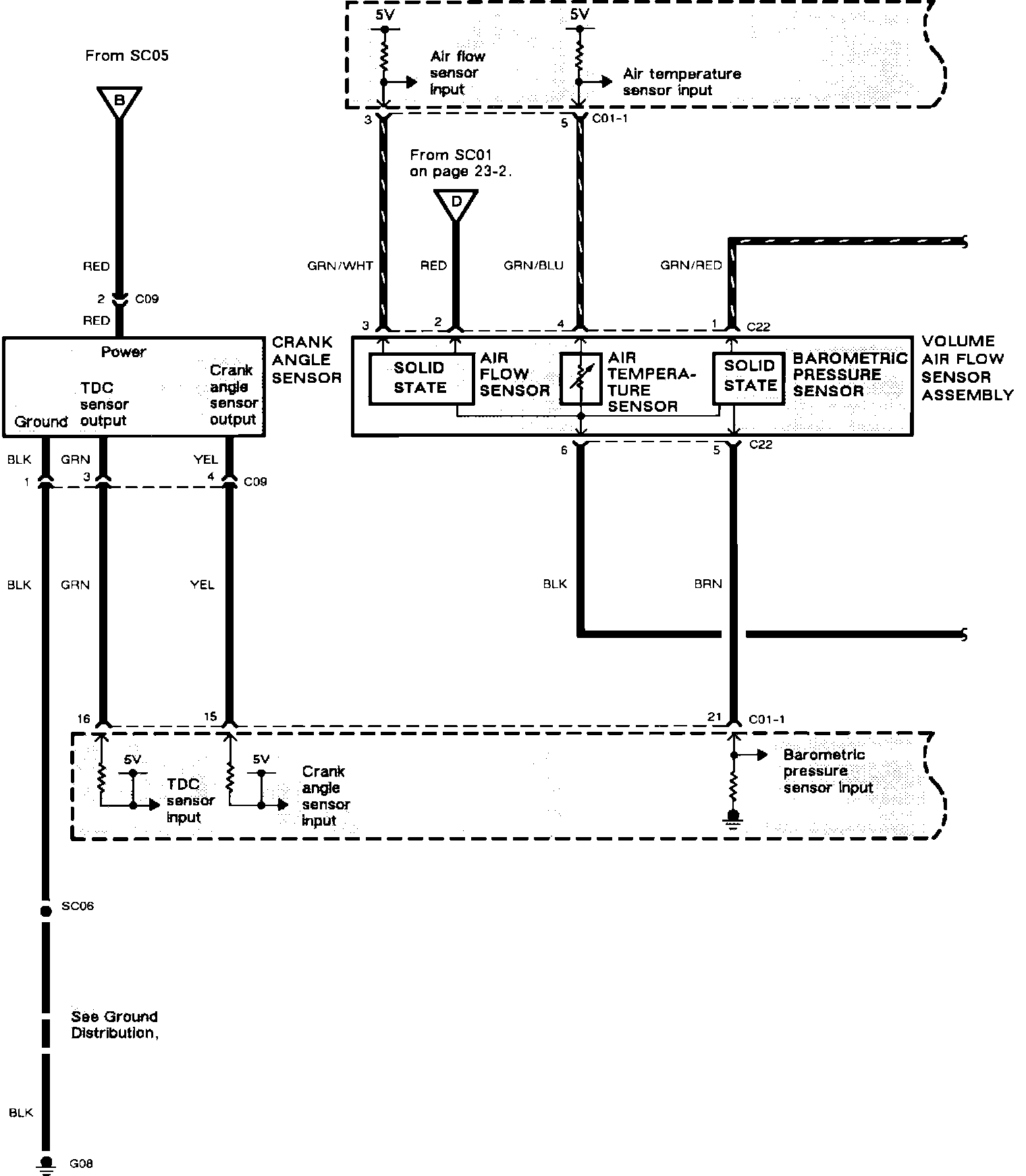

Multi-port Fuel Injection:

PART 6 OF 8

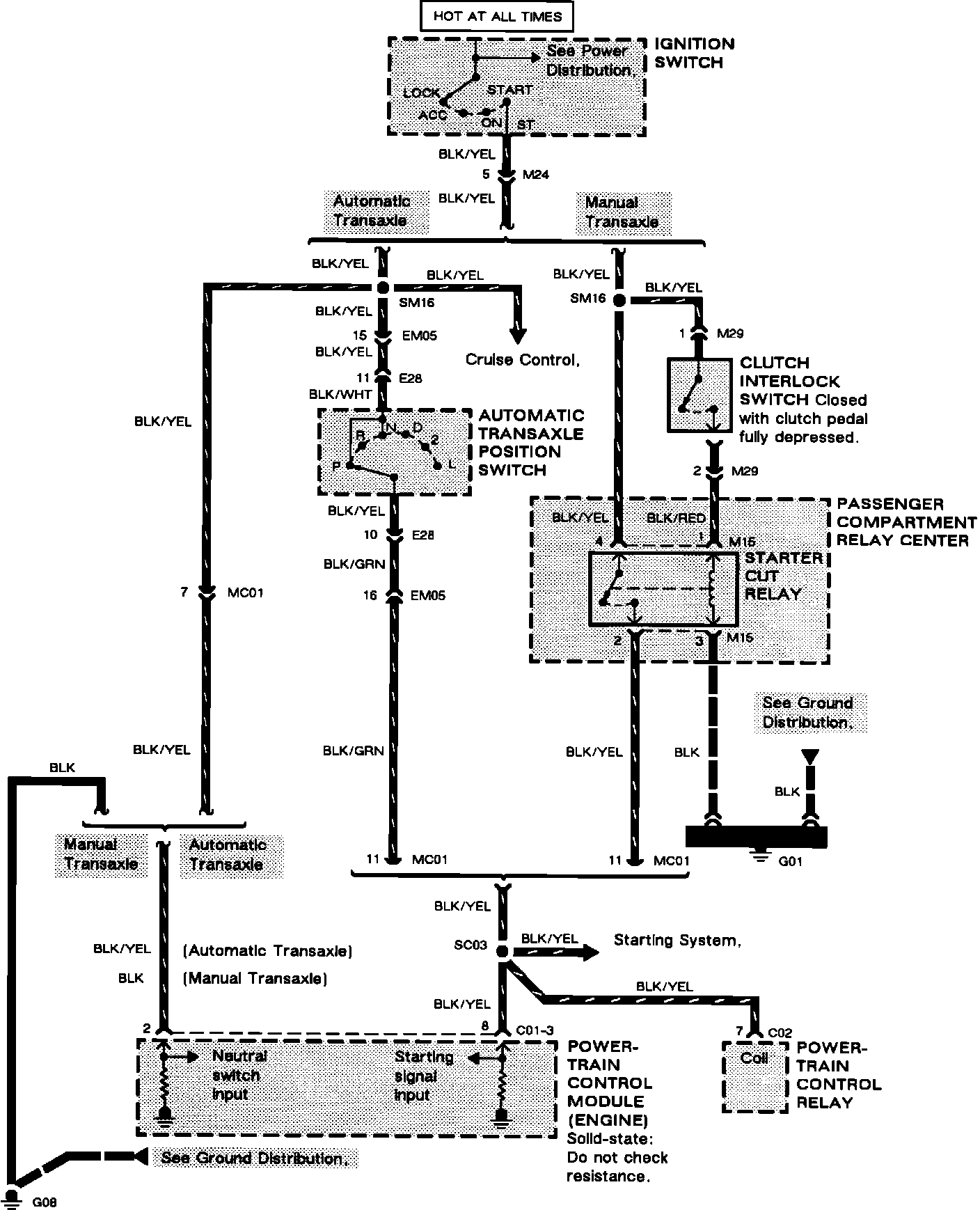

Multi-port Fuel Injection:

PART 7 OF 8

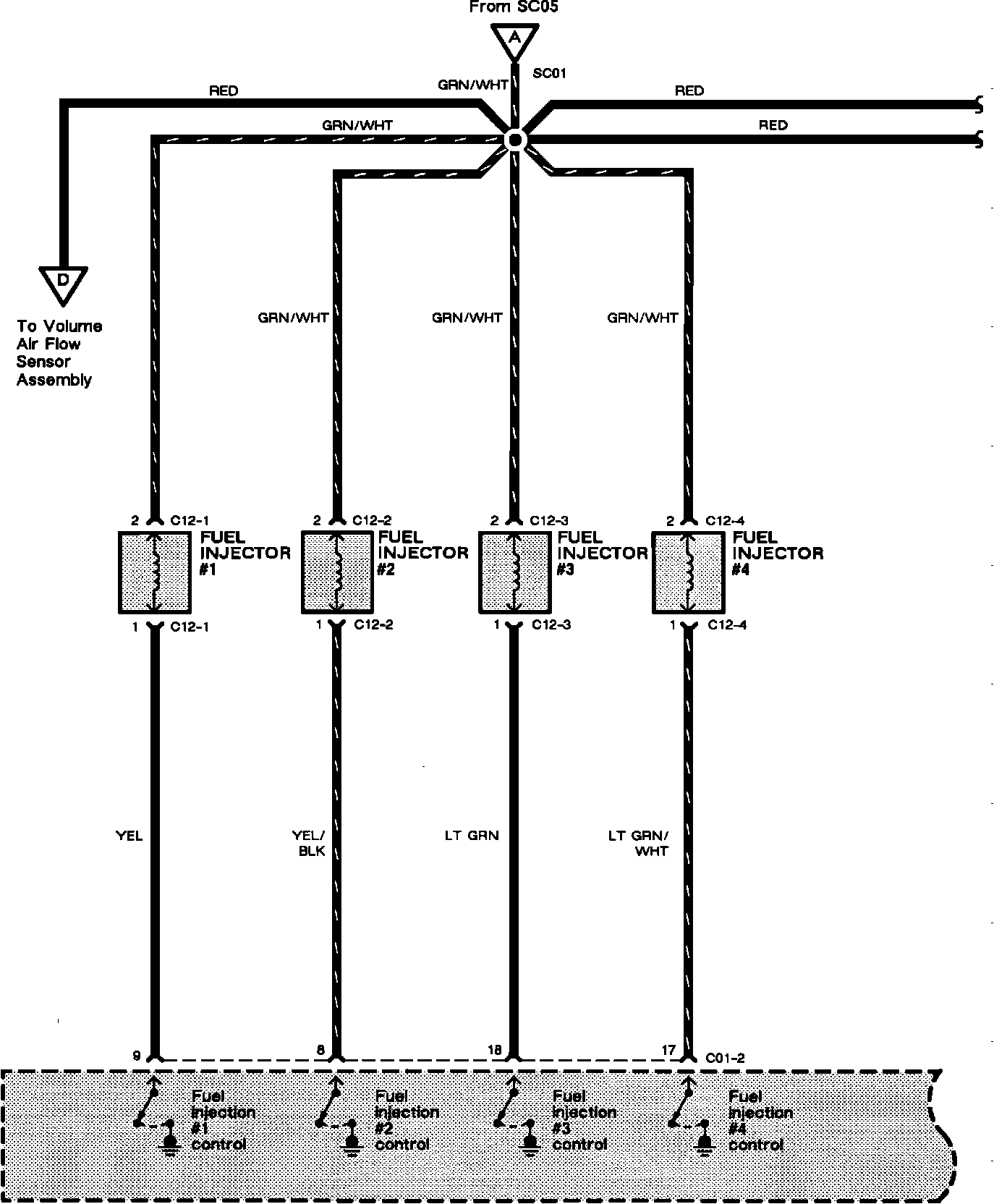

Multi-port Fuel Injection:

PART 8 OF 8

Multi-port Fuel Injection:

For further information refer to CHASSIS ELECTRICAL DIAGRAMS
