Home
>>
Hyundai
>>
1992
>>
Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
Emission Control Systems: Locations

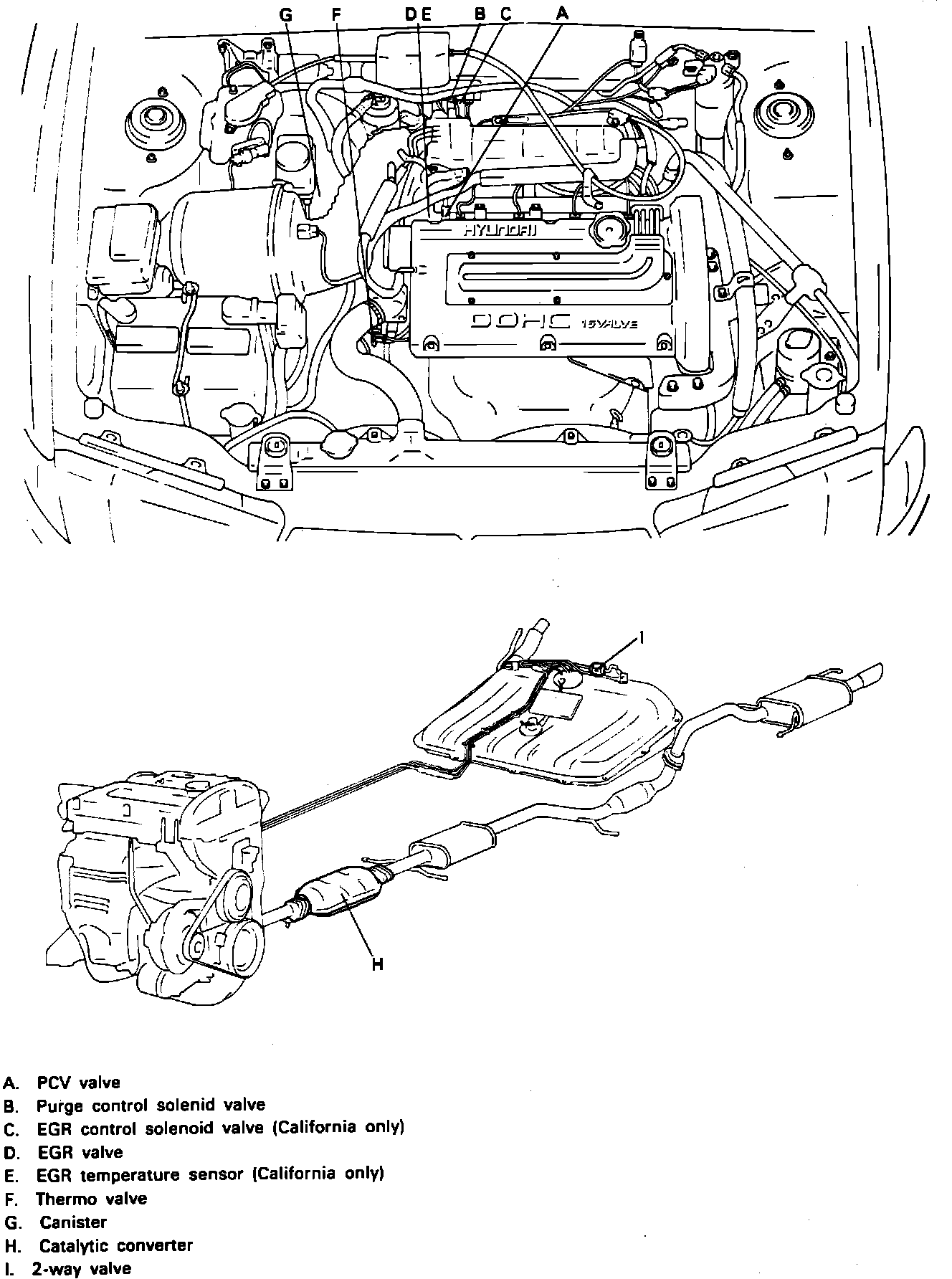

Component Locations:
Component Locations:

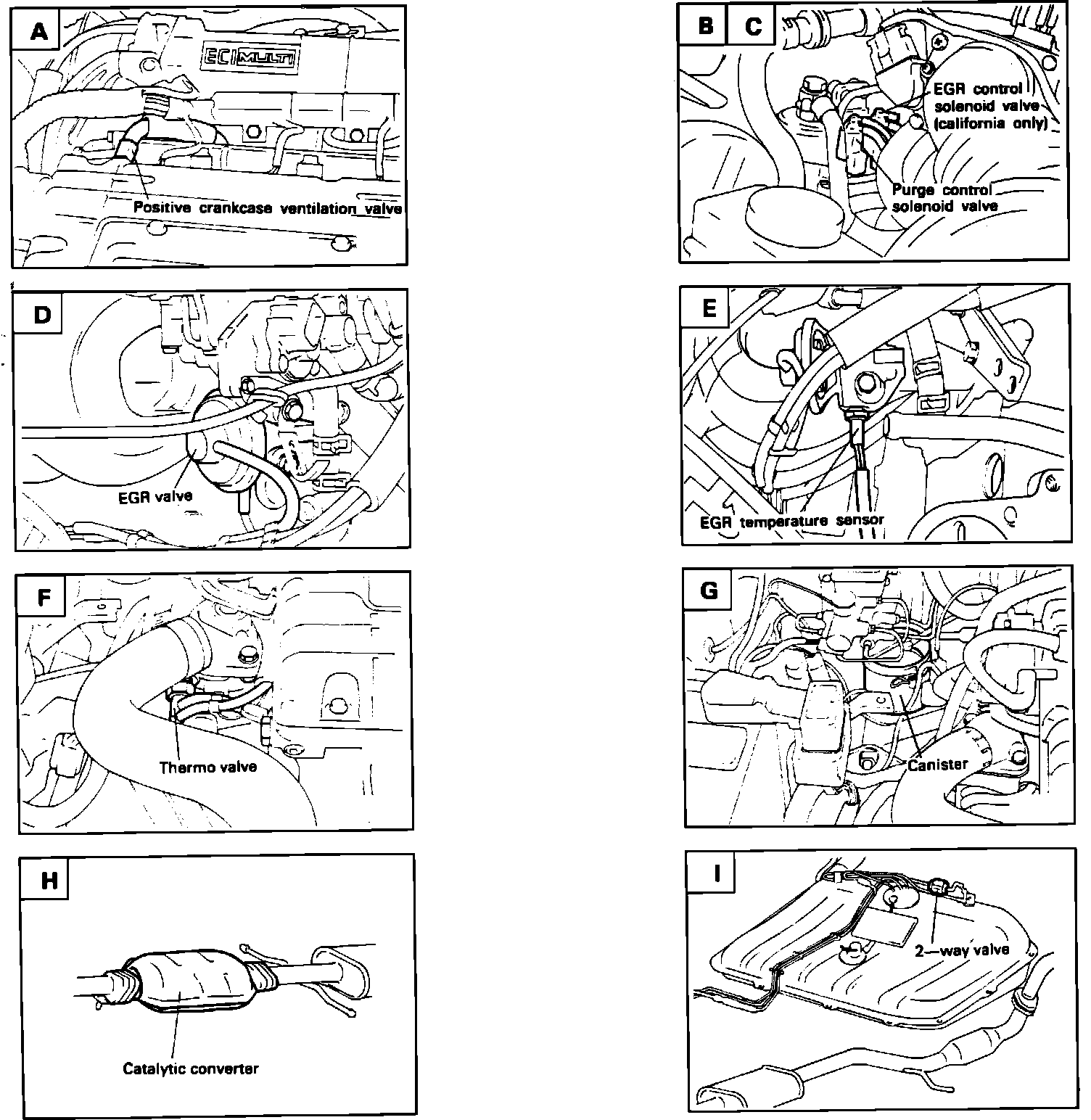

Emissions component locations
Detailed Component Locations - Electronic Control Unit:
ECU location
