Home
>>
Hyundai
>>
1992
>>
Scoupe L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E10 - E31
E10 - E31

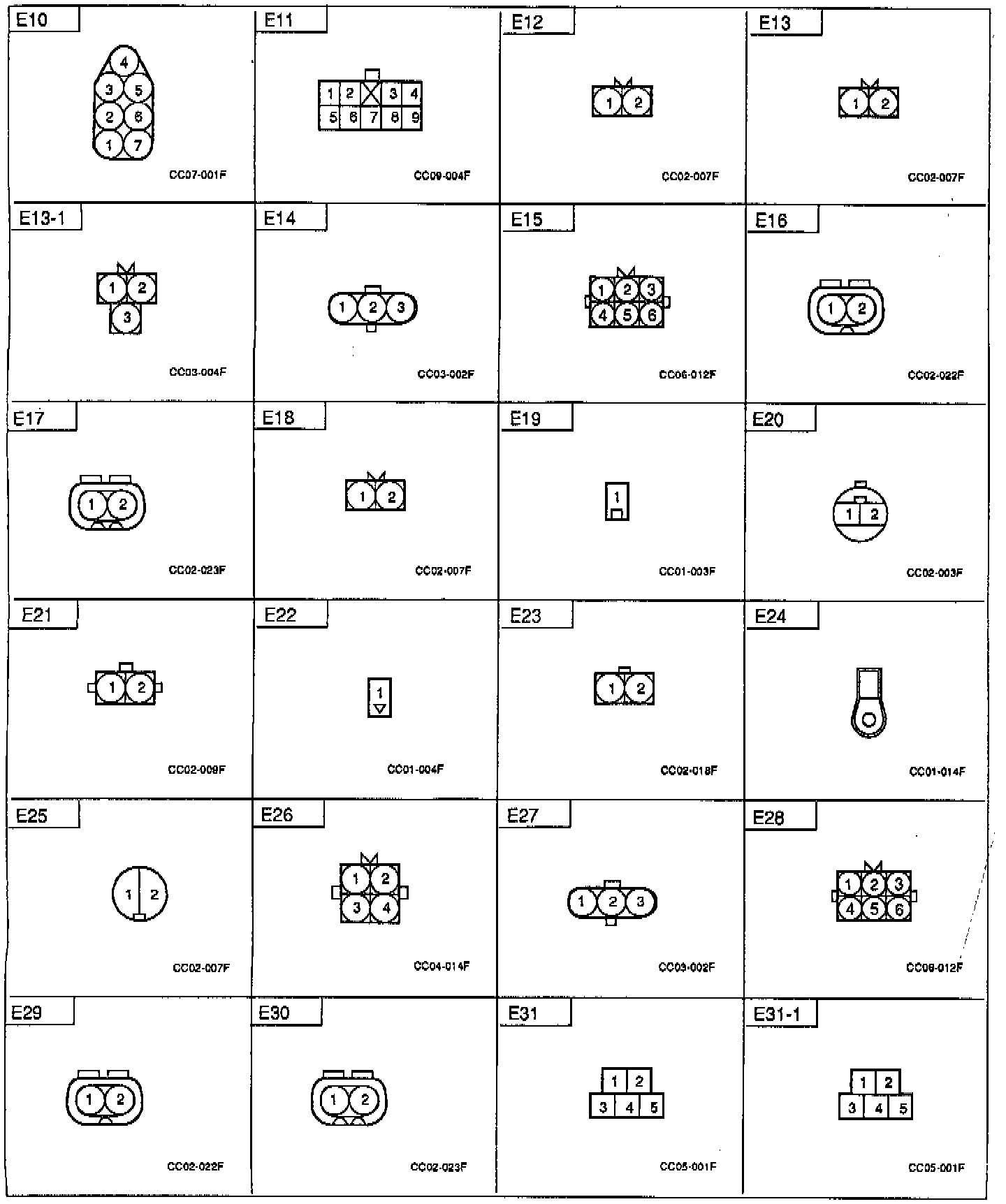

Connector Identification: E10 Thru E31-1:
