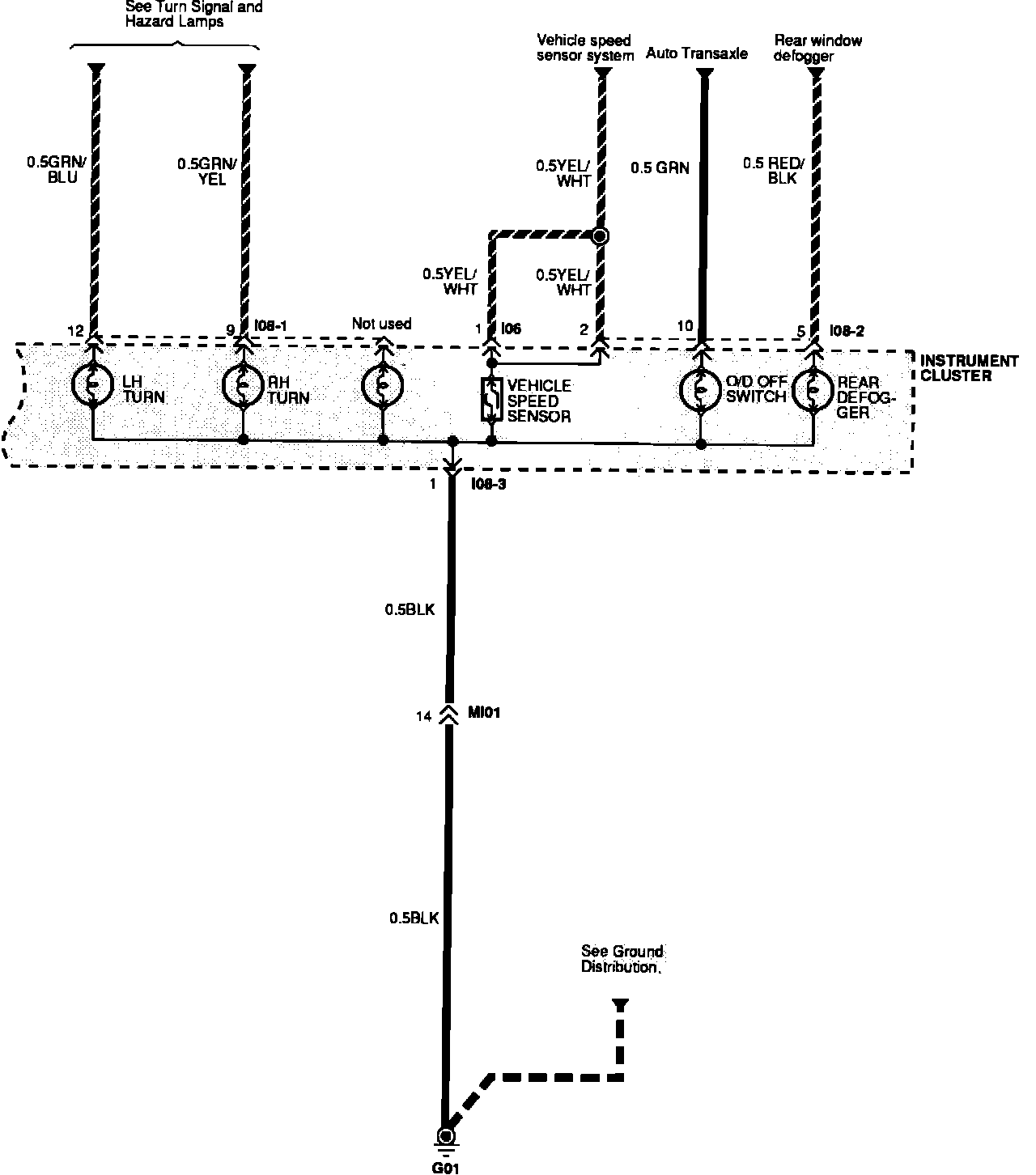

Transmission Mode Indicator - A/T

Indicators. Vehicle Speed Sensor, Over Drive Off Switch, Rear Defogger, LH And RH Turn:
