Malfunction Indicator Lamp
Malfunction Indicator Lamp

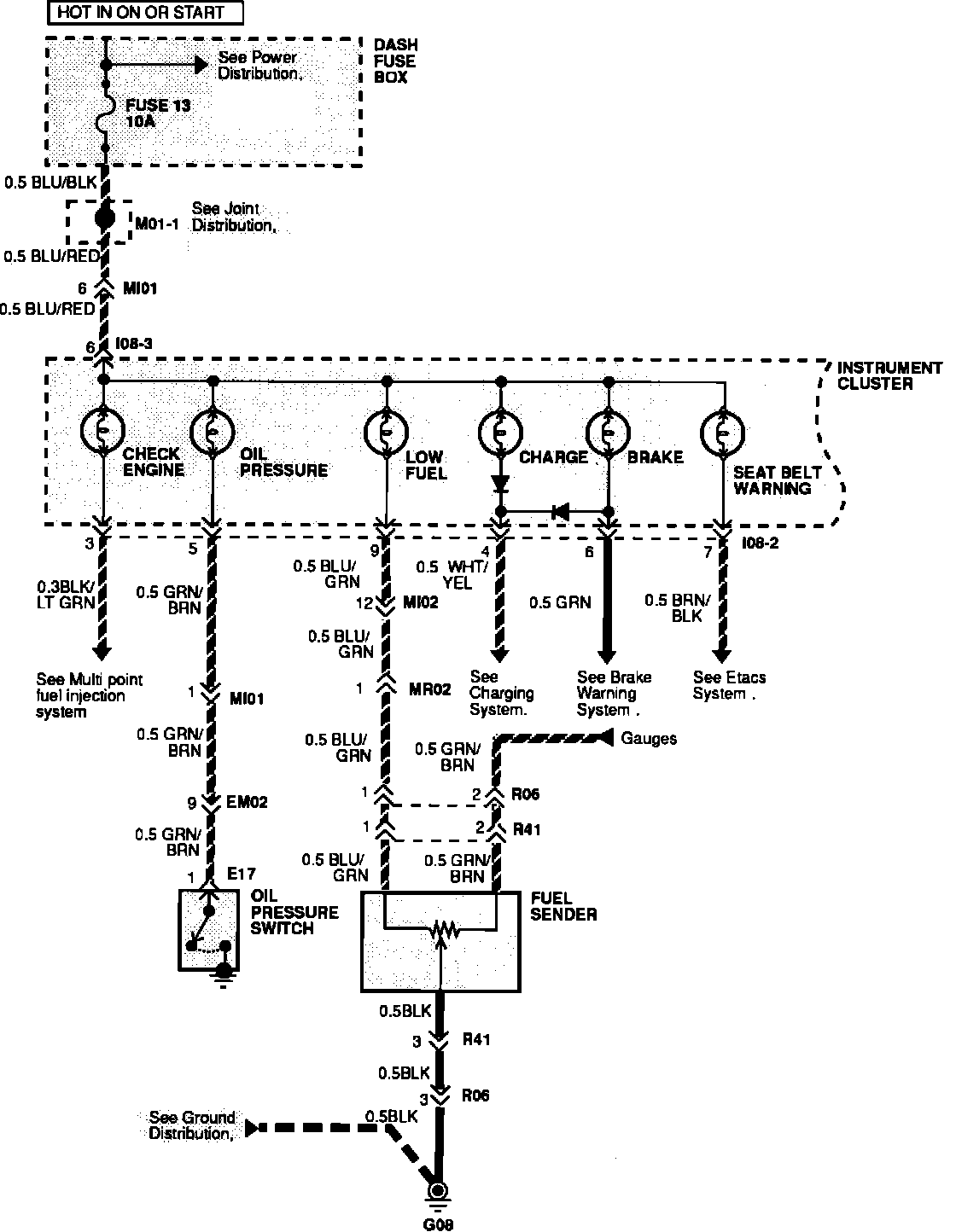

Indicators. Check Engine, Oil Pressure, Low Fuel, Charge, Brake And Seat Belt Warning:
