RH

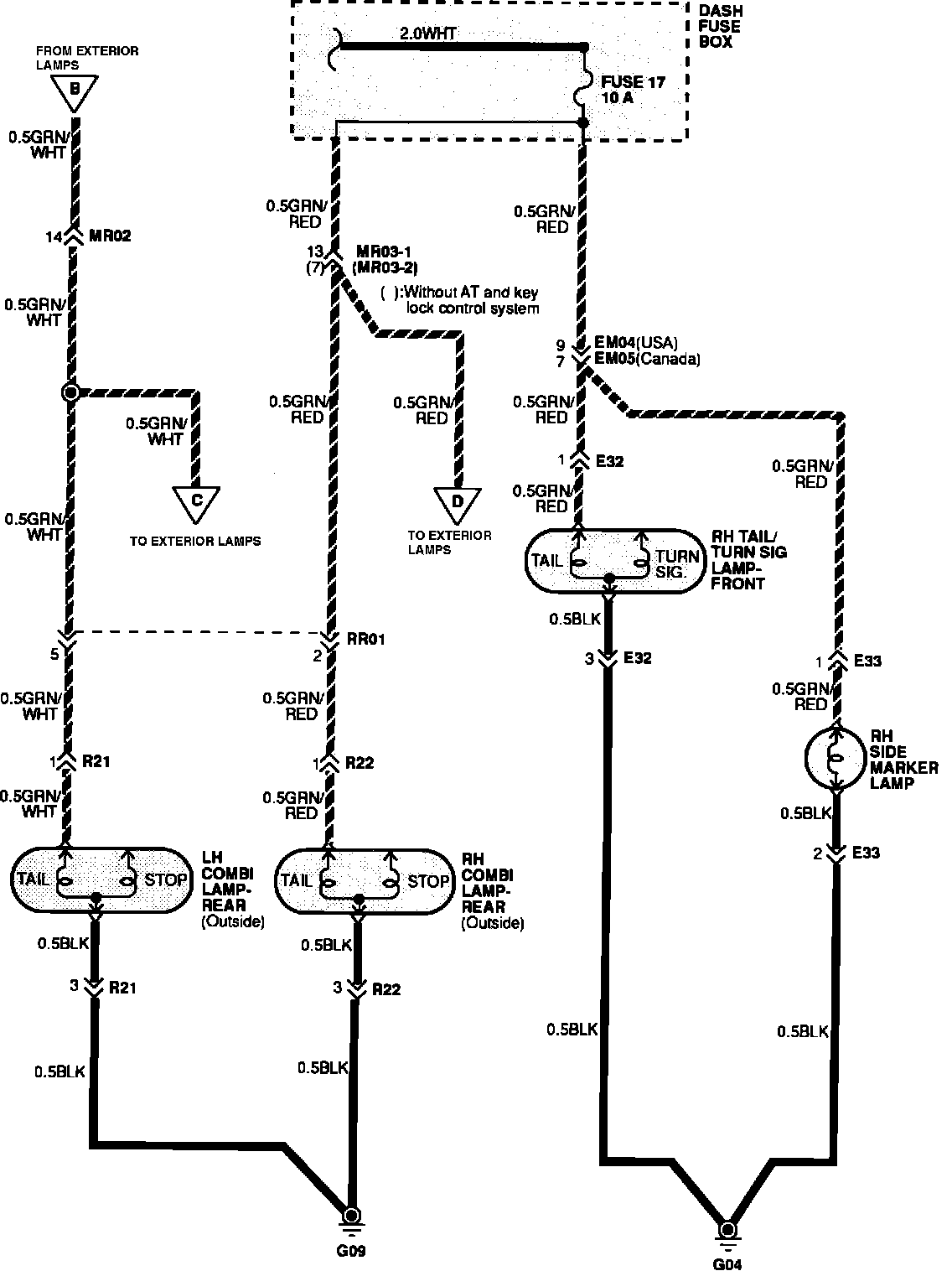

Exterior Lamps. RH Turn Signal, RH Side Marker, RH And LH Combination Lamp:

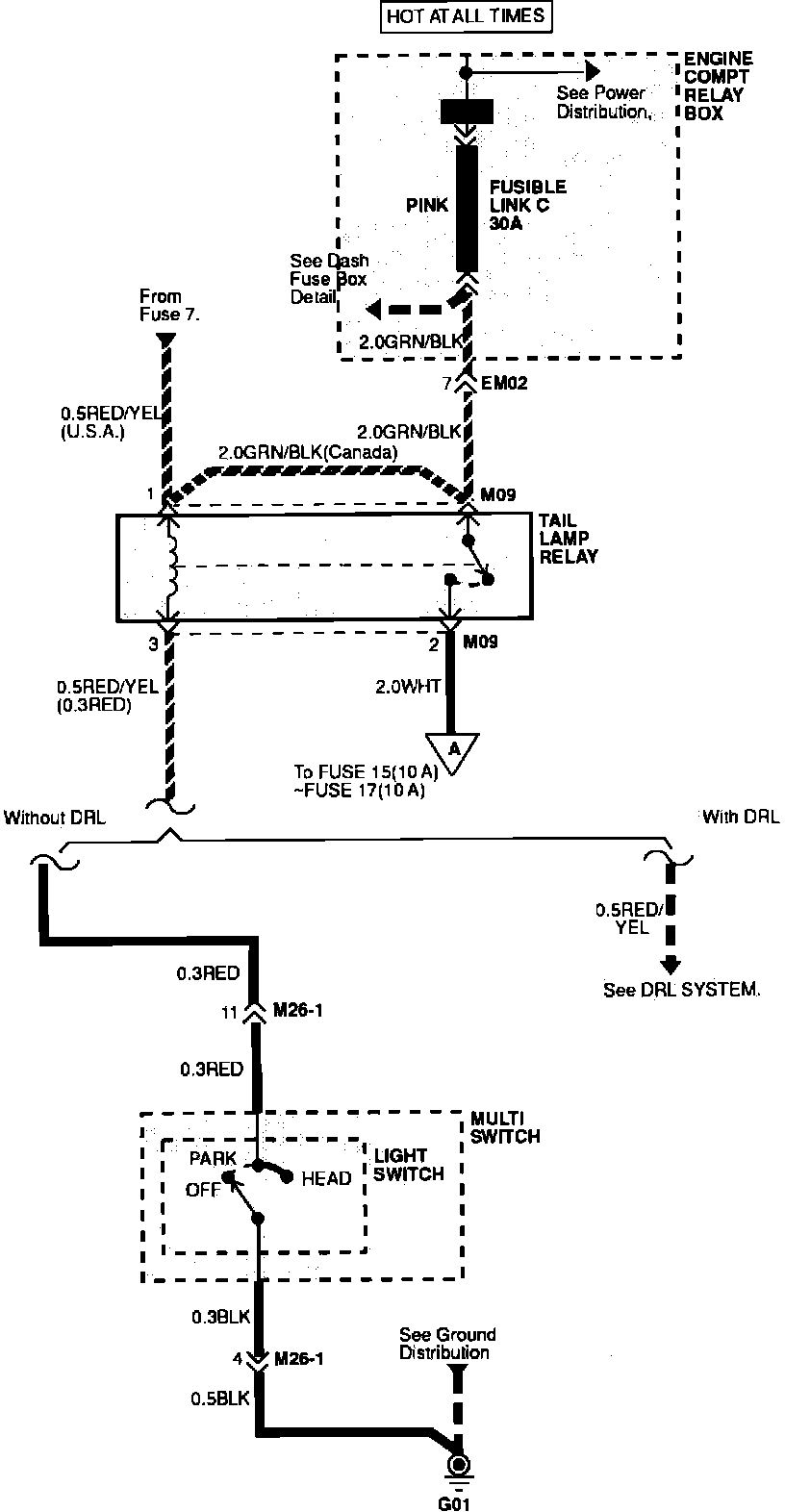

Exterior Lamps. Tail:
