Electrical Diagrams

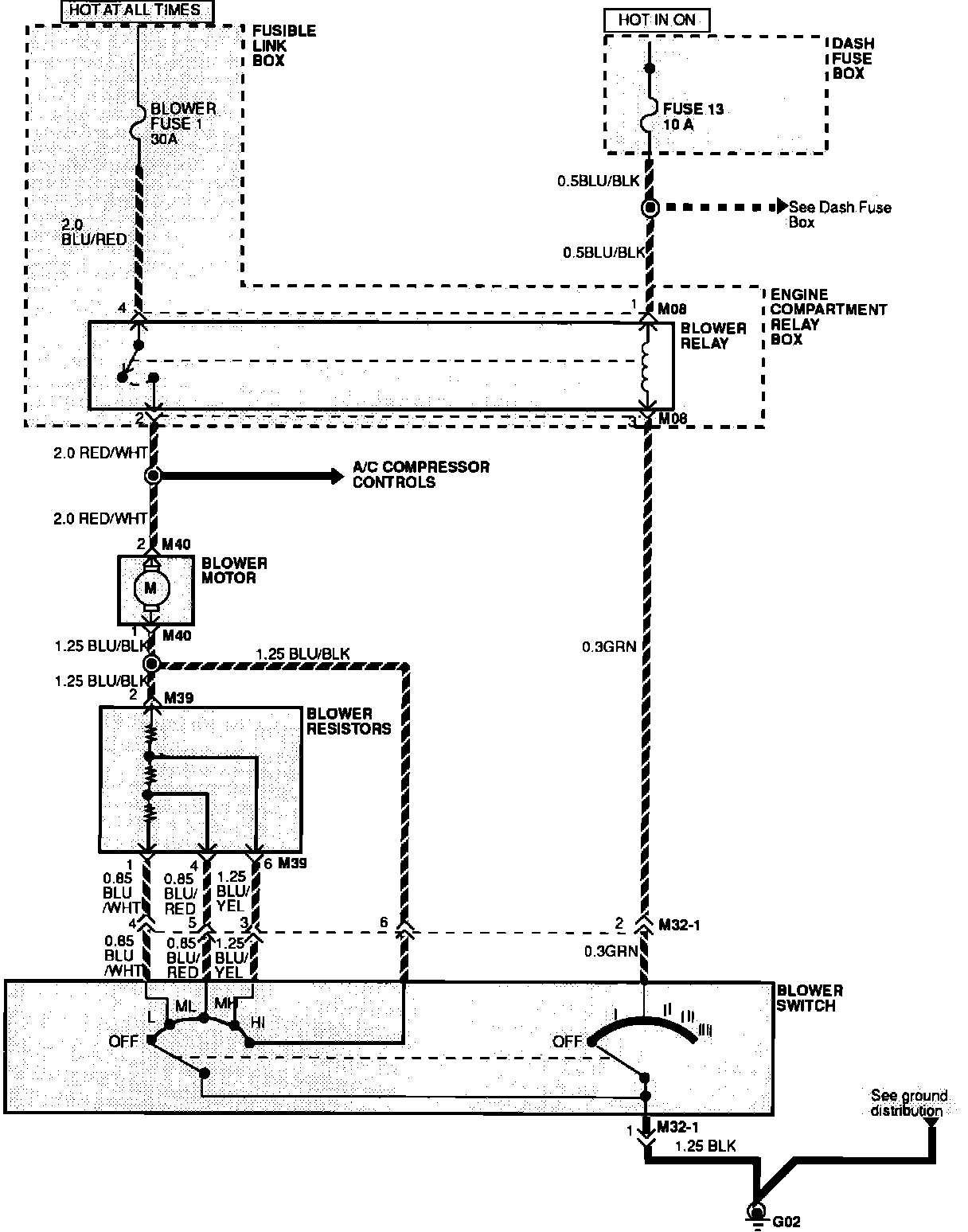

Air Conditioning. Blower Controls:

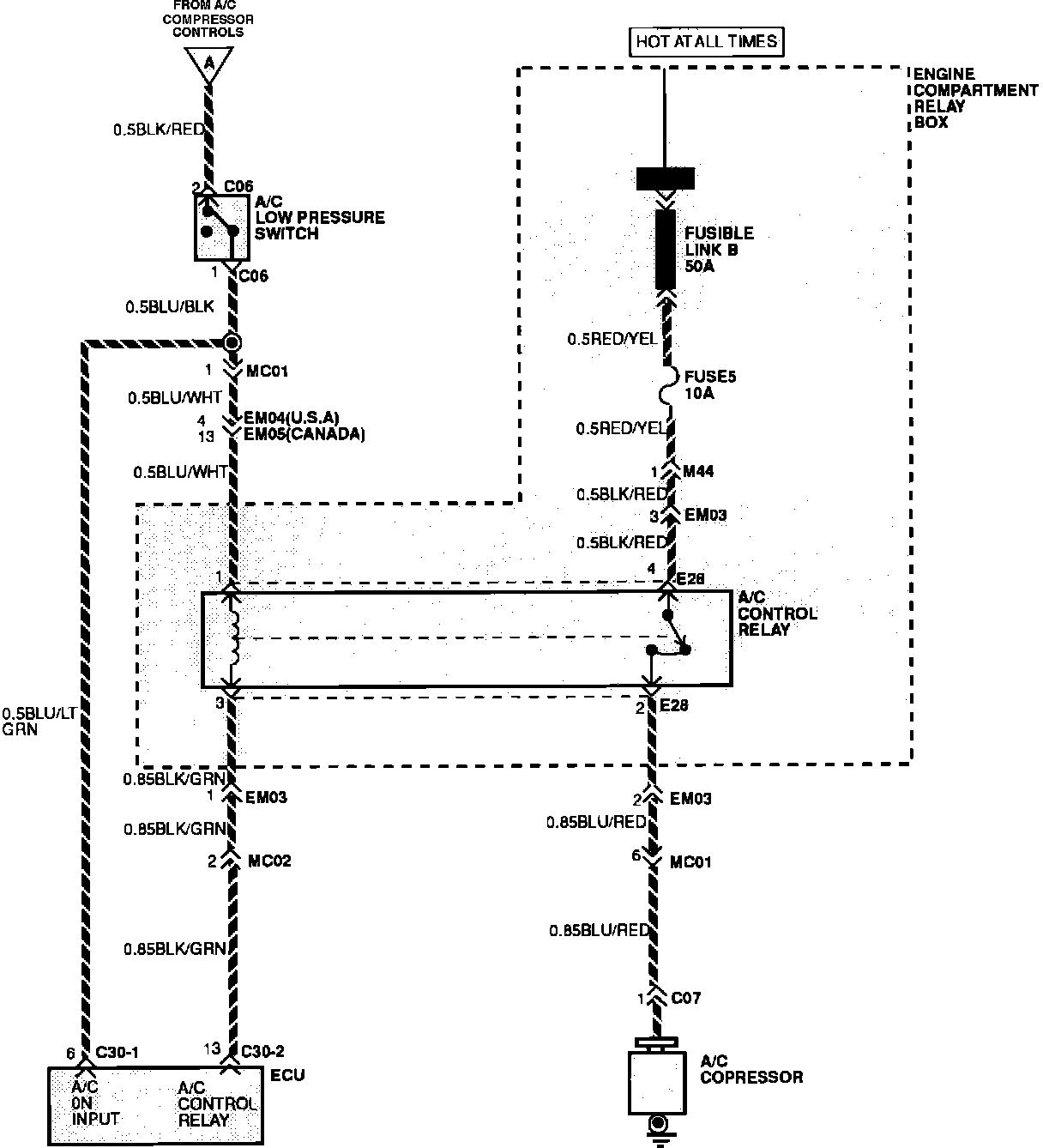

Air Conditioning. Compressor Controls:

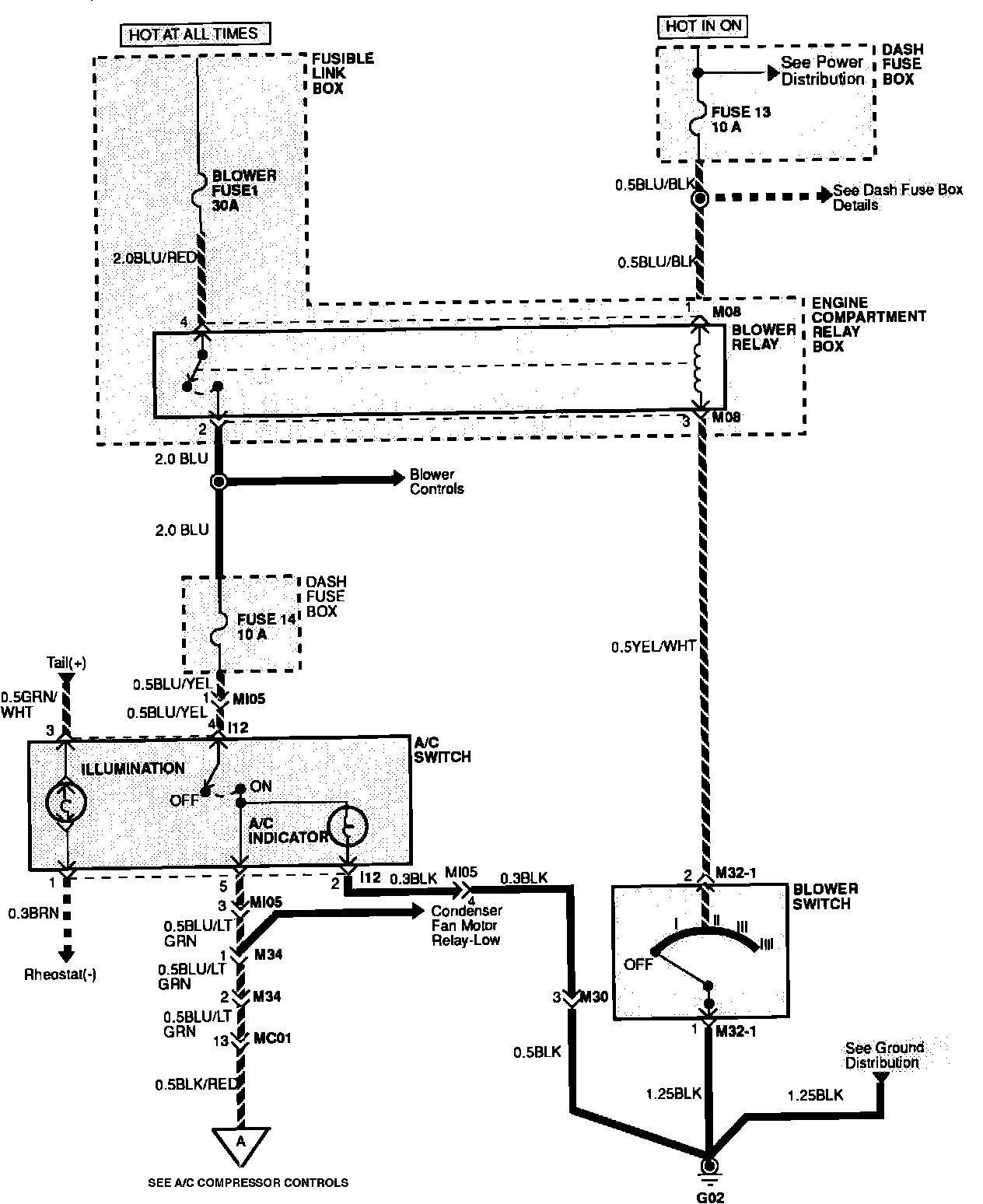

Air Conditioning. Compressor Controls:
