Scoupe L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connector Locations by Number
>>
Connectors M02 ~ M14
Connectors M02 ~ M14

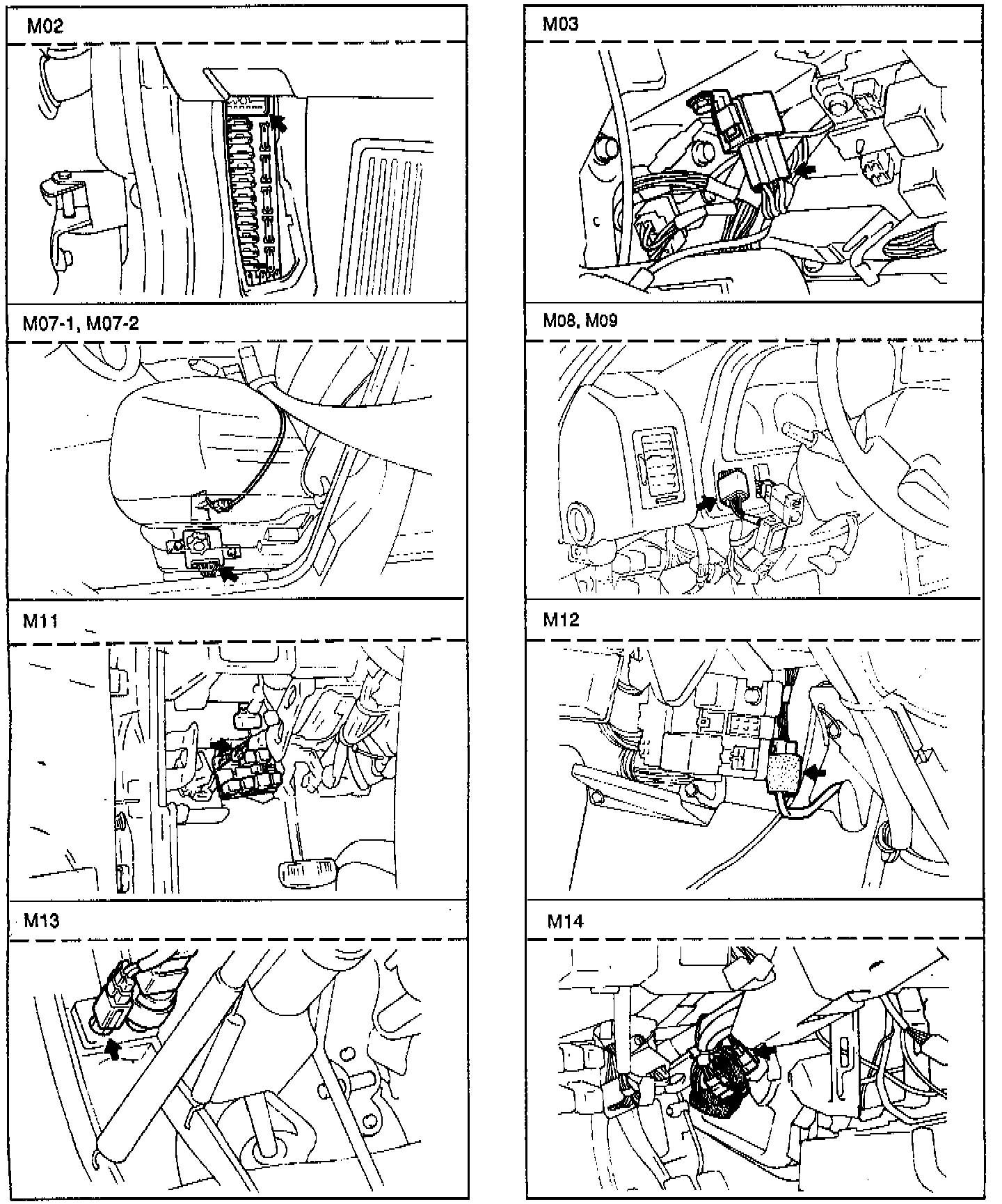

Component Locations: M02 Thru M14:
